The hydrogenation of maleic anhydride (MA) is an important reaction for the production of valuable intermediates such as succinic anhydride (SA) and γ-butyrolactone (GBL) [1-5]. The hydrogenation of MA to yield such intermediates has been investigated at temperatures of 100-200 ℃ over a variety of catalysts, which include those based on noble metals, such as Pd/Al₂O₃ [6], Ru complexes [7], Ru/C [8], and Au/TiO₂ [9]. Noble metal-based catalysts are highly active for the MA hydrogenation but relatively expensive. Cheaper Cu-and Ni-based catalysts have, therefore, attracted much attention [10, 11]. Various supported Cu catalysts, such as Cu/SiO₂[1], Cu/ZrO₂ [3] and Cu-Ce-Al₂O₃ [12], favored the formation of GBL during longer reactions under higher temperatures (200-260 ℃). Compared with the Cu-based catalysts, those that were Ni-based showed a higher catalytic efficiency in the low-temperature hydrogenation of MA [13]. Ni-based catalysts, such as Ni/CeO₂ [4], Ni/SiO₂ [13], Ni/H-BEA [14], Ni/TiO₂ [15], Ni/Al₂O₃[16], and Ni/SiO₂-Al₂O₃ [17], have generally been investigated at temperatures of 170-220 ℃. The main disadvantages of the supported Ni catalysts include high Ni-loading, and deactivation of the catalyst at high reaction temperatures [10, 13-20]. Moreover, Bertone et al. [21] investigated the Cu-modified Ni/SiO₂-Al₂O₃ catalysts and found that the Ni⁰ active species exhibited high catalytic activity, but they observed deactivation during 3 h of testing. Therefore, it is highly desirable to develop novel Ni-based catalytic systems with enhanced activity and stability for the hydrogenation of MA at low temperatures.

It is well known that spinel-type oxides such as NiAl₂O₄ may be employed as a catalyst precursor for various catalytic reactions. Spinel-derived Ni/Al₂O₃ catalysts exhibited good catalytic activity and stability during methane reforming and the hydrogenation of benzene because the metallic Ni species were well dispersed [22]. However, little work focusing on catalysts derived from spinel Ni composites in the hydrogenation of MA has been reported.

Herein, therefore, we report on a series of spinel-derived catalysts prepared with varying Ni content. The effects of Ni content and dispersion, particle size and reduction degree on the catalytic activity in the hydrogenation of MA are investigated. Under optimized preparation and reaction conditions, Ni(5%)/Al₂O₃ exhibited the highest activity during the low-temperature hydrogenation of MA.

Pseudoboehmite (Shangdong City Star Petroleum Chemical Technology Co. Ltd., China) was calcined at 750 ℃ for 3 h and used as the Al₂O₃ support. Ni/Al₂O₃ catalysts with (2.5, 5.0 and 7.5) wt% Ni were prepared by the wet impregnation method. A typical procedure involved 2.8 mL (2.5% Ni), 5.6 mL (5.0% Ni) or 8.4 mL (7.5% Ni) of 0.32 mol/L aqueous solution of Ni(NO₃)₂·6H₂O being added to a suspension containing 2 g of Al₂O₃ and 32 mL of H₂O. The mixture was then stirred for 12 h at room temperature. After impregnation, water in the mixture was removed using a rotary evaporator operating at 70 ℃. The samples were dried at 120 ℃ for 12 h and then calcined at 750 ℃ for 3 h.

Elemental analysis was performed by a Thermo Elemental IRIS Intrepid inductively coupled plasma atomic emission spectrometer (ICP-AES). N₂ physisorption experiments were carried out with a Quantachrome Quadrasorb S1 apparatus. Powder X-ray diffraction (XRD) patterns were obtained on a Bruker D8 Advance X-ray diffractometer using Cu K_α1 radiation (l = 0.15406 nm) operated at 40 eV and 40 mA. X-ray photoelectron spectroscopic (XPS) experiments were carried out using a Perkin-Elmer PHI 5000C ESCA system. H₂ temperature-programmed reduction (H₂-TPR) and CO temperature-programmed desorption (CO-TPD) were performed using a Micromeritics Chemisorb 2720. UV-Vis DRS spectra were obtained from a JASCO UV550 UV-Vis absorption spectrometer. The FT-IR spectra were recorded by a Nicolet Nexus 470 infrared instrument using KBr discs. ²⁷Al MAS NMR spectra were acquired using a Bruker Advance DSX400 spectrometer.

The MA hydrogenation was performed in a fixed-bed reactor. In a typical experiment, catalysts (0.25 g, 60-80 mesh) were loaded into the center of the reactor tube between two silica sand layers and activated in situ by a flow of 5% H₂-95% Ar (50 mL/min) at the desired reduction temperature (650-750 ℃) for 2 h. After reduction, the reactor was cooled to the selected reaction temperature (100-160 ℃) and the feed (15 wt% MA dissolved in GBL) was continuously introduced into the reactor by a syringe pump. Varying the mass of catalyst while holding the feed flow rate constant provided different values of weighted hourly space velocity (WHSV), for which reactions were carried out at 120 ℃. Products were collected at intervals of 1 h and analyzed by gas chromatography (GC) using a HP-5 capillary column and a flame ionization detector. The conversion of MA and the selectivity to SA and GBL were calculated as follows:

(1)

(2)

where MA_in, MA_out and Product_{i, out} represent the molar concentration of the reactant at the inlet and the outlet, and that of the products at the outlet, respectively.

Textural properties of the calcined catalysts and the Al₂O₃ support are listed in Table 1. The total Ni-loading determined by ICP-AES was consistent with the calculated values. The surface area and pore volume of the Al₂O₃ support were 214 m²/g and 1.14 cm³/g, respectively. For the calcined catalysts, the surface area and pore volume decreased with increasing Ni content, which may have been caused by the incorporated Ni species [23].

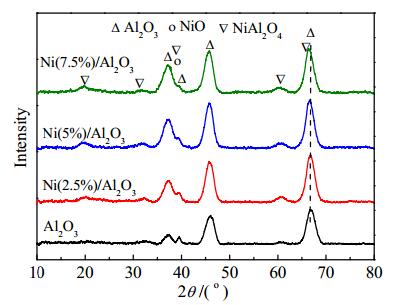

The XRD patterns of the Al₂O₃ support and the calcined catalysts are shown in Fig. 1. The diffraction peaks at 2θ = 37.4°, 39.7°, 45.8° and 67.3° may be attributed to (311), (222), (400) and (522) diffractions of γ-Al₂O₃ (PDF No. 04-0880), respectively [5, 24-26]. Compared with the diffraction pattern of Al₂O₃, three new peaks at 2θ = 19.1°, 31.6° and 60.2° were observed in the calcined catalysts and attributed to (111), (220) and (511) diffractions of spinel NiAl₂O₄ (PDF No. 10-0339), respectively, suggesting the formation of spinel NiAl₂O₄. Moreover, the peak at 2θ ≈ 60° slightly shifted to a higher value (60.2°) for all the calcined catalysts, indicating the formation of the defect NiAl₂O₄phase [27, 28]. The diffraction peaks at 37°-39° may be attributed to NiO and/or NiAl₂O₄ phases which could not be definitely distinguished [27]. NiAl₂O₄ also exhibited diffraction peaks at 2θ ≈ 66° though careful analysis suggested that these differed from peaks in this vicinity exhibited by the Al₂O₃ support. Increasing the Ni-loading from 2.5% to 7.5% slightly decreased the diffraction peaks, perhaps because of the formation of NiAl₂O₄ and because the ionic radius of Ni is greater than that of Al [28].

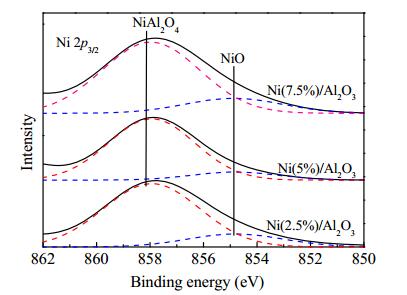

The XPS results for the calcined catalysts are shown in Fig. 2. The observed peaks can be interpreted as a combination of two Ni 2p_3/2 peaks with binding energies of ~854.9 and ~858.2 eV, which can be assigned to the Ni²⁺ in NiO and Ni²⁺ in NiAl₂O₄, respectively [29, 30]. The closer proximity of the observed peaks to 858.2 eV indicated that the main phase was spinel NiAl₂O₄.

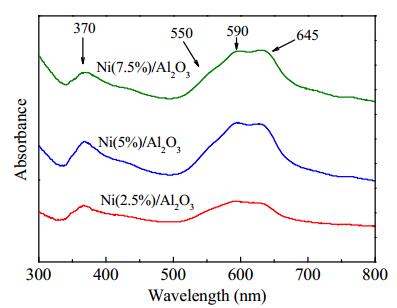

The near-identical UV-Vis DRS results for the calcined catalysts are shown in Fig. 3. The band at 370 nm can be attributed to the octahedral coordinated Ni²⁺ species in the NiO lattice, while the bands at 590-645 nm and a shoulder at 550 nm are associated with the tetrahedral coordinated Ni²⁺ species in the NiAl₂O₄ lattice [31, 32]. Moreover, based on the relative intensity of the absorption bands at 550-645 nm and 370 nm, the tetrahedral Ni²⁺ ion content was found to be higher than that of octahedral Ni²⁺ ions.

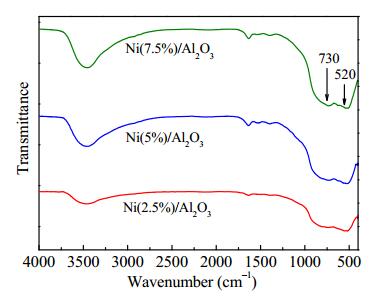

The FT-IR spectra of the calcined catalysts are shown in Fig. 4. The spinel's presence in the catalysts was indicated by the appearance of two bands typical of NiAl₂O₄ spinel at 520 and 730 cm^-1 [33], which are attributed to M-O (Ni-O, Al-O) stretching vibrations in octahedral and tetrahedral environments, respectively [34].

These characterization results suggest that the calcined Ni(2.5%)/Al₂O₃, Ni(5%)/Al₂O₃ and Ni(7.5%)/Al₂O₃ catalysts mainly comprised of a NiAl₂O₄ phase with a minor NiO phase.

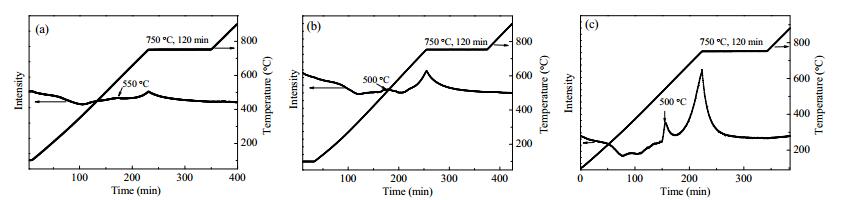

The results of the H₂-TPR analysis are shown in Fig. 5, where the three catalysts displayed a reduction shoulder at 500-550 ℃ and a main reduction peak at 750 ℃. However, the shoulder was much more pronounced for the Ni(7.5%)/Al₂O₃ (Fig. 5(c)) catalyst. Generally, the reduction peak at 750 ℃ is assigned to the reduction of NiAl₂O₄, while the peak at 500-550 ℃ is ascribed to the reduction of NiO, which has a strong interaction with the Al₂O₃ support [22, 31, 35]. For all the calcined catalysts, the H₂-TPR curve returned to the baseline level after treatment at 750 ℃ for 2 h and no peak was observed above 750 ℃. This indicated that the Ni species were fully reduced following 2 h at 750 ℃, in agreement with that reported by Numaguchi et al. [36].

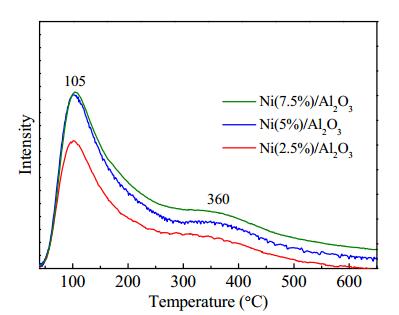

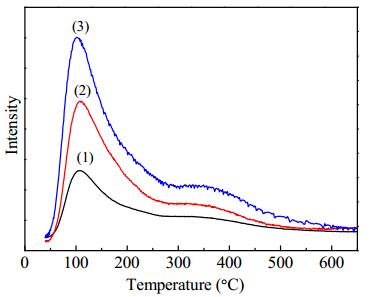

The CO-TPD results obtained for the catalysts following 2 h of H₂ reduction at 750 ℃ are shown in Fig. 6. Desorption peaks near to 105 ℃ (weakly chemisorbed CO) and 360 ℃ (moderately chemisorbed CO) were observed for all of the catalysts [37]. The area under the CO-TPD desorption peaks can be correlated with the amounts of metallic Ni species [37], and the amount of desorbed CO was found to increase with increasing Ni content. Ni-dispersion was calculated using the CO-TPD desorption peaks by assuming an equal surface stoichiometry of CO:Ni (Table 2) [5]. The calculated Ni-dispersion decreased with increasing Ni content, indicating that Ni species congregated at higher Ni-loadings. The CO chemisorption analysis was also used to produce the Ni particle size estimates of 8.0, 12.8 and 15.7 nm for the (2.5, 5.0 and 7.5)% Ni content, respectively. These findings were consistent with the XRD results (Table 2).

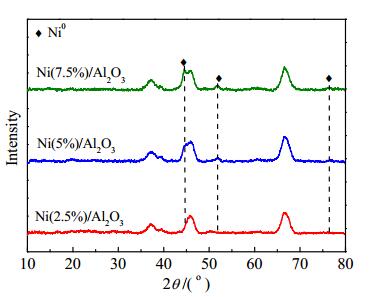

The XRD patterns of the reduced catalysts in Fig. 7 show the metallic Ni and the Al₂O₃ phases were observed but that no distinct diffractions corresponding to NiAl₂O₄ were detected. For the highest Ni content catalyst (7.5%), the diffractions observed at 2θ = 44.5°, 51.8° and 76.4° were attributed to (111), (200) and (220) of metallic Ni phases (PDF No. 04-0850), respectively. The results for the 5% Ni catalyst showed peaks in the same locations, but they were slightly broader and weaker, suggesting that the metallic Ni particle sizes were smaller. No metallic Ni phases were observed for the 2.5% Ni catalyst, which may have been because this sample exhibited the smallest Ni⁰ particle size and the lowest amount of metallic Ni species. The average particle sizes (Table 2), calculated from Ni(200) (2θ = 51.8°) diffraction peaks using the Scherrer equation, for the reduced (5.0 and 7.5)% Ni catalysts were ~12.5 and ~15.8 nm, respectively.

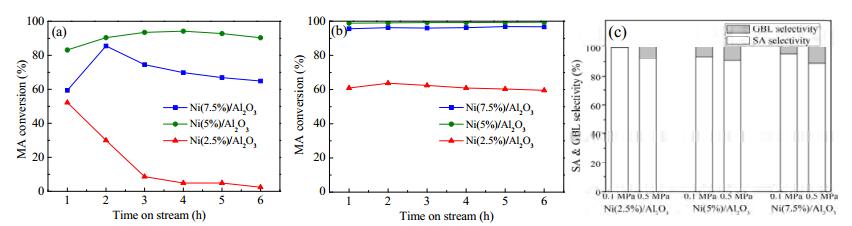

Fig. 8 shows the catalytic performance of the three catalysts under conditions of 120 ℃, 0.1 or 0.5 MPa of H₂ and WHSV (MA) = 2 h^-1. MA conversion generally increased with increasing H₂ pressure while the 5.0% catalyst showed the highest catalytic activity achieving a near-100% conversion of MA at 0.5 MPa of H₂. The relatively lower activity of the other catalysts was particularly notable during the lower H₂ pressure tests. The increase in catalytic activity between (2.5 and 5.0)% Ni samples may have been caused by an increase of Ni⁰ active sites. However, the large particle size of Ni⁰ observed for higher loading in the 7.5% Ni sample resulted in a decrease of hydrogenation activity. Therefore, both the amount and the particle size of Ni⁰ species impacted catalytic activity [4, 17]. It is noteworthy that Ni-loading is generally in the range of (7-10)% for supported Ni catalysts, such as Ni/CeO₂[4] and Ni/diatomite [20]. Indeed, Guo et al. [20] studied the effect of Ni-loading on MA hydrogenation over Ni/diatomite catalysts and found a 7% Ni-loading provided the highest catalytic activity.

The selectivities to SA and GBL shown in Fig. 8(c) highlight the main product was SA. The selectivity to GBL slightly increased with increasing H₂ pressure as this change promoted the hydrogenation of SA to produce GBL [10, 38].

The reduction temperature is known to significantly influence the physicochemical properties of the catalyst, including the degree of reduction of Ni²⁺ species and the size of Ni⁰ particles, and thus impact the catalytic activity [17]. The Ni(5%)/Al₂O₃ catalyst was selected as the basis for investigating the impact of the reduction temperature.

The second reaction step, the hydrolysis of SA to form GBL, produces H₂O as a by-product [39] which may react with MA to produce maleic acid. Thus, it was decided to maintain an operating temperature of over 100 ℃ to ensure any H₂O formed was removed from the system. Because Ni(5%)/Al₂O₃ showed high MA conversion at 120 ℃ with WHSV (MA) = 2 h^-1 even under atmospheric pressure, we decided to study the catalyst reduced by H₂ at different temperatures at low MA conversion with a high WHSV (MA) = 6 h^-1.

The Ni(5%)/Al₂O₃ catalyst samples reduced for 2 h at 650, 700 and 750 ℃ were denoted as NiAl₆₅₀, NiAl₇₀₀ and NiAl₇₅₀, respectively. H₂-TPR results of calcined and reduced catalysts were the basis of analysis. The reduction degree of NiAl₆₅₀, NiAl₇₀₀ and NiAl₇₅₀ was calculated according to the corresponding H₂-TPR peak area (Table 3) using the method described in the literature [40] and found to be (13.7, 39.6 and 90.6)%, respectively. The desorption peak area of CO-TPD was used to determine the amounts of metallic Ni species and Fig. 9 shows that this increased with reduction temperature. Given that Ni species were not completely reduced, the dispersion was then corrected by the reduction degree to give (19.0, 15.2 and 8.7)% for NiAl₆₅₀, NiAl₇₀₀ and NiAl₇₅₀, respectively. The corrected dispersion results were consistent with those obtained by XRD which suggested that the Ni⁰ particle size increased at higher reduction temperatures (Fig. 10).

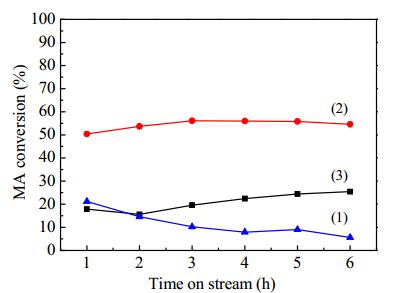

The impact of reduction temperature on MA conversion over Ni(5%)/Al₂O₃ presented in Fig. 11 shows that the NiAl₇₀₀ catalyst exhibited the highest catalytic activity. A previous study suggested that both the amount of Ni⁰ and its particle size influenced the catalytic activity during the MA hydrogenation [38]. Here, the NiAl₆₅₀ catalyst exhibited the lowest catalytic activity, perhaps owing to having the least Ni⁰ active sites. Conversely, although the NiAl₇₅₀ catalyst contained more Ni⁰ than the NiAl₇₀₀ sample, the NiAl₇₀₀ catalyst had smaller Ni⁰ particles which is thought to explain the NiAl₇₀₀ catalyst's higher catalytic activity.

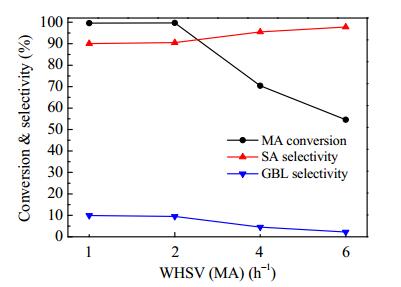

The effect of WHSV on catalytic performance was investigated at 120 ℃ and 0.5 MPa of H₂ over Ni(5%)/Al₂O₃ reduced at 700 ℃ for 2 h (Fig. 12). The conversion of MA decreased with increasing WHSV and nearly 100% conversion of MA was achieved at WHSV (MA) = 1 and 2 h^-1. SA is an intermediate product that is produced by the hydrogenation of MA and then hydrolyzed to give GBL, the production of which is known to be favored at low WHSV values [38]. Near-100% conversion of MA with ~90% selectivity to SA was achieved at WHSV = 2 h^-1.

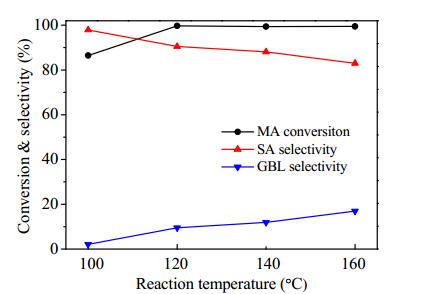

The effect of reaction temperature (100-160 ℃) was investigated at 0.5 MPa of H₂ with WHSV = 2 h^-1 over Ni(5%)/Al₂O₃ reduced at 700 ℃ for 2 h (Fig. 13). Both the conversion of MA and the selectivity to GBL increased with increasing temperature, which is consistent with results reported by Huo et al. [15], who reported a nearly 92% SA yield achieved over Ni/TiO₂ at 220 ℃. This compared with a nearly 90% SA yield at 120 ℃ in the present work. Previous work suggested that small Ni⁰ particle sizes were responsible for high catalytic activity, which may explain the present results for the spinel-derived catalysts with highly dispersed, small Ni⁰ species [21].

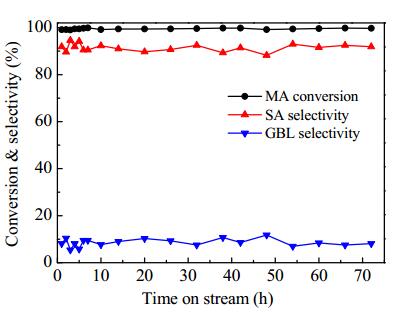

Catalytic stability was investigated using the Ni(5%)/Al₂O₃ catalyst reduced at 700 ℃ for 2 h under the optimized reaction conditions of 120 ℃ and 0.5 MPa of H₂, which produced an SA yield of nearly 90% (Fig. 14). The chemical environment of Al atoms in the fresh and used catalysts was investigated by ²⁷Al MAS NMR experiments (Fig. 15). Resonances at d = 63 and 6 ppm were assigned to the tetrahedral and octahedral coordinated Al species, respectively [41]. The relative population of Al species showed that the ratio of tetrahedral to octahedral Al species in the fresh and used catalysts was similar (~0.4), indicating that the support underwent no structural transformation. Consistent with these results, the XRD analysis (Fig. 16) also confirmed that the structure of the used Ni/Al₂O₃ was unchanged following the reaction.

A series of Ni/Al₂O₃ spinel-derived catalysts with different levels of Ni-loading (2.5, 5 and 7.5) wt% were synthesized and studied for the low-temperature hydrogenation of MA to produce SA. Optimized preparation conditions (5% Ni-loading, reduction at 700 ℃ for 2 h) yielded a catalyst that possessed a large amount of well-dispersed, small Ni⁰ particles yielding high catalytic activity under optimized reaction conditions (120 ℃ and 0.5 MPa of H₂). Long-term stability for over 72 h was achieved, with a constant near-100% conversion of MA and ~90% selectivity to SA.
