With depletion of fossil fuels and exacerbation of haze weather and globe warming, sustainable development has been highlighted by many governments [1, 2]. Production of fuels and chemicals from bioresources is reasonable and practicable [3–5]. Lignocellulose is an inedible, almost inexhaustible [6], and consistently renewable bioresource that can be used to produce energy and chemicals. As the second principal component of lignocellulose, lignin can be used as a precursor for fuels and aromatic chemicals because it is the only naturally occurring aromatic polymer [7]. However, the potential of lignin has not been fully realized. Most lignin is directly burned in alkali recovery systems. Only a small amount of lignin is separated and used to produce dispersants or adhesives, and an even smaller amount is used to produce value-added chemicals [8–10]. With the development of catalytic technologies, preparation of bulk or fine aromatics from lignin is essential and perhaps the most promising use of lignin, and this ambitious objective has attracted tremendous research interest [11–13].

Because of its stable three-dimensional network structure and the robust complicated chemical associations among the monolignans, it is still a great challenge to selectively convert lignin to value-added chemicals [11, 14]. Some achievements have been made in recent years [15–24], and many scientists have studied hydrogenolysis of C–O linkages in lignin with various hydrogen sources over metal catalysts [17, 25–28]. Song et al. [15] used a Ni/C catalyst to depolymerize native lignin in methanol dispersant. They achieved high conversion and selectivity, which opens up a new pathway for lignin transformation and has methodological significance. Ma et al. [16] completely ethanolyzed Kraft lignin over an α-MoC_1−x/AC catalyst in pure ethanol at 280 ℃ to give low molecular mass chemicals. Konnerth et al. [29] used bimetallic Ni₇Au₃ nanoparticles to hydrogenolyze a lignin model compound and organosolv lignin in alkaline surroundings. Various acids have also been used as catalysts to produce phenols from alkaline lignin [20, 30].

To take full advantage of lignin and prepare valuable multi-substituted benzenes or their derivatives with reasonable selectivity, a rational catalytic process to selectively cleave the linkages between the monolignans needs to be developed. Nevertheless, owing to the coexistence of complex C–O and C–C bonds and the complicated combinations in the macromolecular structure, it is very challenging to directly investigate the mechanism of the decomposition process of technical lignin. It is more reasonable to first investigate the cleavage mechanisms of various lignin model compounds with specific linkages, and then consider extension from micro-to macromolecule systems [15, 31] to finally achieve the objective of rational design of catalytic materials and development of the catalytic process for decomposition of technical lignin to valuable aromatics. Among the linkages of monolignans, the β-O-4 linkage accounts for the majority of the linkages in natural lignin and even in some technical lignins, such as lignin obtained from bioethanol refinery where β-O-4 linkages are still largely preserved [33, 34]. 2-Phenoxyacetophenone (2-PAP) was selected as the model for the β-O-4 linkage because this linkage represents some partially oxidized lignins [11, 35, 36] and the amount of partially oxidized lignin has increased as C–C bond cleavage technology roadmaps have recently emerged [37–40].

Polyoxometalates (POMs) are widely applied as acid catalysts [41]. Recently, several POMs have been used for homogeneous or heterogeneous catalytic conversion of lignin or its model compounds [30, 42]. Soluble lignin and model compounds have also been oxidized to benzoquinones over several soluble POM catalysts with H₂O₂ as the oxidant [42]. Li and co-workers [30] used soluble and supported H₄PW₁₂O₄₀ catalysts to depolymerize Kraft lignin to phenols with a high yield of 67 mg/g. Park et al. [43] used a cesium-exchanged phosphotungstic acid (Cs-PW) catalyst to cleave an α-O-4 model compound to aromatics. Although some great achievements have been made in hydrogenolysis and acidolysis cleavage of the β-O-4 ether bond in lignin or its model compounds, the effect of cooperation or competition between the acidity and redox properties of the catalyst on the cleavage and its mechanism are not clear.

Herein, several Cs-substituted POMs were selected to systematically investigate the effects of the acidity and redox properties of the acid catalyst on the cleavage of the lignin model compound 2-PAP. A comprehensive hydrogen transfer and acid-catalyzed mechanism are proposed based on the catalytic performance over these catalysts. These results will be useful for understanding the reaction phenomena and designing a practicable process for decomposition of technical lignin.

The model compound 2-PAP was purchased from TCI Chemicals (Shanghai, China). Anhydrous ethanol (AE), phenol, acetophenone, H₃PMo₁₂O₄₀·xH₂O, H₃PW₁₂O₄₀·xH₂O, H₄SiW₁₂O₄₀·xH₂O, and cesium nitrate (CsNO₃) (all of analytical purity) were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). They were used as received without further purification.

Cs-substituted POMs were prepared by the ion exchange method described by Park et al. [44]. The phase structures of the POM salts were determined by powder X-ray diffraction (XRD), Fourier transform infrared (FT-IR) spectroscopy, and Raman spectroscopy (Figs. 1–3). These characterizations of the Cs-POMs verified that crystals were successfully prepared with the phase of the Keggin structure [10, 45–52]. All of products were kept in a desiccator before use.

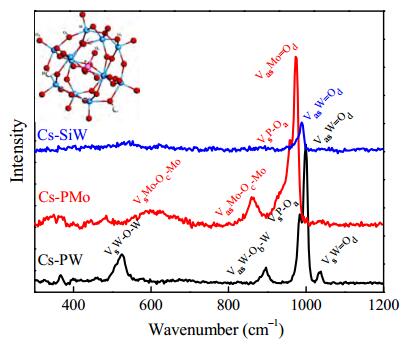

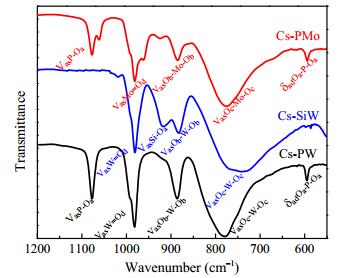

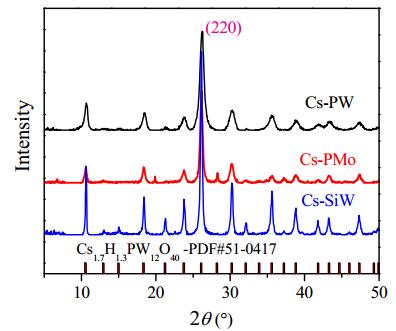

The solid POMs were characterized by XRD, FT-IR spectroscopy, Raman spectroscopy, NH₃-temperature programmed reduction (NH₃-TPD), H₂ temperature programmed reduction (H₂-TPR), and X-ray photoelectron spectroscopy (XPS). The XRD patterns were collected with a D8 Advance Plus X-ray diffractometer (Bruker, Germany) using a Cu K_α radiation source and recorded in the 2θ range 5°–50° at a scanning speed of 10 °/min. The FT-IR spectra of the POMs were recorded with a Nicolet IS10 infrared spectrometer (Thermo Scientific, USA) and acquired by the transmission method. The Raman spectra were collected using an XploRA Raman spectrometer (Horiba Jobin Yvon, France) with 532 nm laser excitation under ambient conditions. The NH₃-TPD profiles were collected with an Autochem Ⅱ chemisorption instrument (Micromeritics, USA) with a thermal conductivity detector and a cold trap. The adsorption temperature of ammonia was 100 ℃ and the ramp speed was 10 ℃/min. Before the experiments, the catalysts were activated in helium at 250 ℃ for 2 h. The H₂-TPR profiles were obtained with an Autochem Ⅱ chemisorption instrument (Micromeritics, USA) equipped with a thermal conductivity detector and a cold trap. Before the experiments, the catalysts were activated in argon 250 ℃ for 2 h. The XPS data were acquired with an Axis Ultra Dld spectrometer (Shimadzu, Japan) with Mg K_α radiation as the excitation source. All of binding energy values were referenced to the C 1s peak at 284.6 eV.

The decomposition reactions were performed in a T316 stainless-steel autoclave equipped with a controller, a thermocouple, and a mechanical agitator (Model 4598, Parr Instrument Company, Moline, USA). The reactions were typically performed by first introducing 0.100 g of 2-PAP and 0.010 g of the catalyst (or no catalyst) into the dry autoclave, and then 50 mL of AE was introduced. The autoclave was quickly closed to prevent adsorption of water and then purged with N₂ several times. The reaction was performed at 280 ℃ for 4 h with a stirring speed of 300 r/min. After a predetermined time, the reactor was cooled to room temperature and the products were then collected for further analysis [53].

The products were first analyzed by gas chromatography-mass spectroscopy (GC-MS, Model DSQ Ⅱ, Thermo Fisher, Austin, USA), and then analyzed using a GC flame ionization detector (GC-FID) equipped with a HP-5 column (GC-2010, Shimadzu, Japan). The concentrations of 2-PAP, POPE, phenol, and acetophenone were determined by the external standard method. The 2-PAP conversion, selectivities for phenol and acetophenone, and total mass yield of all other products (wt%) were calculated by the following equations:

where Conv. is conversion of the 2-PAP substrate, S_P and S_A are the selectivities of phenol and acetophenone, respectively, Y_P and Y_A are the productivities of phenol and acetophenone, respectively, Ω_others is the total mass yield of products other than phenol and acetophenone, c is the molar concentration of the specific compound calculated by the chromatographic peak area in the GC-FID chart of the reaction products that correspond to the external standards of a specific compound (mol/L), and ω is the mass concentration of a specified compound (g/L).

Loss of the solid POMs in the AE solvent was analyzed by inductively coupled plasma-atomic emission spectrometry (ICP-AES; Model iCAP6300, Thermo Fisher, USA). About 20 mL of the AE solvent was withdrawn in a clean crucible before and after the reaction. The solvent samples were first acidified by HNO₃ solvent and then air-dried at room temperature. The crucible was then calcined at 500 ℃ for 6 h in air. HNO₃ solvent (20 mL, 1 mol/L) was then introduced into the crucible and the crucible was kept in an ultrasonic machine for 30 min. Finally, the metals in this ultrasonic treated solvent were determined by ICP-AES. The results are given in Table 1. Almost none of the solid POMs are lost in the solvent during the reactions.

The NH₃-TPD method was used to evaluate the acidity of the POMs. Their profiles are shown in Fig. 4. The acid amounts and strengths of the three samples are very different. Cs-PMo shows reasonably strong acidity with an ammonia desorption peak in the temperature range 250–400 ℃, while Cs-SiW shows stronger acidity with the ammonia desorption temperature mainly in the range 450–550 ℃. Cs-PW shows the strongest acidity among the three samples, and part of the adsorbed ammonia did not desorb even at a temperature higher than 550 ℃. These results are consistent with the literature [41, 54]. Table 2 lists the amounts of acid sites calculated from the peak areas in Fig. 4. The acid site amounts per gram verify that the acidities of Cs-PMo and Cs-SiW are much higher than that of Cs-PW. Furthermore, the amount of acid sites of Cs-PMo exceeds that of Cs-SiW (Table 2). According to the molar mass, the amount of acid sites of Cs-PMo is the same as that of Cs-SiW, but nearly twice that of Cs-PW.

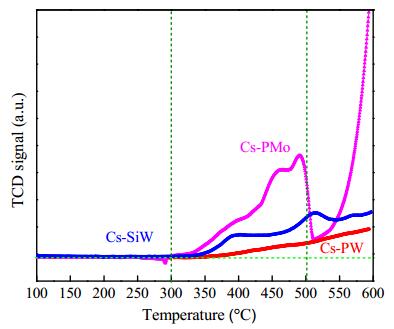

The redox properties of the three POMs were evaluated by H₂-TPR, and the profiles are shown in Fig. 5. There are no consumption peaks below 300 ℃, indicating no adsorption of H₂ to the POM catalysts in this temperature range. The TPR profile of Cs-PMo shows distinct H₂ consumption peaks in the temperature range 350 to 500 ℃. This indicates that there is considerable reduction from MoO₃ to MoO₂ in this temperature range because molybdena can be partly formed at a TPR temperature of about 400 ℃ [55, 56]. The TPR profiles of Cs-PW and Cs-SiW show an increasing tendency as the TPR temperature increases above 350 ℃ and their response signals are much weaker than that of Cs-PMo, indicating that Cs-PW and Cs-SiW are much more difficult to be reduced than Cs-PMo [41, 54].

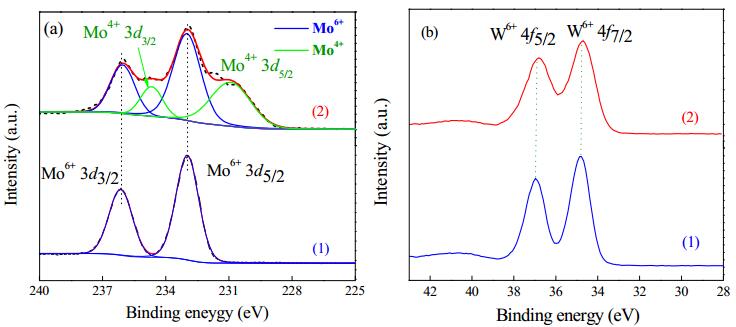

The redox properties of the catalysts were further investigated by XPS experiments. Fig. 6 shows the high-resolution Mo 3d and W 4f XPS spectra of Cs-PMo and Cs-PW before and after treatment in AE at 280 ℃ for 4 h, respectively. The curve-fitting procedure (Fig. 6(a)) reveals a doublet peak of Mo(Ⅵ) (3d_5/2/3d_3/2) in untreated Cs-PMo at 232.9/236.2 eV, and doublet peaks at 232.9/236.2 and 231.0/234.8 eV for Mo(Ⅵ) and Mo(Ⅳ) (3d_5/2/3d_3/2) in treated Cs-PMo, respectively [57, 58]. These peaks indicate that Mo(Ⅵ) in the crystals of Cs-PMo is partially reduced during treatment in AE. Fig. 6(b) shows the results for Cs-PW before and after treatment under the same conditions. The curve-fitting procedure reveals that the spectra of Cs-PW show a doublet at 34.8/37.0 eV for W(Ⅵ) (4f_7/2, 4f_5/2) components both before and after treatment [59, 60]. This indicates that W(Ⅵ) in the crystals of Cs-PW is not reduced during the treatment in AE. Therefore, the Cs-PMo catalyst is a bifunctional catalyst with redox and acidic properties, while the Cs-PW catalyst only acts as a monofunctional acid catalyst in our reactions.

Cs-SiW, Cs-PW, and Cs-PMo were used to investigate their catalytic effect on decomposition of 2-PAP in AE at 280 ℃ for 4 h in a T316SS autoclave with the stirring speed of 300 r/min. Conversion of 2-PAP and the selectivities to the main products were determined by GC-FID with external standard methods. The results are given in Table 3 along with the results of the reaction without adding a catalyst for reference. It has been reported that 2-PAP can be decomposed in AE at high temperature in a T316SS autoclave. The stainless-steel wall of the T316SS autoclave could promote transfer of the hydrogen liberated from AE to 2-PAP and various decomposed intermediates. As shown in row 1 of Table 3, 2-PAP is almost completely converted even without adding a catalyst, and the selectivities of phenol and acetophenone are 81.6% and 54.4%, respectively. The corresponding reaction mechanism has been described in our previous paper [53].

When Cs-PMo was added into the reaction system (row 2 of Table 3), 2-PAP was completely converted and the selectivities of phenol and acetophenone were 98.6% and 91.1%, respectively. Only a small amount of others products ( < 5 wt%) was produced. This result suggests that Cs-PMo has excellent catalytic activity for decomposition of 2-PAP to the target products in AE. However, it is surprising that conversion of 2-PAP was surprisingly low (89%) when Cs-PW was used as a catalyst (row 3), and the selectivities for phenol and acetophenone also decreased to 65.5% and 47.7%, respectively. These values are even lower than those without adding a catalyst. Cs-SiW performed even worse for this reaction, with selectivities for phenol and acetophenone of 40.7% and 11.3%, respectively, and 2-PAP conversion of only 37.6%.

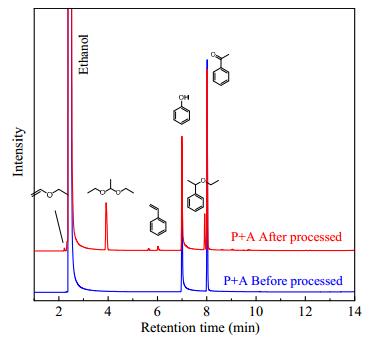

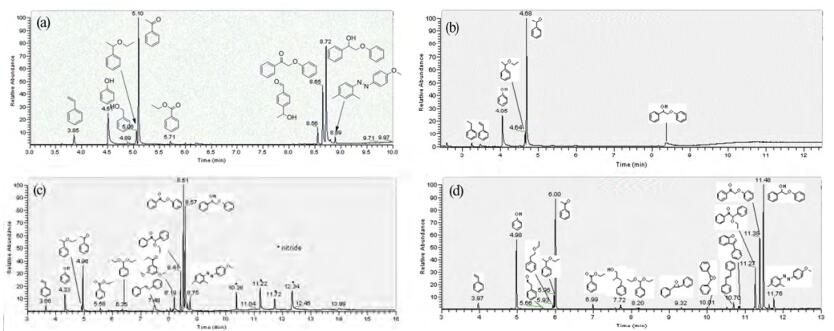

Analysis of the product distribution can reveal the details of the reaction, which are very useful for investigating the reaction mechanism. The GC-MS results of the reaction products with and without addition of a POM catalyst are shown in Table 4, and their corresponding total ion current (TIC) profiles are shown in Fig. 7. As shown in rows 1–4 of Table 4, the products from dehydrogenation and/or intermolecular dehydration reactions of the AE solvent are all detected, such as ethylal, ethoxyethene, diethyl ether, and acetal [53, 61, 62].

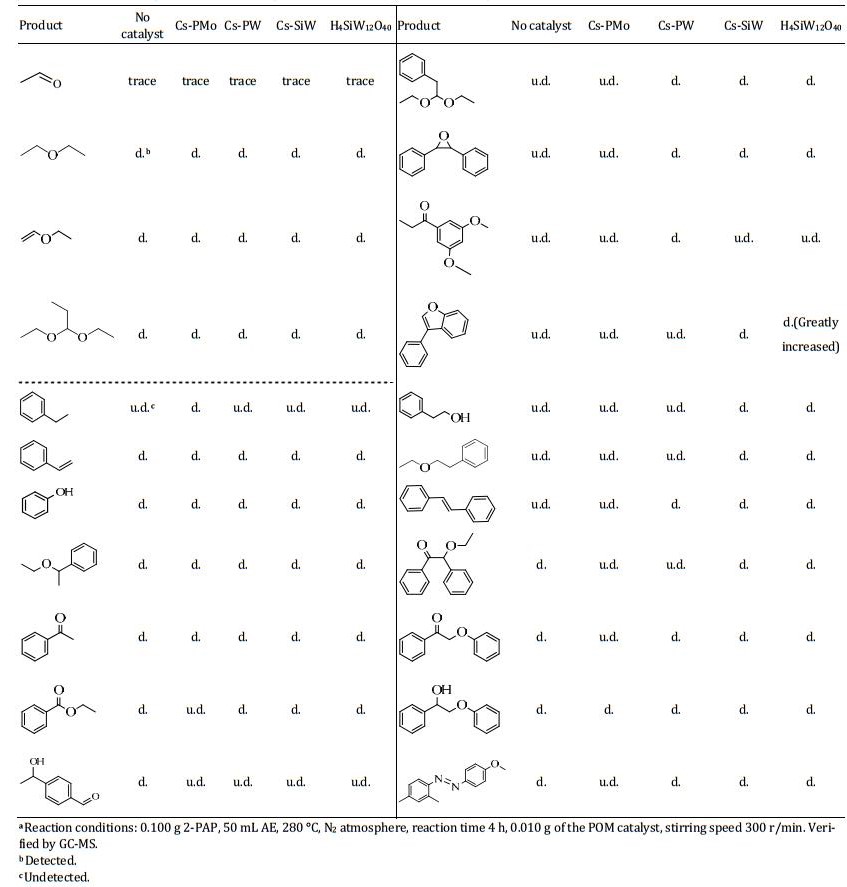

Except for the similar products from the ethanol solvent, there are large differences in the products from decomposition of 2-PAP. The products from decomposition of 2-PAP without a catalyst are styrene, phenol, acetophenone, ethyl benzoate, (1-ethoxyethyl)benzene, 4-(1-hydroxyethyl) benzaldehyde, 2-phenoxy-1-phenylethan-1-ol, and (2, 4-dimethylphenyl)-2-(4-methoxyphenyl) diazene (nitrides) (column 2 of Table 4 and Fig. 7). Their generation mechanisms have been described in our previous report as the result of hydrogen transfer reactions [53]. Production of nitrides can be ascribed to the reactions of the 2-PAP cleavage intermediates with the activated nitrogen in the autoclave.

When the reaction is catalyzed by Cs-PMo, in addition to similar products to those without a catalyst, a small amount of ethyl benzene is generated (column 3 of Table 4), while there are no products of nitrides, such as (2, 4-dimethylphenyl)-2-(4-methoxyphenyl)diazene. Generation of ethyl benzene can be attributed to excessive hydrogenation of styrene along route Ⅰa-1 in Scheme 2 in hydrogen-enriched surroundings [53], whereas the lack of nitrides can be attributed to greatly enhanced hydrogen donation (row 2 of Table 3). When the reaction is catalyzed by Cs-PW (row 3 of Table 3) or Cs-SiW (row 4 of Table 3), some other by-products are generated, such as (diethoxymethyl)benzene, 1, 2-diphenylethene, 2, 3-dipheny-loxirane, and 1-(3, 5-dimethoxyphenyl)propan-1-one. The slight difference between these two catalysts is generation of 3-phenylbenzofuran when the catalyst is changed from Cs-PW to Cs-SiW.

As well as all of the reactions of 2-PAP with and without a catalyst, the products of dehydrogenation/dehydration of AE can also be generated, such as ethylal, ethoxyethene, diethyl ether, and acetal, accompanied by active hydrogen liberation [15, 53, 63]. Active hydrogen plays a crucial role in conversion of 2-PAP [53]. Therefore, promotion of conversion of AE by the POM catalysts was first investigated in the absence of 2-PAP.

Table 5 shows generation of ethoxyethene/acetal from pure AE with increasing temperature at a stirring speed of 300 r/min. As shown in Table 5, no dehydrogenated species of AE are detected before treatment (row 1). However, after treatment, ethoxyethene and acetal are detected (rows 3 and 4). Furthermore, the total area of generated ethoxyethene/acetal increases as the temperature increases (column 4). Remarkably, when the temperature is higher than 260 ℃, the total GC-FID peak area of ethoxyethene and acetal significantly increases.

After addition of Cs-PMo to the system, the amounts of ethoxyethene and acetal significantly increase (Table 6). The total peak area of ethoxyethene and acetal in the GC-FID chromatogram increases to 1054547 in the post-reaction solvent compared with 165743 (Table 5) for the case without a catalyst at 200 ℃. In addition, the value at 280 ℃ is 4 times higher than that without Cs-PMo, meaning that Cs-PMo greatly accelerates dehydrogenation of ethanol. The Cs-SiW catalyst, which has weaker redox properties and a higher acid amount than Cs-PMo, was used to further investigate the effect of the acidity on the dehydrogenation reactions (row 5 of Table 6). Cs-SiW also increases the total amount of generated ethoxyethene/acetal compared with the data without a POM catalyst (row 5 of Table 5), and the increase is mainly because of enhancement of production of ethoxyethene.

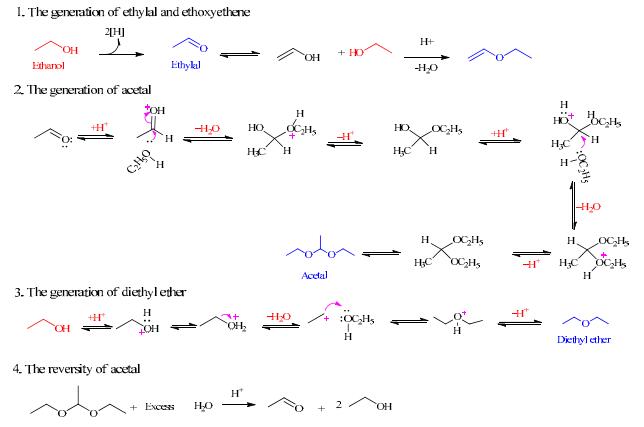

The proposed mechanism is summarized in Scheme A [64, 65]. First, ethanol is dehydrogenated to generate ethylal by a catalytic redox or self-redox reaction. Ethylal is then tautomerized to vinyl alcohol, which then reacts with ethanol to give ethoxyethene by an intermolecular dehydration reaction (1 in Scheme A). The carbonyl oxygen of ethylal can be attacked by a proton (from the acid) to generate an oxonium cation, which is susceptible to nucleophilic attack by the lone electron pair of oxygen in an ethanol molecule [64, 65]. Hemiacetal is then generated after elimination of one water molecule and one proton. Hemiacetal is reactive with ethanol and undergo further acetylation to generate acetal, which is why no hemiacetal is detected in our products (2 in Scheme A). A small amount of diethyl ether is also detected in the post-reaction solutions and its generation mechanism is shown in 3 of Scheme A [61]. Because generation of diethyl ether is only because of intermolecular dehydration of two ethanol molecules and no active hydrogen is liberated, the amount of diethyl ether is not included in the "Total area" columns of Tables 3, 5, and 6 as the estimate of the amount of liberated active hydrogen. This mechanism can explain the above reaction results where both the acidity and redox properties of the catalyst can accelerate conversion of AE with an increase in the dehydrogenating/dehydrating products of AE. Liberation of active hydrogen accompanying these reactions will be shown to be the key factor for decomposition of 2-PAP (Scheme B).

By comparing the total GC-FID peak areas after the reaction (column 8 of Table 3), it is clear that addition of POMs in the reaction system containing 2-PAP and AE solvent increases active hydrogen liberation. The total area of ethoxyethene and acetal increases from 847253 without a POM catalyst to 1145881, 1257376, and 5888967 when Cs-SiW, Cs-PW, and Cs-PMo are added to the reaction system, respectively.

Considering the characterization results of the POMs (Section 3.1), the order of the amounts of acid sites is Cs-PMo > Cs-SiW > Cs-PW, the order of the acid strengths is Cs-PW ≥ Cs-SiW > Cs-PMo, and the order of the redox abilities is Cs-PMo > Cs-PW ≥ Cs-SiW. The first concern is whether the acidity or the redox properties of the catalyst governs the dehydrogenation reaction of ethanol. Comparing the data given in column 5 of Table 5 and column 5 of Table 6, it could be inferred that the acidity of the catalyst can lead to an increase of the total peak area of ethoxyethene and acetal, and such enhancement mainly comes from an increase in the amount of ethoxyethene. The effect of the amount of acid sites was further investigated in the system with 2-PAP by comparing the results of Cs-PW and Cs-SiW (column 8 of Table 3) because of the clear differences in their acid strengths (Fig. 4) and redox properties (Fig. 5) is slight. The difference in the total production of ethoxyethene and acetal is not very large (~10%) even though the acid amount of Cs-SiW is 60% higher than that of Cs-PW. However, the amount of dehydrogenated solvent products over Cs-PMo, which has the highest redox ability, is remarkably higher than (as much as 3.3 times) that of Cs-SiW, even though the former has the weakest acid strength and only 50% more acid sites than the latter (Table 6). This indicates that the redox ability might dominate generation of active hydrogen by dehydrogenation of AE.

The effect of hydrogen transfer on the self-redox equilibrium of dehydrogenation-hydrogenation of ethanol was also investigated. As shown in row 5 of Table 6 and row 4 of Table 3, transfer of active hydrogen to 2-PAP and its intermediates can promote production of ethoxyethene and acetal through ethylal generation. The difference of the total areas of ethoxyethene/acetal with and without a catalyst is about 30%. Generation of ethoxyethene/acetal is remarkably enhanced when Cs-PMo is used (column 4 of Table 6 and column 2 of Table 3). The resulting 120% increase in generation of ethoxyethene/acetal can be ascribed to the high hydrogen transfer ability of Cs-PMo [58, 66]. Scheme B summarizes promotion of hydrogen transfer and acid catalysis in the redox reaction of AE.

2-PAP would react with the liberated active hydrogen accompanying dehydrogenation of AE to form various products even if no other catalyst is added (Section 3.2). The hydrogen transfer mechanism was proposed in our previous paper from the product distribution in the system without adding a catalyst [53]. However, some new products, such as 3-phenylbenzofuran, 2-phenylethan-1-ol, and 1, 2-diphenylethene, are observed when acidic POMs are used as a catalyst (Table 4, Fig. 7). Therefore, we propose the acid-catalyzed reaction pathways beyond the hydrogen transfer mechanism in Scheme C.

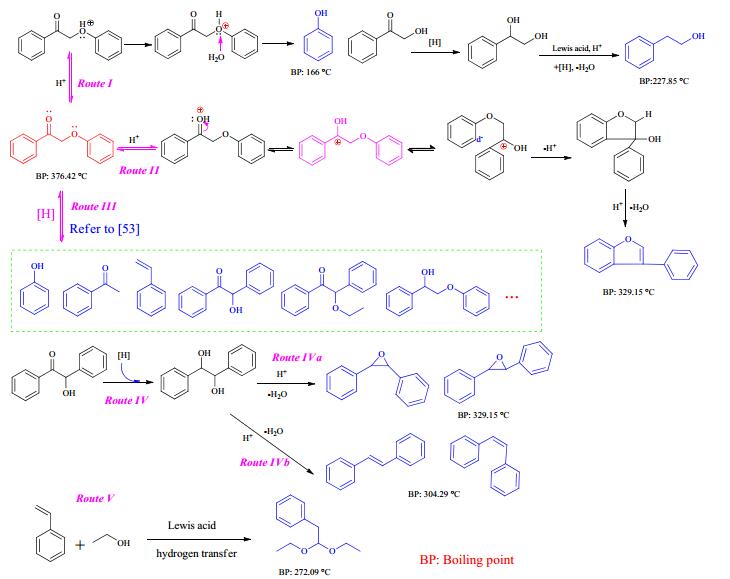

When an acid catalyst exists in the reaction system, the lone pair electrons on the oxygen of the ether linkage in 2-PAP are susceptible to attack by a proton from the acid catalyst to form an oxonium cation [59] along route Ⅰ (Scheme C). The formed oxonium cation can be temporarily stabilized by coordination to POMs anions [46, 65, 67, 68], or even be attacked by a water molecule (if water is present as a nucleophilic agent) to give phenol and 2-hydroxy-1-phenylethan-1-one [69]. 2-Hydroxy-1-phenylethan-1-one can then be hydrogenated and dehydrated to 2-phenylethan-1-ol over an acid catalyst [70]. If the 2-PAP molecule is attacked by a proton at the α-carbonyl group, conversion can proceed along route Ⅱ in Scheme C to form a 1-hydroxy-2-phenoxy-1-phenylethan-1-ylium cation, which can also be temporarily stabilized by coordination to POM anions in an anhydrous environment [46, 65, 67, 68], or further cyclized and transform to 3-phenylbenzofuran. Some other products, such as 2, 3-diphenyloxirane, 1, 2-diphenylethene, and (2, 2-diethoxyethyl)benzene, can be considered as the acid-catalyzed products obtained from hydrogen transfer reactions. The generated 2-hydroxy-1, 2-diphenylethan-1-one can be hydrogenated to a 1, 2-diphenylethane-1, 2-diol (route Ⅳ) and further transform to 2, 3-diphenyloxirane along route Ⅳa or 1, 2-diphenylethene along route Ⅳb. The product (2, 2-diethoxyethyl)benzene can be considered to be generated along route Ⅴ by reaction of pre-generated styrene (product of route Ⅲ) with ethanol molecules [71]. The generation mechanism of 1-(3, 5-dimethoxyphenyl)propan-1-one is not clear under our reaction conditions (Table 4 and Fig. 7).

The experimental results in Section 3.2 (Tables 3 and 4, Fig. 7) show the dramatic differences in 2-PAP conversion, the product selectivities, and the product distributions over different POM catalysts. This can be explained by associating the reaction results with the reaction mechanism and the properties of the POMs.

(1) Conversion of 2-PAP in AE (column 3 of Table 3). As shown in Table 2, the reaction of 2-PAP in AE shows dramatically different conversion over different POM catalysts. Both the reactions without a catalyst and with the Cs-PMo catalyst have high conversion of > 99%. However, addition of Cs-PW decreases the conversion of 2-PAP to 88.8%, while it greatly decreases to 37.6% when Cs-SiW is added. We speculated that Cs-SiW and Cs-PW can promote the reverse-cleavage reaction, that is, the condensation reaction of phenol with acetophenone. Thus, a reaction was performed with these two reactants in AE using the Cs-SiW catalyst (Table 7 and Fig. 8). The reverse reaction did not occur. Both phenol and acetophenone were stable and only a small part of acetophenone was hydrogenated to 1-phenylethan-1-ol or its derivatives, such as styrene (Table 7 and Fig. 8). This reaction confirmed the mechanism for generation of 1-phenylethan-1-ol proposed in Scheme 2 in our previous report [53], although the speculation about the reverse reaction mechanism was false.

Considering the characterization results of the POMs and combining them with previous results [41, 46, 54, 65, 68, 72], it is clear that these three POMs have very different acid strengths, acid site amounts, and redox properties. Considering the order of the active hydrogen amounts in Table 2 (Cs-PMo > Cs-SiW ≥ Cs-PW) and the proposed scheme for conversion of 2-PAP [53], conversion of 2-PAP is clearly enhanced as the active hydrogen donating ability increases, whereas it is inhibited with increasing amount of acid sites and acid strength (Figs. 4–7, and Tables 2 and 3). The former was demonstrated in our previous report [53], while the latter can be explained as follows. Under catalysis with a strong acid, the 2-PAP molecule can form an oxonium cation at the α-carbonyl and/or ether bond oxygen atom (route Ⅰ or Ⅱ in Scheme C) [64, 65], and this oxonium cation can then be stabilized by the anion of the POM [46, 54, 64, 65, 68, 72, 73]. The competition between this stabilization effect of the oxonium cation and the ability for active hydrogen transfer of the catalyst [53] dominates conversion of 2-PAP.

When the active hydrogen donating and transfer ability is strong but there are few weak acid sites, conversion of 2-PAP would proceed along the hydrogen transfer route, similar to the reaction of 2-PAP in AE or IPA without a catalyst [53]. Similarly, when the active hydrogen donating and transfer ability is very strong but the acidity strength is not very strong, similar to the case with the Cs-PMo catalyst, conversion of 2-PAP would also proceed along the active hydrogen transfer route (Tables 3–6 and Figs. 4–7). However, if the strength of the acid sites is very strong and the acid site amount is very large, conversion of 2-PAP would proceed along the oxonium cation mechanism, such as the reaction of 2-PAP in AE with the Cs-PW catalyst (Tables 3–6 and Figs. 4–7) or Cs-SiW catalyst (Tables 3 and 4, and Fig. 7).

(2) Selectivities of the desired products. The selectivities of the various products depend on their reaction routes and reaction rates. When 2-PAP reacts in AE without adding a catalyst, the selectivities of phenol and acetophenone are 81.6% and 54.4%, respectively, and the total mass yield of other byproducts is 33.0% (Table 3). Addition of the Cs-PMo catalyst further enhances the selectivities to phenol and acetophenone to 98.6% and 91.1%, respectively, with 2-PAP conversion of > 99% and the mass yield of other products of < 5% (Table 3). This can be explained by our reaction mechanism and the detailed product distribution (columns 2 and 3 of Table 3). When Cs-PMo is added, the by-products generated along route Ib in Scheme 2 in [53] are not present, and the desired products of phenol and acetophenone are produced with in small amounts excessive hydrogenated products, such as (1-ethoxyethyl)benzene, styrene, ethylbenzene, and 2-phenoxy-1-phenylethan-1-ol. The by-products of isomerization, rearrangement, and oxidization are also not present. Considering Tables 3–6, active hydrogen generation greatly increases when Cs-PMo is added, which can be attributed to its strong redox properties. Cs-PMo not only enhances generation of active hydrogen, but it can also promote hydrogen transfer to the intermediates [66, 74–77]. Therefore, Cs-PMo can promote the reaction along route Ia to generate the desired products (Scheme 2 in [53]). Moreover, the acid strength of Cs-PMo is not very high and isomerization and rearrangement of the intermediates rarely occurs. As a result, Cs-PMo exhibits excellent selectivity for the desired products with almost complete conversion of 2-PAP.

When the Cs-PW catalyst is used, the selectivities to phenol and acetophenone are both lowered and 2-PAP conversion is also lowered (Table 3). Analyzing the results in Tables 3 and 4, some side products are generated by a pathways other than the hydrogen transfer mechanism, such as (diethoxymethyl)benzene, 1-(3, 5-dimethoxyphenyl)propan-1-one, 1, 2-diphenylethene, and 2, 3-diphenyloxirane (columns 2 and 4 of Table 4). This shows that a portion of the reaction of 2-PAP proceeds along the acid-catalyzed route (routes Ⅱ–Ⅳ in Scheme C) [64, 65]. Because the amount of acid sites is not too much (Table 2), most of 2-PAP can be converted by the hydrogen transfer mechanism. The selectivities to the desired products decreases with conversion. When the Cs-SiW catalyst is used, the selectivities to phenol and acetophenone are 40.7% and 11.3% with 2-PAP conversion of only 37.6% (row 4 of Table 3). From the product distribution given in Table 4, the probable products generated by the hydrogen transfer mechanism are generated owing to enhanced hydrogen donation from AE compared with the case without a catalyst (Table 3). Some new products are also generated, such as (diethoxymethyl)benzene, 1, 2-diphenylethene, 2, 3-diphenyloxirane, 3-phenylbenzofuran, and 2-phenylethan-1-ol. This can be attributed to an increased portion of the reaction of 2-PAP proceeding by the acid-catalyzed mechanism. Careful analysis of proposed Scheme C and the product distribution in Table 4 shows that there are considerably more side reactions derived from acetophenone along route Ⅴ and less reaction along route Ⅲ (Scheme C). These phenomena lead to a low yield of acetophenone and a very high S_P/S_A ratio (row 4 of Table 3).

Decomposition of the lignin model compound 2-PAP in AE has been investigated using three POM catalysts. Cleavage of 2-PAP can follow either an active hydrogen transfer mechanism or an oxonium cation mechanism. The product distribution depends on the competition between the hydrogen donating ability and the acid strength/amount. The function of the POM catalyst is to promote active hydrogen liberation and promote formation and temporary stabilization of oxonium cations. The Cs-PMo catalyst can also increase the hydrogen donating ability and promote hydrogen transfer to the reaction intermediates, leading to high conversion of 2-PAP ( > 99%) and excellent selectivities to the desired products (98.6% for phenol and 91.1% for acetophenone). An acid catalyst with very strong acid strength and high amount of acid sites can have an inhibitory effect on the decomposition reactions of 2-PAP; that is, it can inhibit conversion and lower the product selectivities.
