Direct construction of sulfenylated pyrazoles catalyzed by I2 at room temperature
Shuang-Hong Hao, Li-Xia Li, Dao-Qing Dong, Zu-Li Wang
College of Chemistry and Pharmaceutical Sciences, Qingdao Agricultural University, Qingdao 266109, Shangdong, China
* Corresponding author. Zu-Li Wang, E-mail: wangzulichem@163.com
These authors contributed equally to this article
Foundation item: This work was supported by the National Natural Science Foundation of China (21402103, 21772107, 31471808), the China Postdoctoral Science Foundation (150030), and the Research Fund of Qingdao Agricultural University's Highlevel Person (631303)
Abstract: An iodine-catalyzed sulfenylation of pyrazoles at room temperature is described, in which a variety of pyrazoles were well tolerated and the desired products were obtained in good to excellent yields.
© 2017, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: C-S bond     Iodine     Room temperature     Disulfides     Sulfenylation
室温下碘催化直接构建硫化吡唑啉酮
郝双红, 李丽霞, 董道青, 王祖利
青岛农业大学化学与药学院, 山东青岛 266109
摘要:含硫化合物在有机合成、药物化学以及材料化学等领域具有重要的作用.到目前为止,科学家已经在C-S键的构建领域进行了很多工作.在构建C-S键的众多方法中,金属催化的C-S键合成反应是一类很重要的反应,但是此方法存在着催化剂对空气敏感、环境不友好等问题.因此,发展无金属催化的C-S键构建反应受到了人们越来越多的重视.基于我们在碘催化相关反应方面的研究,本文报道了一种碘催化的硫化吡唑啉酮类化合物的合成方法. 我们选用3-甲基-1-苯基-2-吡唑啉-5-酮与二苯二硫醚为底物进行条件筛选实验,发现I2(10%)为催化剂,二氧六环为溶剂,H2O2为氧化剂为最优化的实验条件,目标产物硫化吡唑啉酮最高产率为88%.在最优化的反应条件下,我们尝试了带有不同官能团(NO2,Cl,OH等)的吡唑啉酮与二硫醚的反应,均能以较高产率得到目标产物.当含有杂环的二硫醚(2,2'-二硫二吡啶)作为反应底物时,也能以中等以上的产率得到相应的目标产物.另外还进行了对比试验,例如在反应体系中加入自由基捕获剂TEMPO,反应产率会大大降低,说明反应中应该有自由基中间体生成;如果反应体系中不加碘,则反应产率为零;如果反应体系中不加H2O2,则反应产率由88%降低至48%,说明碘和H2O2在反应中都起到了重要作用.通过以上对比试验,提出了可能的反应机理:首先,二硫醚发生均裂反应生成苯硫基自由基,然后苯硫基自由基与碘反应生成亲电的PhSI活性中间体,PhSI与异构化的吡唑啉酮发生亲电取代反应,生成目标产物硫化吡唑啉酮和HI,HI可以被H2O2氧化生成I2继续参与下一轮催化反应. 以3-甲基-1-苯基-2-吡唑啉-5-酮与二苯二硫醚为底物,我们对此反应进行了放大试验,结果显示反应产率几乎没有降低,这为此反应的大规模应用奠定了基础. 在此,我们发展了一种简单高效的合成硫化吡唑啉酮的反应,此方法无需金属催化剂,利用常见的碘为催化剂就可以以较高的产率得到目标产物.为合成含硫化合物提供了一种新的方法.
关键词C-S键        室温    二硫醚    硫化

Sulfur-containing compounds are crucial for the synthesis of diverse molecules in organic synthesis, the pharmaceutical industry, and materials science [1-9]. In the last few decades, much effort has been devoted to developing new methods for C–S bond construction. Among these approaches, transition-metal catalyzed cross coupling reactions are among the most powerful tools for C–S bond formation [10-18]. However, some of these methods require expensive and air-sensitive metal catalysts, and are not environmentally benign. Therefore, direct sulfenylation reactions under metal free conditions have received increasing interest recently [19-32]. For example, in 2016, an iodine catalyzed regioselective sulfenylation of imidazoheterocycles using dimethyl sulfoxide as both oxidant and solvent was reported by Prabhu et al. [33]. An efficient method using an ionic liquid as solvent was developed by Zhang et al. for the synthesis of 3-sulfenyl imidazo[1, 2-a]pyridines in the presence of Cs2CO3 [34]. In 2016, Lu et al. showed that aryl sulfonyl chlorides were good reagents for the sulfenylation of pyrazolones and benzofurans [35]. In 2016, another system consisting of KIO3 and air was disclosed by Wan et al. for the α-sulfenylation of enaminones and related enamines [36]. Furthermore, Wang et al. reported that the direct arylthiation of substituted anilines was realized in the present of I2 and di-tert-butyl peroxide [37]. In 2017, Song et al. described an electrolytic C–H thiolation reaction catalyzed by (2, 2, 6, 6- tetramethyl-piperidin-1-yl)oxyl (TEMPO) for the synthesis of benzothiazoles and thiazolopyridines [38]. However, new versatile and practical methods for C–S bond synthesis remain desirable. As part of our continuing efforts toward iodine-catalyzed reactions [39, 40], we now disclose a new strategy for the convenient and highly efficient iodine-catalyzed synthesis of sulfenylated pyrazoles at room temperature.

The reaction of 3-methyl-1-phenyl-1H-pyrazol-5(4H)-one (1a) with disulfide (2a) in the presence of H2O2 was chosen as the model reaction to optimize conditions. Initially, various catalysts were screened, with the highest yield (88%) obtained using I2 as catalyst (Table 1, entry 5). Using N- bromobutanimide (NBS) as the catalyst, desired product 3a was obtained in only 43% yield (Table 1, entry 1). In contrast, N-chlorosuccinimide (NCS), N-iodosuccinimide (NIS), and NH4I did not successfully catalyze the model reaction (Table 1, entries 2–4). We next investigated the effect of solvent on the model reaction, and found that 1, 4-dioxane was superior to the other solvents. No desired product was generated when water was used as the solvent (Table 1, entry 10), while other solvents, such as DMF, dichloroethane (DCE), 1, 2- dimethoxyethane (DME), and EtOH, generated the corresponding products in (39–67)% yields (Table 1, entries 6–9). Furthermore, when the amount of H2O2 was decreased from 2 to 1 equiv., a slightly lower yield of 60% was obtained (Table 1, entry 11).

Table 1
Iodine-catalyzed sulfenylation of pyrazoles a.

Having obtained optimized reaction conditions, the scope of this reaction was evaluated for a variety of pyrazoles with different substituted disulfides. As shown in Scheme 1, substituted pyrazoles with either electron-donating or electron- withdrawing groups were well tolerated in this system (3a3d). Chlorine-substituted pyrazoles reacted with a series of disulfides smoothly, affording the desired product in (75–93)% yields (3e3k). Furthermore, methyl-substituted pyrazoles afforded the desired products in (77–97)% yields (3d, 3l3o). For substituted disulfides, the electronic effects of the substituent groups had no significant effect on the catalytic efficiency (3p3s). To our delight, when 1, 2- di(pyridin-2-yl)disulfane was used, the corresponding products were obtained in moderate to high yields (3t3v).

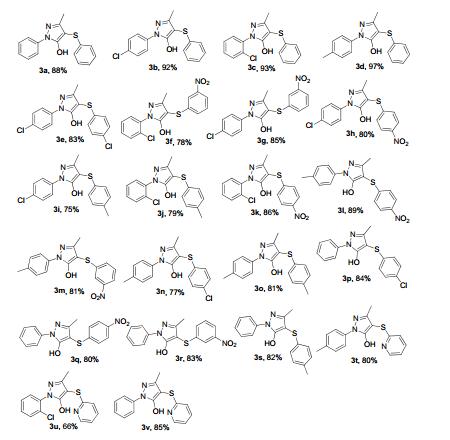

Scheme 1. Scope of pyrazole sulfenylation using disulfides. Reaction conditions: Pyrazole (0.2 mmol), disulfide (0.11 mmol), I2 (10 mol%), solvent (1 mL), 25 ℃, 30% aq. H2O2 in decane (0.4 mmol), 24 h, in air. Isolated yields are shown.

To demonstrate the synthetic utility of this transformation, a scaled up experiment (6 mmol) was carried out (Scheme 2). When 3-methyl-1-phenyl-1H-pyrazol-5(4H)-one (1a) and 1, 2- diphenyldisulfane (2a) were tested under the optimized conditions, product (3a) was obtained without a major decrease in yield. Therefore, the present method should be a robust method for the large-scale synthesis of sulfenylated pyrazoles.

Scheme 2. Gram-scale synthesis of sulfenylated pyrazoles 3a.

To gain insight into the reaction mechanism, control experiments were performed, as shown in Scheme 3. When TEMPO was added to the reaction, the product yield was significantly decreased (Scheme 3(a)). This indicated that a radical intermediate might be involved in the reaction. When the reaction was conducted without I2, no desired product was detected, indicating the important role of I2 (Scheme 3(b)). Furthermore, when the reaction of 1a with 2a was performed without H2O2 (Scheme 3(c)), the yields of the desired product decreased to 48%. These results demonstrated the importance of I2 and H2O2 in this reaction.

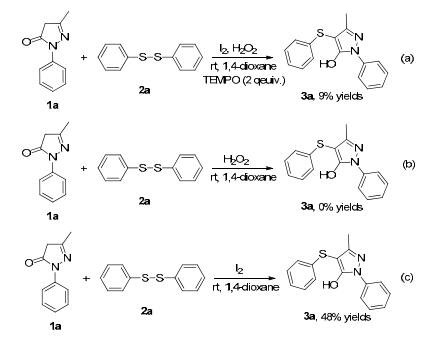

Scheme 3. Controlled experiments.

Based on these preliminary experiments and previous reports [19, 41-45], a plausible reaction mechanism was proposed, as shown in Scheme 4. Firstly, homolytic cleavage of the disulfide bond occurs, forming thiyl radicals. The thiyl radicals then react with I2 to generate electrophilic sulfenyl iodide PhSI. Finally, electrophilic PhSI reacts with pyrazoles to produce the desired product and HI, and I2 is readily regenerated by the oxidation of HI with H2O2.

Scheme 4. Proposed reaction mechanism.

In conclusion, we have developed an efficient and simple I2-catalyzed protocol for the synthesis of sulfenylated pyrazoles at room temperature. Under the present reaction conditions, a variety of desired products were obtained in good to excellent yields. Further investigations into the reaction scope and mechanism, and the synthetic applications of these sulfenylated pyrazoles, are now in progress.
