The development of highly efficient, cost-effective electrocatalysts for the oxygen reduction reaction (ORR) has played an important role in the commercialization of proton exchange membrane fuel cells (PEMFCs) [1-4]. Currently, platinum-based catalysts are most commonly used as ORR electrocatalysts [5]. However, these materials are costly, which has restricted the implementation of PEMFCs [6]. Therefore, many attempts have been made to explore non-precious metal catalysts (NPMCs), including macrocycle-based catalysts [7-9], transition metal carbides [10-12], transition metal oxides [13], and M–N–C (M = Fe and/or Co) catalysts [14-21]. Among these, the M–N–C materials are considered as one of the most promising candidates owing to their high activity and remarkable stability [22-25].

Dodelet et al. [26] used phenanthroline as a nⅡitrogen source to synthesize an iron-based ORR electrocatalyst. This catalyst showed excellent performance, and the ORR volumetric activity and mass-transport of the material were found to be further improved by introducing a zeolitic-imidazolate framework. Polyaniline was used as a nitrogen precursor by Wu et al. [27], by heat-treating this compound in the presence of a transition metal and a carbon support to obtain a product, which exhibited superior activity and stability as well as excellent four-electron selectivity. Pyrrole has also been investigated as a nitrogen precursor during the thermal synthesis of a nitrogen doped Fe-N/C-TsOH (ρ-toluenesulfonic acid) electrocatalyst that demonstrated high ORR catalytic activity and four-electron selectivity in an alkaline solution [28]. Chao et al. [29] synthesized a Co–N–C catalyst using an octahedral Co(Ⅱ) complex with 2, 6-bis(benzimidazole-2-yl)pyridine as the precursor. This Co/N-HCOs catalyst demonstrated a unique hollowed-out octahedral structure, which resulted in a large specific surface area and suitable pore structure, and thus led to better catalytic activity and superior stability compared with a commercial Pt/C catalyst in alkaline solution. Unni et al. [30] investigated melamine as a nitrogen precursor to prepare an electrocatalyst via doping with Fe and N at 900 ℃. The resulting Fe–N-single-walled carbon nanohorns showed a positive shift of 30 mV in onset potential and 20 mV in half-wave potential compared with Pt/C. Later, Yan et al. [31] constructed nitrogen-doped graphene hollow microspheres (NGHMs) using graphene oxide nanosheets (GONs) as carbon supports in conjunction with the pyrolysis of melamine and GON-wrapped polystyrene microspheres under a nitrogen atmosphere. The limiting current density of the resulting NGHMs was comparable to that of 40 wt% Pt/C sourced from the Johnson Matthey company, and the material exhibited excellent stability, attributed to its high nitrogen content and hollow sphere architecture.

Using nanodiamonds, melamine, boric acid and FeCl₃ as precursors, Liu et al. [32] synthesized a boron and nitrogen co-doped graphitic carbon/nanodiamond (BN-C/ND) catalyst through a simple one-step heat-treatment. The resulting material had a shell/core structure and exhibited high ORR activity in alkaline media in addition to enhanced electrochemical stability. Jiang et al. [33] prepared a highly active Fe−N−C ORR catalyst (Fe@C-FeNC) from carbon nanotubes, melamine and iron nitrate anhydrate. The catalyst contained Fe–N_x bonds and graphene-encapsulated Fe/Fe₃C (Fe@C) nanocrystals. A half-wave potential of 0.899 V was observed and 15 mV more positive than that of Pt/C. A template method was later used by Lee et al. [34] to synthesize M–N–C catalysts (M = Fe, Co), in which metal phthalocyanines, including FePc, CoPc and FeCoPc, were employed as the metal, nitrogen and carbon sources. Compared with commercial Pt/C, the FeCoPc-C exhibited a higher half-wave potential and a greater current density at 0.8 V, as a result of its large specific surface area and high metal and nitrogen species doping levels.

Most of the above M–N–C catalysts exhibited excellent ORR activities and stabilities that approached or even exceeded those of Pt-based catalysts. However, the high cost of the nitrogen precursors (macrocyclic compounds that are less expensive than precious metals but still not inexpensive), the complicated preparation processes (such as those using aniline or pyrrole, which require strong oxidants and long polymerization times), or the toxicity of the nitrogen sources (such as NH₃ and aniline) still hinder the commercialization of NMPCs.

The present work investigated the use of riboflavin (Vitamin B2, VB2, Fig. 1), which has the advantages of low cost, minimal toxicity, valid graphitic nitrogen, high N/C ratio and no need of polymerization process. This compound was applied, for the first time as both the carbon and nitrogen precursor to synthesize an ORR catalyst via one-step pyrolysis in the presence of anhydrous ferric chloride. The physicochemical properties and morphologies of the resulting catalyst were characterized and its electrochemical performance in alkaline media was assessed.

The catalysts, denoted as Fe–N–C–X where X = W_Fe/(W_Fe+ W_VB2) × 100%, with W being the precursor mass, were synthesized by one-step pyrolysis using riboflavin as the nitrogen and carbon precursor and ferric chloride as the transition metal precursor. In a typical synthesis, 1 g of riboflavin (Kelong Company, Chengdu, Sichuan, China, BR) was dispersed in ethanol, after that the transition metal precursor (FeCl₃, Shanpu Company, Shanghai, China, AR) was added. The resulting suspension was dried at 80 ℃ and then heated at a rate of 5 ℃ min^–1 to 800 ℃ and maintained at that temperature for 2 h under an argon flow. The resulting product was refluxed in 0.5 mol L^–1 HCl at 80 ℃ for 4 h, then washed with deionized water and dried at 70 ℃ overnight in a vacuum oven.

Thermogravimetric analysis (TGA) of the VB2/FeCl₃ mixtures was carried out using a SDTA851^e instrument between room temperature and 1000 ℃ in a N₂ atmosphere at a heating rate of 10 ℃ min^–1. The functional groups present in the riboflavin as well in the catalysts were identified by Fourier transform infrared (FTIR) spectroscopy with a Nicolet 6700 spectrometer. Raman spectra were obtained with a Renishaw inVia spectrometer using incident laser light at 514.5 nm. Nitrogen adsorption-desorption isotherms were acquired with a Quadrasorb SI instrument. The morphologies of the catalysts were observed using a Libra 200FE transmission electron microscope (TEM; Carl Zeiss SMT Pte., Ltd.) operated at 200 kV. X-ray diffraction (XRD) patterns were acquired with an X'Pert Pro MPD diffractometer using Cu K_α radiation. X-ray photoelectron spectroscopy (XPS) data were acquired with a Thermo Scientific ESCALAB 250Xi X-ray photoelectron spectrometer using an Al-K_α source.

The catalyst samples were made into inks by adding 25 μL of a Nafion® solution (5 wt%, Du Pont) to 1 mL of ethanol with ultrasonication for 15 min. Following this, 5 mg of catalyst powder was added with further ultrasonication for another 1 h to obtain a homogeneous ink. Finally, 48 μL of the ink was dropped onto a glassy carbon (GC) disk to form a uniform film at a catalyst loading of 1.2 mg cm^–2.

The ORR activity and stability of each catalyst was evaluated by linear sweep voltammetry (LSV) and by chronoamperometric (i–t) response data acquired using an AutoLab Potentiostat 302N (Metrohm, Holland) in a three-electrode system at room temperature. A GC disk with an area of 0.196 cm² and Pt wire were used as the working and counter electrode, respectively. A Hg/HgO electrode was used as the reference electrode in the alkaline electrolyte, while a Ag/AgCl electrode was used as the reference electrode in the acid electrolyte. In this paper, all potentials are reported relative to a reference hydrogen electrode (RHE) using the following equations [35].

(1)

(2)

When investigating the ORR activities of the catalysts in the alkaline electrolyte, the polarization plots were recorded in an oxygen-saturated 0.1 mol L^–1 KOH, with a potential step of 0.03 V from 0.16 to 1.16 V vs RHE, using a rotating disk electrode (RDE) at 1600 r min^–1. Prior to RDE tests, the electrocatalyst was swept for several cycles between 0.16 and 1.16 V at 50 mV s^–1 in argon-saturated 0.1 mol L^–1 KOH.

In the case of the acidic electrolyte, the polarization plots were recorded in an oxygen-saturated 0.5 mol L^–1 H₂SO₄, with a potential step of 0.03 V from 0 to 1 V vs RHE, again using an RDE at 1600 r min^–1. Before these trials, the electrocatalyst was swept for several cycles between 0 and 1 V at 50 mV s^–1 in an argon-saturated 0.5 mol L^–1 H₂SO₄.

For comparison, the electrochemical performance of a commercial 40 wt% Pt/C catalyst (Johnson Matthey) with a loading of 0.2 mg_Pt cm^–2 was also assessed.

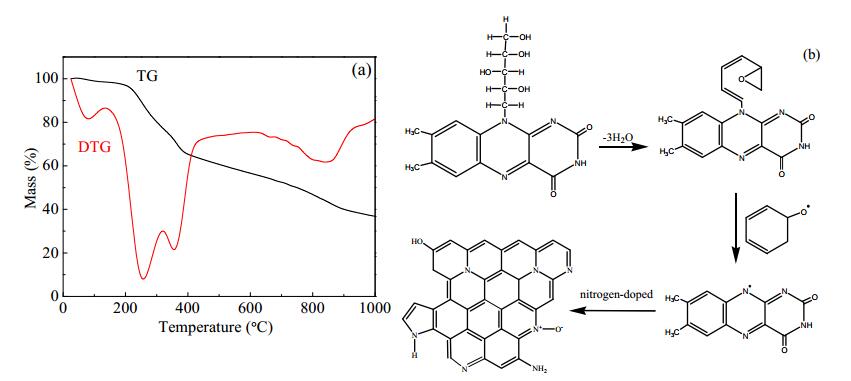

Fig. 2(a) summarizes the mass loss of a VB2/FeCl₃ mixture with increasing temperature, as determined by TG analysis and DTG analysis. From these data, four steps can be identified in the VB2 pyrolysis process. The first starts at 25 ℃ and reaches a plateau at ca. 120 ℃, with an associated mass loss of 3%, and can be assigned to the volatilization of absorbed water [36]. The second step, from 120 to 310 ℃ with a mass loss of 20% is related to the elimination of three water molecules from the side-chain, leading to the formation of a series of conjugated double bonds, while the third step at approximately 350 ℃ is attributed to the release of this conjugated side chain from the parent molecule [37]. The resulting isoalloxazine is carbonized in the presence of FeCl₃ as the temperature is further increased. The fourth step at approximately 800 ℃ likely involves the incorporation of nitrogen into the graphitized carbon, producing a nitrogen-doped carbon residue. The proposed reactions of the VB2/FeCl₃ mixture during heating are summarized in Fig. 2(b).

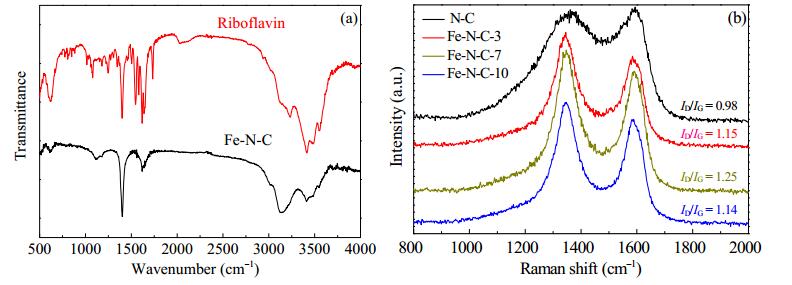

FTIR spectroscopy was used to investigate changes in the riboflavin structure during the heat-treatment. The spectra of riboflavin and of the Fe–N–C-7 catalyst are presented in Fig. 3(a). A C–O stretching peak is evident in the region 1071–1065 cm^-1 for both samples. Consistent with the TGA results, an O–H bending peak appears at 1220 cm^–1 in the FTIR spectrum of riboflavin but disappears after heating, which is related to the elimination of water from the side-chain. The band at 1403 cm^–1 in both the riboflavin and Fe–N–C-7 catalyst spectra is assigned to the C–N stretching vibration of the amide groups [38]. After the heat-treatment, the aryl H stretching peak at 1550 cm^–1 and the amide C=O stretching peak at 1730 cm^–1 both disappear as a consequence of the carbonization of the riboflavin. Furthermore, a medium intensitypeak attributed to the C=N– stretching vibration is evident at 1620 cm^–1[39] and a broad, high intensity band is observed in the vicinity of 3400 cm^–1, demonstrating the presence of adsorbed water.

The chemical structures and structural defects of the catalysts were investigated by Raman spectroscopy, and the Raman spectra of catalysts prepared with different nominal Fe levels are shown in Fig. 3(b). The G band at approximately 1586 cm^–1 is associated with the crystallinity of graphitic phases, while the D band at approximately 1351 cm^–1 corresponds to defects in the carbon phase. The Fe–N–C-7 catalyst shows a relatively high I_D/I_G ratio of 1.25 compared with those of the N–C (0.98), Fe–N–C-3 (1.15) and Fe–N–C-10 (1.14) catalysts, indicating a greater number of defects caused by doping with nitrogen, resulting in more ORR active sites.

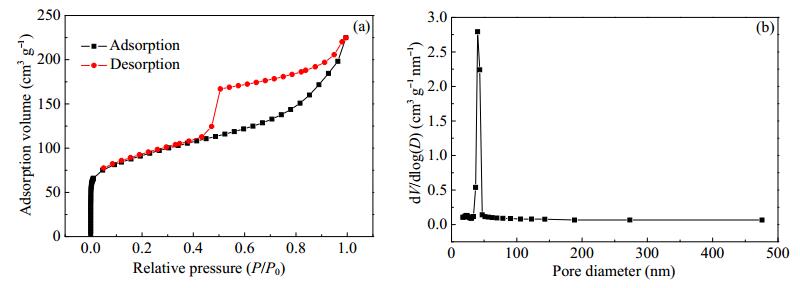

The specific surface area of the Fe–N–C-7 catalyst was determined from nitrogen adsorption-desorption isotherms, as shown in Fig. 4(a), and the resulting pore size distribution is presented in Fig. 4(b). The isotherm is a typical type Ⅳ curve, indicating that the catalyst was a mesoporous material. From Fig. 4(b), it can be seen that the pore size distribution was centered at 45 nm. The specific surface area was determined to be 301 m² g^–1 using the Brunauer-Emmett-Teller (BET) method. This high specific surface area would be expected to provide an adequately electrochemical active region and the mesoporous pore size should facilitate mass transport, both of which will tend to improve the electrochemical performance of the material.

The morphology of the catalyst was observed by TEM, as shown in Fig. 5, which demonstrates the sponge-like structure of this material. Two phases are evident. One is a loose, white, cloud-like phase, representing the VB2 pyrolysis product and consisting of very thin, curved, and porous carbon materials similar to graphene sheets. This phase was further characterized by XRD analysis. The other regions in this image represent Fe₂O₃ nanoparticles that encapsulated in the aforementioned carbon material and so not removed during the HCl leaching process.

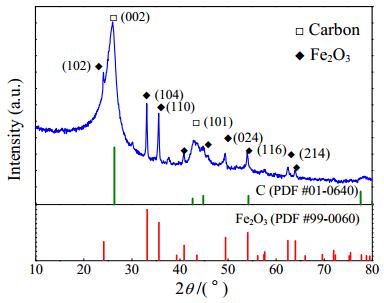

The XRD pattern of the Fe–N–C-7 catalyst and standard graphite carbon and Fe₂O₃ patterns are shown in Fig. 6. The diffraction peaks at 26° and 43° are characteristic of the (002) and (101) planes of graphitized carbon, and the strong, sharp (002) peak indicates that the carbon materials in the Fe–N–C-7 catalyst were highly graphitized [40]. Combined with the TEM image, these data demonstrate that the carbon was in the form of curved graphene sheets. This unique structure is expected to assist in promoting the ORR. The remaining diffraction peaks at 24.1°, 33.1°, 35.6°, 49.4°, 54.0° and 62.4° are in accordance with the (102), (104), (110), (024), (116) and (214) planes of Fe₂O₃, and so can be attributed to Fe₂O₃ nanoparticles generated from FeCl₃ during the mixing and heat-treatment processes [41]. These Fe₂O₃ particles must have been encapsulated by the graphitized carbon, because they were not removed by acid leaching.

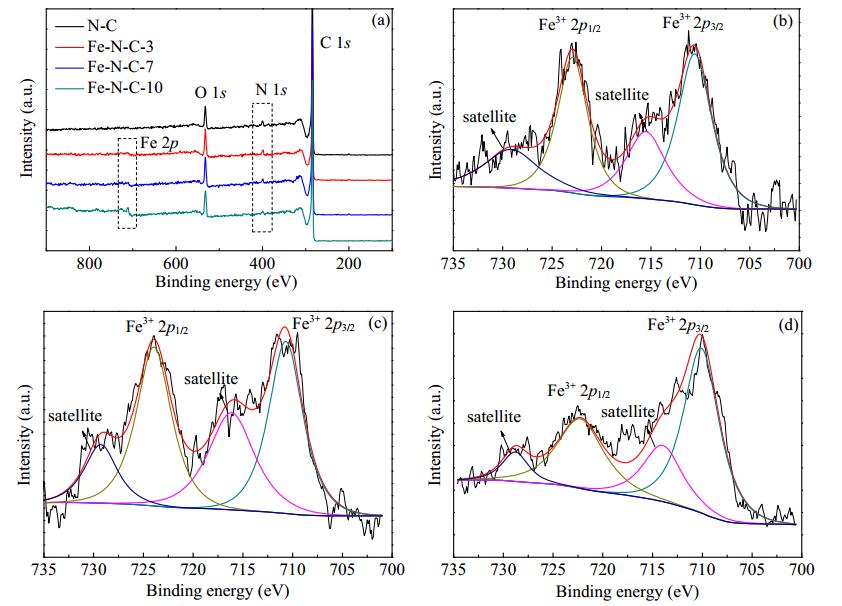

The composition and element binding energies of the Fe–N–C catalysts synthesized by addition of varying amounts of Fe precursor were analyzed by XPS. As shown in Fig. 7(a), the XPS survey spectra confirmed that all the catalysts consisted of carbon (C 1s = 290 eV), nitrogen (N 1s = 400 eV), oxygen (O 1s = 532 eV), and traces of iron (Fe 2p = 720 eV). The predominant C 1s peak appears at a binding energy of 290.0 eV, which is higher than the 284.5 eV carbon black peak, and this result can be partly attributed to the doping of nitrogen atoms into the carbon matrix. The higher electronegativity of nitrogen will affect the charge density of adjacent carbon atoms, which may be advantageous to the absorption of oxygen molecules and further enhance catalysis of the ORR. The proportions of these four elements are provided in Table 1. It can be seen that the concentrations of these elements decreased in the order of C > O > N > Fe. At a nominal Fe concentration of 7 wt%, the N content reached its maximum, which may also have contributed to increasing the ORR activity of this material. High-resolution Fe 2p spectra are shown in Fig. 7(b)–(d). It can be clearly seen that Fe 2p_3/2(~710.2 eV) and Fe 2p_1/2(~723.0 eV) peaks are present along with two satellites (~715.2 and ~729.0 eV), all attributable to Fe³⁺. These ions were presumably in the form of Fe₂O₃(corresponding to the XRD pattern). In addition, the Fe levels increase with increasing amounts of the initial Fe precursor. However, Table 1 also shows that only small amounts of Fe were contained in these materials, implying that Fe was present primarily in the form of Fe₂O₃ and was removed during acid leaching, and so only a trace of Fe was involved in the formation of Fe–N_x and/or CN_x.

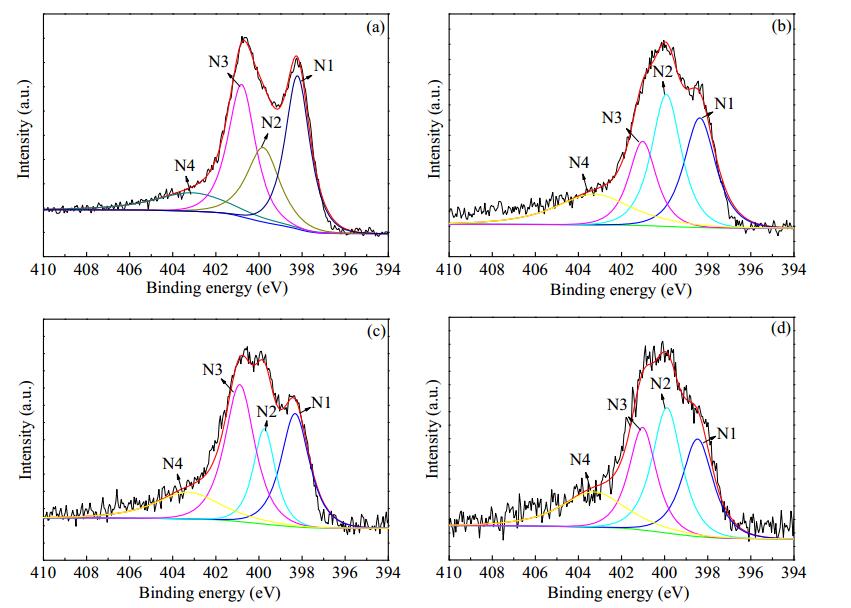

The chemical environment of an element will affect its binding energy. In the case of nitrogen-doped carbon materials, there are four types of nitrogen that can be considered, each with its own binding energy. These are pyridinic, pyrrolic, graphitic and oxidized nitrogen with binding energies of approximately 398.5, 399.9, 401.2 and 403.3 eV. Here, pyridinic, graphitic and pyrrolic nitrogen refer to nitrogen atoms doped at the edges of graphitic carbon layers with two adjacent carbon atoms, doped inside a graphitic carbon basal layer, and in a pentagon structure that contribute two p electrons to the π system, respectively. It is commonly held that oxidized nitrogen does not contribute to the ORR activity and that the total amount of nitrogen is not linked to ORR activity. Whether pyrrolic nitrogen affecting this activity or not is still in dispute. Therefore, pyridinic and graphitic nitrogen are assumed to be the main active sites for the ORR, although it is still not clear which one is predominant [42]. To further assess the roles of these different types of nitrogen in forming active sites and thus affecting the ORR performance, high-resolution N 1s XPS spectra of the as-prepared catalysts were acquired and are displayed in Fig. 8(a)–(d). Four types of nitrogen peaks can be fitted: pyridinic (N1), pyrrolic (N2), graphitic (N3), and oxidized nitrogen (N4). The proportions of these four types of nitrogen in the various catalyst samples are summarized in Table 2.

In the case of VB2 pyrolysis without Fe, the proportions of pyridinic, pyrrolic, graphitic and oxidized nitrogen were 0.336, 0.219, 0.324 and 0.121, respectively. Upon adding Fe to the VB2 prior to pyrolysis, the pyridinic nitrogen concentration remains almost constant at nominal Fe levels of 3 and 7 wt%, then decreases slightly at 10 wt% Fe. In the case of pyrrolic nitrogen, equivalent amounts are obtained with 3 and 10 wt% Fe, but a minimum is observed at 7 wt% Fe. The graphitic nitrogen content decreases in the following order of Fe addition: 7 wt% > 10 wt% > 3 wt%. These results are consistent with the relative order of ORR activities, indicating that graphitic nitrogen makes the greatest contribution to active sites for the ORR. Because oxidized nitrogen does not contribute to the ORR activity, it is not considered here [43]. According to Lai et al. [44], the presence of graphitic nitrogen affects the limiting current density while pyridinic nitrogen is related to variations in the on-set potential. From Table 2, we can see that there were no significant differences in the pyridinic nitrogen levels between catalysts made with varying amounts of the Fe precursor, indicating that their on-set potentials should be approximate equal. This was confirmed by the LSV data in Fig. 9(a). Comparing the ORR activities of catalysts prepared with varying Fe contents, it appears that the pyrrolic nitrogen might exhibit some limited ability to promote the ORR. The types and concentrations of nitrogen species in the catalyst obtained from direct VB2 pyrolysis were similar to those of the Fe–N–C-7 specimen. However, the ORR activities of the N–C and Fe–N–C-7 catalysts were very different. In the case of the catalyst obtained by VB2 pyrolysis without the addition of Fe, we can be sure that nitrogen species definitely functioned as active sites for the ORR, because this material demonstrated ORR activity in the absence of Fe, as shown in Fig. 9(a). However, the addition of the Fe precursor during VB2 pyrolysis resulted in Fe–N–C catalysts showing much better ORR activity. This result, combined with the XPS data, demonstrates that Fe not only plays an important role in the graphitization process but also serves to generate active ORR sites.

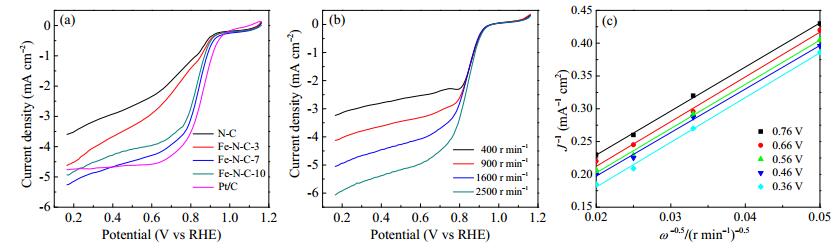

As noted, the present Fe–N–C catalyst was developed as a material that does not require precious metals to promote the ORR. The electrocatalytic ORR activities of Fe–N–C catalysts having different nominal Fe contents were therefore examined by LSV. The ORR polarization curves for the N–C, Fe–N–C-3, Fe–N–C-7 and Fe–N–C-10 specimens and for the commercial 40 wt% Pt/C in an O₂-saturated 0.1 mol L^–1 KOH electrolyte are presented in Fig. 9(a).

The ORR activity initially increased with Fe content and then decreased, reaching a maximum at 7 wt% Fe, based on assessments of the on-set potential, limiting current density and half-wave potential. At 0.66 V vs RHE, the current densities were -2.07, -2.53, -4.11 and –3.80 mA cm^–2 for the N–C, Fe–N–C-3, Fe–N–C-7 and Fe–N–C-10, respectively. Without the addition of the Fe precursor, the catalyst should only consist of nitrogen, carbon and oxygen, and yet the N–C catalyst demonstrated ORR activity, suggesting that N and C species can separately form active sites for the ORR in the absence of Fe. After adding the Fe precursor, the ORR activity was increased. This effect may have resulted from that the formation of additional active sites composed of Fe species or from changes in the catalyst microstructure and/or composition that in turn promoted the ORR activity of the material. The pyridinic and pyrrolic nitrogen levels were higher in the Fe–N–C-3 than in the Fe–N–C-10, while their oxidized nitrogen concentrations were equal, and the graphitic nitrogen concentration of the Fe–N–C-3 was less than that of the Fe–N–C-10. As stated above, the ORR activity of the Fe–N–C-3 catalyst was -2.53 mA cm^–2 at 0.66 V vs RHE, which was much lower than the value of -3.80 mA cm^–2 obtained from the Fe–N–C-10. Considering the XPS analysis results together with the ORR activity data, it appears that the ORR activity is affected by the graphitic nitrogen concentration. Comparing the Fe–N–C-3 and Fe–N–C-7 catalysts, it might be concluded that the pyrrolic nitrogen is not very active during the ORR although it is difficult to determine the activity of pyrrolic nitrogen species. In summary, both N and C species are active for the ORR, while Fe-based species also play important roles, even though the associated mechanism is not yet clear. Compared with the Pt/C catalyst, the on-set potential and the limiting current density of the Fe–N–C-7 were more positive, indicating an improved performance of this new material in an alkaline electrolyte and demonstrating that the Fe–N–C catalyst is a potential replacement for the more costly commercial Pt/C catalyst in alkaline electrolytes.

The ORR is a very complex process, involving four-electron and two-electron transfer pathways whether in an acidic or alkaline electrolyte. Under alkaline conditions, oxygen is reduced to OH^– in the presence of H₂O by a four-electron pathway, as shown in Eq. (3), which promotes the ORR. However, a two-electron pathway is inevitable as a side reaction, which will decrease the efficiency of the ORR, as shown in Eq. (4).

(3)

(4)

To further investigate the kinetics of electrochemical catalytic ORR using the Fe–N–C-7 catalyst, LSV was performed at different rotation rates. The LSV curves acquired in the O₂-saturated 0.1 mol L^–1 KOH solution are shown in Fig. 9(b). The current density evidently increased with rotation rate, which can be explained by a shortened diffusion distance at high rotation rates [45, 46]. In addition, the corresponding Koutecky-Levich (K-L) plots of J^–1 vs ω^–1/2 at different potentials exhibit good linearity together with parallelism, as shown in Fig. 9(c). This result suggests that the ORR proceeds via first-order reaction kinetics [47]. The number of electrons transferred per O₂ molecule can be calculated using Eqs. (5) and (6).

(5)

(6)

Here, J is the measured current density, J_K and J_L are the kinetic and diffusion-limiting current densities respectively, ω is the electrode rotation rate (r min^‒1), B is related to the diffusion-limiting current density, n is the number of electrons transferred per O₂ molecule, F is the Faraday constant (96485 C/mol), Do₂ is the oxygen diffusion coefficient, ν is the kinematic viscosity of the electrolyte, and Co₂ is the concentration of O₂ in the bulk. The constant value of 0.2 is adopted when the rotation rate is expressed in r min^–1. The electron transfer number (n) as determined from the K-L slopes was 3.9 in 0.1 mol L^–1 KOH, and this value is close to that of the commercial Pt/C catalyst (3.99), demonstrating that the Fe–N–C-7 catalyst exhibits a dominant four-electron oxygen reduction pathway in an alkaline medium. The high on-set potential and the nearly four-electron value reflect the excellent ORR activity and selectivity of the Fe–N–C catalyst. Therefore, riboflavin shows a promising nitrogen precursor for synthesis of the ORR catalysts.

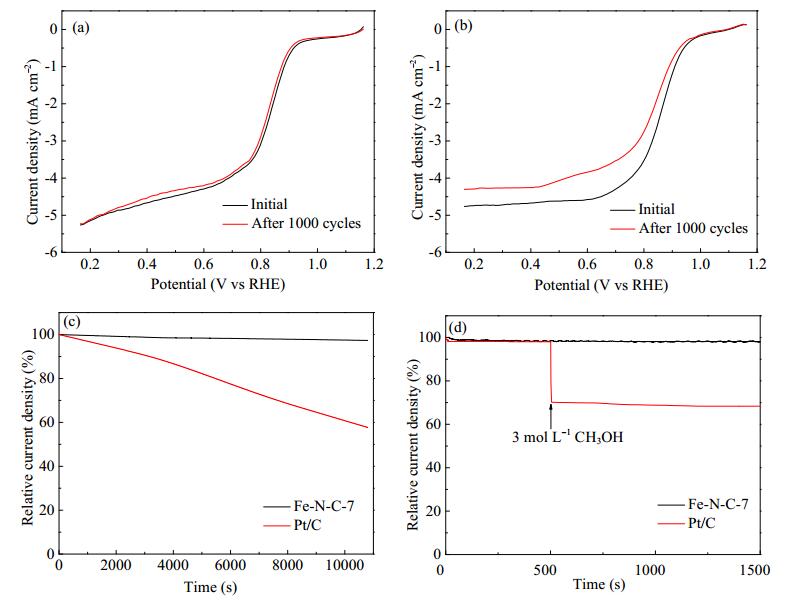

The stabilities of Fe–N–C-7 and Pt/C catalysts during the ORR were evaluated using LSV and chronoamperometric response (i–t) data acquired in a KOH electrolyte (0.1 mol L^‒1). The LSV curves before and after 1000 CV cycles are shown in Fig. 10(a) and (b). After 1000 cycles, the LSV data indicate only a 5 mV loss in the half-wave potential for the Fe–N–C-7 catalyst but a 60 mV loss in the case of the Pt/C catalyst. It is therefore obvious that the Fe–N–C-7 exhibits better stability in the alkaline electrolyte. The stabilities of the Fe–N–C-7 and commercial Pt/C catalysts were also assessed based on their chronoamperometric responses at a constant voltage over 10800 s in the O₂-saturated 0.1 mol L^–1 KOH solution at a rotation rate of 1600 r min^–1, as shown in Fig. 10(c). The Fe–N–C sample exhibited only minimal activity loss, retaining a high relative current density of 97% after 10800 s. In contrast, the commercial Pt/C catalyst lost nearly 40% of its initial activity, again indicating the superior stability of the Fe–N–C-7 catalyst. This improved stability of the Fe–N–C-7 catalyst can be attributed to its robust active sites. In addition, from Fig. 10(d), it can be seen that adding 1 mL of 3 mol L^–1 CH₃OH into 100 mL electrolyte at 500 s leads to a sharp drop of 28% in the relative current density of the commercial Pt/C. Conversely, the Fe–N–C-7 does not exhibit a loss, indicating that this material has much better methanol tolerance.

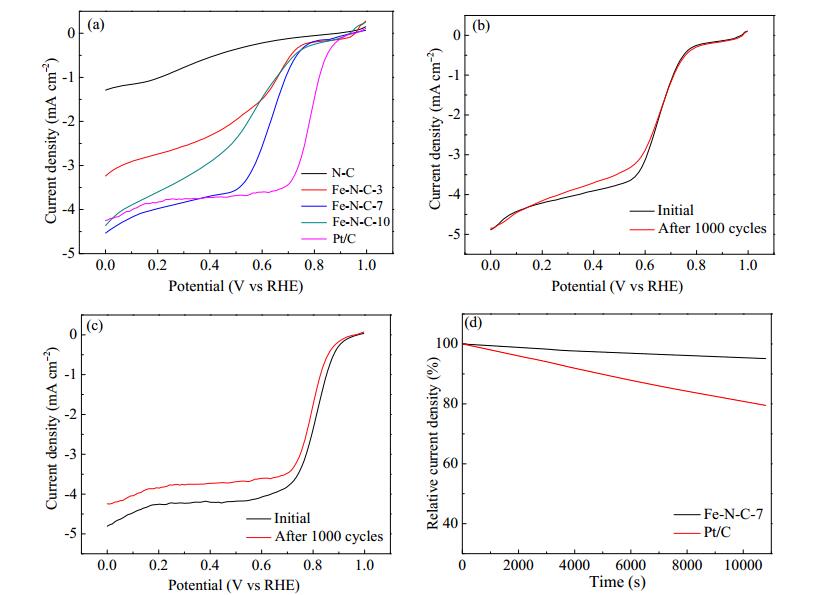

As shown in Fig. 11(a), at 0.5 V vs RHE, the current densities were –0.35, –1.96, –3.55 and –2.38 mA cm^–2 for the N–C, Fe–N–C-3, Fe–N–C-7 and Fe–N–C-10, respectively. Compared to the Pt/C catalyst, the half-wave potential of the Fe–N–C-7 is lower by 154 mV. Thus, the ORR activity of this material in an acidic medium will need to be improved in future research. The LSV curves before and after 1000 CV cycles are shown in Fig. 11(b) and (c). After cycling, the half-wave potential of the Fe–N–C was reduced by 10 mV compared to a loss of 25 mV in the case of the Pt/C, demonstrating that the Fe–N–C-7 exhibits better stability in the acidic electrolyte. Fig. 11(d) shows that the Fe–N–C catalyst undergoes only a slight loss of activity, retaining a high relative current density of 95% after 10, 800 s, while the Pt/C retains only 79% of its initial activity, again indicating superior stability of the Fe–N–C-7 catalyst in the acidic medium.

A series of efficient and cost-effective ORR catalysts was successfully synthesized through the pyrolysis of riboflavin in the presence of anhydrous iron chloride. Having a unique, cloud-like morphology, the catalysts demonstrate a high degree of ORR activity, remarkable stability and a dominant four-electron oxygen reduction pathway in alkaline media. XPS analysis and assessment of the ORR activities of catalysts with different Fe contents have demonstrated that graphitic N and Fe-containing active sites are critical to promoting the ORR. The outstanding electrochemical performance of this material together with the facile preparation technique suggests that these catalysts could potentially replace Pt/C catalysts in practical applications.
