Indoor air quality has become a serious issue owing to the increasing amount of time people spent indoors. Formaldehyde (HCHO) is a common volatile organic compound (VOC) presence in indoor air, which poses serious risks to human health [1, 2]. Thus, removal of indoor HCHO has attracted considerable attention in the field of environment protection. Various methods of air purification, including catalytic oxidation [3-5], photocatalytic oxidation [6, 7], and plasma oxidation [8, 9] have been investigated for elimination of HCHO from air. However, considering the low concentration and long-term release of HCHO in indoor environments, most air purification methods are unsuitable for practical applications to indoor HCHO removal owing to their high operating temperatures and requirements for expensive noble metals [10-12].

Recently, ozone catalytic oxidation (OZCO), which involves reactions between active species from ozone, such as active oxygen atoms and hydroxyl radicals, and adsorbed VOCs can readily proceed at room temperature without the use of noble metal catalysts. This method is regarded as a promising alternative technique for low temperature oxidation of VOCs [13-15]. Great efforts have been devoted to the elimination of benzene [16-18], toluene [19, 20], and formaldehyde [21] by the OZCO approach. In our previous work, we demonstrated that ozone can completely oxidize HCHO into CO₂ and H₂O over a manganese oxide (MnO_x) catalyst at room temperature [22]. Supported MnO_x is the most commonly used catalyst in OZCO of VOCs because of its superior ozone decomposition ability [23-26]. Nevertheless, the utilization of ozone in a conventional OZCO reaction is greatly depressed because HCHO is normally present at low concentrations indoors. This might lead to energy wasted on ozone production and cause secondary pollution owing to a continuous exhaust of incompletely decomposed ozone into the air.

To improve ozone utilization, effectively reduce energy costs, and minimize secondary pollution caused by undecomposed ozone during the HCHO removal process, in this work we used a cycled storage-OZCO approach to eliminate HCHO. The cycled HCHO storage-OZCO process was conducted over a supported MnO_x/Al₂O₃ catalyst at room temperature and included two stages, namely, a HCHO storage stage and an OZCO stage. In the storage stage, a low concentration of HCHO in the air was first adsorbed on the MnO_x/Al₂O₃ surface. Subsequently, at the OZCO stage, stored species, including formate and dioxymethylene (DOM), from HCHO adsorption were converted into CO₂ and H₂O by ozone oxidization [27]. The MnO_x/Al₂O₃ adsorption sites were regenerated to allow further storage in the next cycle. This storage-OZCO process offers two main advantages for overcoming the limitations encountered by conventional continuous OZCO methods. First, ozone is supplied only at the OZCO stage; thus, the consumption of ozone and associated energy costs are considerably reduced. Second, at the OZCO stage, a large amount of surface species, accumulated during the storage stage, can react with oxidative species from ozone decomposition effectively over a relatively short period. This effect not only facilitates an improvement of ozone utilization compared with the continuous OZCO reaction, but also considerably reduces pollution caused by undecomposed ozone. Therefore, we expect that cycled storage-OZCO processes could be used for indoor HCHO purification. To the best of our knowledge, the removal of low concentrations of HCHO using a cycled storage-OZCO process has not yet been reported.

In this work, γ-Al₂O₃ supported MnO_x catalysts were prepared by an incipient wetness impregnation method. To examine the effects of the manganese precursor, manganese(Ⅱ) nitrate (mass fraction 50%, Mn(NO₃)₂) and manganese(Ⅱ) acetate (Mn(CH₃COO)₂) were used as the precursors. The impregnated samples were first aged at room temperature for 15 h, and then dried at 110 ℃ for 6 h. The dried samples were then calcined at 500 ℃ for 4 h in air to obtain fresh MnO_x/Al₂O₃ catalysts.

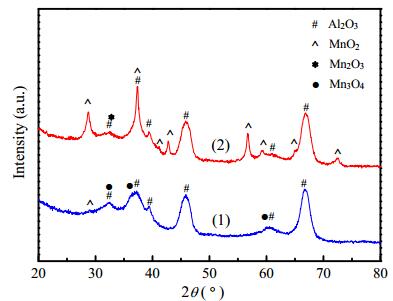

The phase composition of the MnO_x/Al₂O₃ catalysts was identified by X-ray diffraction (XRD) with use of a PANalytical Empyrean diffractometer with a Cu K_α radiation source. The XRD patterns were collected in the 2θ range of 20°–80° at a scanning rate of 5°/min with Cu K_α radiation (λ = 0.154 nm) at 40 kV and 40 mA. Brunauer-Emmett-Teller (BET) surface areas of the catalysts were measured by N₂ adsorption-desorption isotherms at −196℃ (Micromeritics ASAP 2020 V3.01, USA). Before the measurements, the samples were first pretreated at 350 ℃ for 10 h under vacuum. X-ray photoelectron spectroscopy (XPS; ESCALAB250 ThermoVG, USA) was performed with an Al K_α X-ray source (1486.6 eV), operated at 15 kV and 300 W, to examine the surface chemical states of the MnO_x/Al₂O₃ catalysts. The samples were first outgassed overnight under a vacuum of 10⁻⁵ Pa and then tested in the analytical chamber of the XPS spectrometer under 10⁻⁸ Pa. The binding energies were calibrated against the XPS spectra of the C 1s peak at 284.6 eV. Temperature programmed oxidation (TPO) experiments were performed over the catalysts after one HCHO storage-OZCO cycle. The used catalysts were first purged with a dry simulated air stream (20% O₂ balance N₂) at a flow rate of 250 mL/min at room temperature for 30 min before the TPO test. Subsequently, a temperature programed course was performed in simulated air (100 mL/min) from room temperature to 350 ℃ with a constant rate of 5 ℃/min. The gas products were monitored online with a CO_x analyzer (S710, SICK/MAIHAK, Germany).

Diffuse reflectance infrared Fourier-transform (DRIFT) spectra of the MnO_x/Al₂O₃ catalysts during the cycled HCHO storage-OZCO process were recorded by an FT-IR spectrometer (Nicolet 6700, Thermo Fisher, USA) with an MCT detector operated at a resolution of 4 cm⁻¹ from 4000 to 1000 cm⁻¹. Fresh MnO_x/Al₂O₃ samples were placed in a DRIFT cell (equipped with KBr windows) and pretreated with 200 mL/min Ar at 500 ℃ for 2 h and then cooled down to room temperature. Before the DRIFT measurements, the samples were further treated with 200 mL/min simulated air (containing 150 ppm O₃) for 1 h. The background reference was collected with a fresh MnO_x/Al₂O₃ sample at room temperature in simulated air (200 mL/min). Subsequently, two HCHO storage-OZCO cycles were conducted. At the storage stage, 200 mL/min of simulated air (containing 15 ppm HCHO) was flowed through the catalyst for 1 h. At the OZCO stage, 200 mL/min of simulated air (containing 150 ppm O₃) was used to oxidize the catalyst for 30 min.

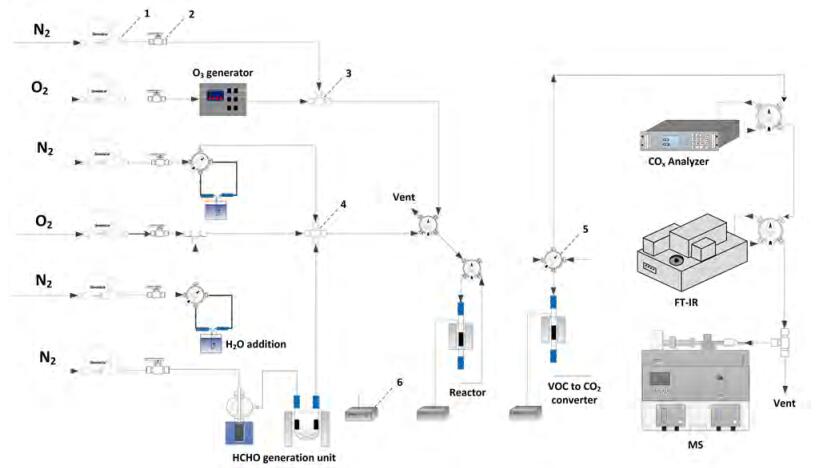

Fig. 1 illustrates a schematic diagram of the experimental setup used in the cycled storage-OZCO process. The HCHO used in this work was produced by depolymerization of trioxymethylene vapor in a N₂-diluted gas stream. The depolymerization reaction was conducted at 160 ℃ over glass pellets coated with 85% phosphoric acid [28]. The HCHO was completely converted into CO₂ by a homemade VOC-to-CO₂ converter (10%Cu/10%Mn/γ-Al₂O₃ catalyst) at 400 ℃ to measure its concentration, and the CO₂ concentration was monitored by the CO_x analyzer and used to determine the initial HCHO concentration in the feed gas. Ozone was generated from pure O₂ with a home-made ozone generator [24, 28], and its concentration was tested online with a FT-IR spectrometer (IGS, Thermofisher, USA) equipped with a gas cell with an optical path length of 2 m. The gas flow rates were controlled by mass flow controllers (Seven Star Co., China). The amount of water in the gas was adjusted by changing the flow rates of the carrier gas which flowed through a water bubbler, measured online with a dew point hygrometer (653-2, Testo, Germany) and expressed as relative humidity (RH) at 23 ℃.

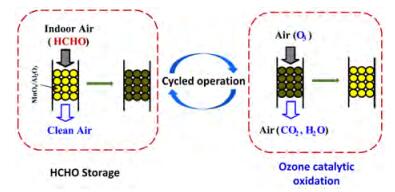

A schematic diagram of the cycled storage-OZCO process for HCHO removal is shown in Fig. 2. Experiments were conducted in a one-way flow fixed-bed quartz reactor (8 mm internal diameter) at room temperature and atmospheric pressure. A 1-mL portion of the MnO_x/Al₂O₃ catalyst was loaded into the tube reactor. Before the storage experiment, MnO_x/Al₂O₃ was first pretreated with 250 mL/min stimulated air for 2 h at 500 ℃ and then switched to 150 ppm of ozone in simulated air streams (250 mL/min) for 1 h. At the storage stage, a low concentration of HCHO in simulated air (containing 15 ppm HCHO) with 450 mL/min flowed through the catalyst bed at a gas hourly space velocity (GHSV) of 27000 h⁻¹. During the OZCO stage, a gas mixture (250 mL/min) of 150 ppm O₃, 20% O₂, balance N₂ was used to oxidize the catalyst bed at a GHSV of 15000 h⁻¹, and the outlet gaseous products were analyzed online by the CO_x analyzer and FT-IR spectrometer.

According to our previous works [27-29], the HCHO breakthrough capacity (n_b), carbon balance (B_C) and selectivity for CO (S_CO) and CO₂ (S_CO2) were defined as follows:

(1)

(2)

(3)

(4)

where C_HCHO is the inlet concentration of HCHO; F₁ is the total flow rate at the storage stage; t_b and V_cat. represent the breakthrough time and catalyst volume, respectively. In this work, the breakthrough time was defined as the time when the outlet HCHO concentration reached 10% of its initial concentration. Furthermore, where C_CO and C_CO2 are the outlet concentrations of CO and CO₂ during the OZCO stage; F₂ and t₂ denote the total flow rate and oxidation period during the OZCO stage, respectively.

The cycled storage-OZCO process was performed over MnO_x/Al₂O₃ catalysts in this work because the excellent ozone decomposition activity of manganese oxides catalysts is favorable for highly efficient oxidation of HCHO. The breakthrough capacity and OZCO performance of the MnO_x/Al₂O₃ catalysts are two important criteria for the cycled storage-OZCO process. The type of manganese precursor and the loading content of the manganese play important roles in the OZCO reaction over MnO_x/Al₂O₃ catalysts according to literature reports [19, 30, 31]; thus, we studied their effects on HCHO storage and the following OZCO performance in this work to screen for an optimal MnO_x/Al₂O₃ catalyst. Additionally, the influence of RH on the storage-OZCO process was also investigated owing to the critical role of H₂O in practical HCHO storage and OZCO processes. Unless otherwise specified, the results of the HCHO breakthrough capacity and OZCO performance over all catalysts were obtained with the first storage-OZCO cycle performed at room temperature and a RH of 50%.

It has been recognized that the manganese precursors can affect OZCO reactions over supported MnO_x catalysts because commonly used nitrate and acetate precursors lead to distinct phases and dispersions of MnO_x during preparation [19, 30]. For the manganese oxide catalysts used in this work, the manganese precursor not only affected their activity at the OZCO stage, but also influenced the HCHO breakthrough capacity at the storage stage. As a result, supported MnO_x catalysts with a Mn loading of 10% were prepared with manganese nitrate and manganese acetate as the precursors, denoted as MN/Al₂O₃ and MA/Al₂O₃, respectively. Fig. 3 shows XRD patterns of the MA/Al₂O₃ and MN/Al₂O₃ catalysts. It shows that the diffraction peaks of Al₂O₃ were observed for all samples according to the JCPDS data of PDF #50-0741. For MA/Al₂O₃, peaks were also observed at 32.3°, 36.0°, and 59.9°, corresponding to Mn₃O₄ (PDF #24-0734), indicating that the manganese acetate precursor mainly forms a Mn₃O₄ phase. On the basis of the Debye-Scherrer equation, we determined the primary particle size to be 6.0 nm from the diffraction peak at 32.3°. The diffraction peaks of MnO₂ (PDF #24-0735) and Mn₂O₃ (PDF #41-1442) appeared in the XRD results of MN/Al₂O₃, and a primary particle size of approximately 9.5 nm was calculated from the peak at 28.7°. Thus, the MA/Al₂O₃ contained manganese in a low oxidation state with a smaller particle size than that of MN/Al₂O₃. This result is in agreement with observations reported by Rezaei et al. [30] and Einaga et al. [31].

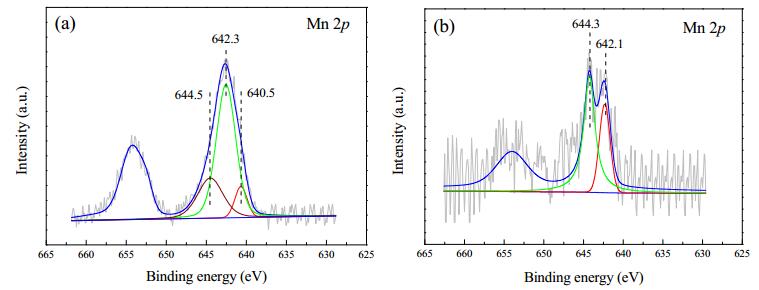

To determine the chemical binding states of the Mn atoms, the MA/Al₂O₃ and MN/Al₂O₃ catalysts were examined by XPS. The spectra of Mn 2p are shown in Fig. 4, and the distribution of Mn²⁺, Mn³⁺ and Mn⁴⁺ species on the catalyst surfaces were calculated and are summarized in Table 1. In the Mn 2p spectra of MA/Al₂O₃, the peaks at 640.5, 642.3 and 644.5 eV were assigned to Mn²⁺, Mn³⁺ and Mn⁴⁺, respectively. However, the Mn 2p spectra of MN/Al₂O₃, featured only a peak for Mn³⁺ at 642.1 eV and peak for Mn⁴⁺ at 644.3 eV. Although Mn⁴⁺ and Mn³⁺ were observed in both samples, there was a notable difference in their contents. As listed in Table 1, the contents of Mn³⁺ and Mn⁴⁺ in MA/Al₂O₃ were approximately 75% and 12%, respectively, and 35% and 65% in MN/Al₂O₃. These results suggest that the manganese acetate precursor is more favorable for forming Mn in a lower oxidation state under the same preparation conditions, which is consistent with the XRD results.

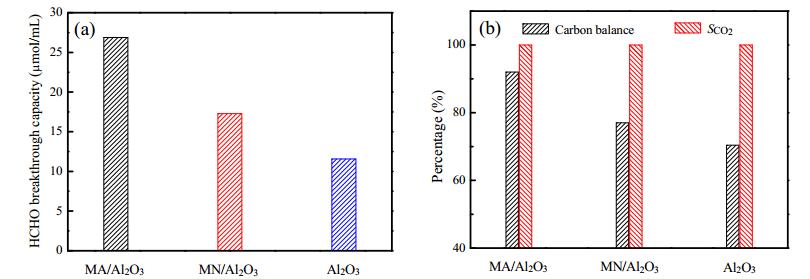

For the storage-OZCO process conducted at a RH of 50% and at room temperature, the HCHO breakthrough capacity, carbon balance and selectivity for CO₂ over different catalysts are shown in Fig. 5. The oxidation period at the OZCO stage was set to be 50 min for the MA/Al₂O₃ and MN/Al₂O₃ catalysts, which was sufficient to remove adsorbed species from the MnO_x catalyst surface. As shown in Fig. 5(a), the HCHO breakthrough capacity of Al₂O₃ was only 11.6 μmol/mL, while the HCHO breakthrough capacity for 10% MA/Al₂O₃ and 10% MN/Al₂O₃ increased to 26.9 and 17.3 μmol/mL, respectively. The Al₂O₃ supported manganese oxide catalysts possessed much better HCHO breakthrough capacities than that of pure Al₂O₃. Because HCHO was mainly stored on the catalyst surface as partially oxidized HCOO⁻ and DOM species during storage [27, 32], the stronger oxidation ability of the manganese oxides inevitably led to an increase of the HCHO breakthrough capacity when loaded on Al₂O₃. Fig. 5(a) also shows that the MA/Al₂O₃ catalyst had a larger HCHO breakthrough capacity than that of the MA/Al₂O₃ catalyst at the same Mn loading. This may be attributed to the better dispersion of MA/Al₂O₃, which provided more sites for adsorption of HCHO. At the OZCO stage, Fig. 5(b) illustrates that MA/Al₂O₃ achieved a carbon balance of approximately 92%, while the carbon balance values for MN/Al₂O₃ and Al₂O₃ were only 78% and 70%, respectively. The higher carbon balance of the manganese oxide catalysts can be attributed to their excellent ozone decomposition ability, which provided more oxidative species for the OZCO reaction. The low oxidation states of Mn in MA/Al₂O₃ likely also contributed to the carbon balance results [19]. With respect to the selectivity for products, no CO was detected during the entire OZCO stage and all samples exhibited 100% selectivity for CO₂ (as shown in Fig. 5(b)). The performance of MA/Al₂O₃ suggested that adsorbed species on the surface during the storage stage were efficiently removed and converted into CO₂ at the OZCO stage. This effect is essential to the operation of a cycled storage-OZCO process. Conversely, a poor carbon balance for MN/Al₂O₃ and Al₂O₃means that a large number of adsorption sites remain occupied and might lead to a gradual decrease of the breakthrough capacity over repeated cycling processes.

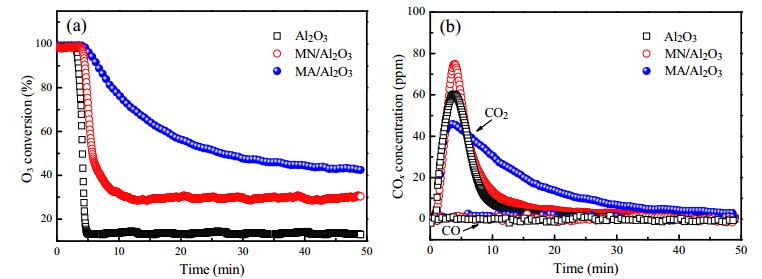

To further understand the removal process of adsorbed species over the catalysts, the concentration evolution of ozone and CO_x as a function of time were monitored during the OZCO stage. As shown in Fig. 6(a), for Al₂O₃ and MN/Al₂O₃, ozone was totally decomposed within the initial 10 min, which corresponded to a rapid increase of the CO₂ concentration in Fig. 6(b) (the concentrations of CO₂ reached 60 and 75 ppm within 5 min, respectively). This result suggested that the stored HCHO/HCOO⁻/DOM species on the catalyst surface were effectively removed by ozone during this period. However, further prolonging the treatment time markedly reduced both the ozone conversion and CO₂ concentration because the remaining surface species were difficult to completely eliminate. In the case of MA/Al₂O₃, the decomposition of ozone and the release of CO₂ exhibited a slow decrease after reaching a maximum (45 ppm of CO₂ concentration) during the OZCO stage. This result indicates that the stored species could be eliminated more thoroughly over MA/Al₂O₃ and explains the better carbon balance of the MA/Al₂O₃ catalyst. Figure 6(a) shows that the final ozone conversion values over MA/Al₂O₃, MN/Al₂O₃ and Al₂O₃ were 43%, 30% and 14%, respectively. These results reflect the higher ozone decomposition ability of MA/Al₂O₃, which likely originates from the high content of Mn in a low oxidation state. As reported in the literature [19, 33], the decomposition of ozone can be expressed by Eq. (5)−Eq. (7). Manganese in a relatively low oxidation state can transfer electrons to ozone more readily (Eq. (5)), thus facilitating ozone decomposition.

(5)

(6)

(7)

Notably, no CO was produced during the OZCO stage for all catalysts, as shown in Fig. 6(b). On the basis of the above results, it can be inferred that supported manganese oxide catalysts prepared from manganese acetate precursors show a much better HCHO breakthrough capacity and OZCO performance than that from manganese nitrate. Thus, the MA/Al₂O₃ catalyst was used for the following study.

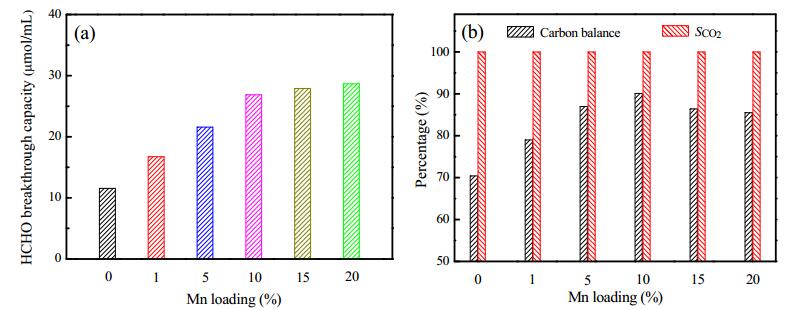

The loading of Mn is another important factor, which affects the HCHO storage and OZCO reaction. A single storage-OZCO cycle was performed over MA/Al₂O₃ catalysts with different Mn loadings at a RH of 50% at room temperature. The HCHO breakthrough capacity, carbon balance, and selectivity for CO₂ over different MA/Al₂O₃ catalysts are shown in Fig. 7. According to Fig. 7(a), during the storage stage, pure Al₂O₃showed the lowest HCHO breakthrough capacity of 11.6 μmol/mL. As the Mn loading was increased from 1% to 10%, the HCHO breakthrough capacity increased monotonically from 16.8to 26.9 μmol/mL. However, a further increase of the loading to 20% produced a smaller improvement of 1.7 μmol/mLto the HCHO breakthrough capacity. Because a high Mn loading can provide more active sites for HCHO adsorption, an enhancement of the HCHO breakthrough capacity with increased loading can be expected. However, a high Mn loading would also decrease the surface area and thus reduce the dispersion of the manganese oxide to some extent. As listed in Table 2, the surface area decreased from 182.37 to 138.02 m²/g and the pore volume decreased from 0.83 to 0.56 cm³/g for the MA/Al₂O₃ catalysts as the Mn loading was respectively increased from 0 to 20%. A high catalyst loading might even block pores of the Al₂O₃ support owing to the formation of large MnO_x particles over the catalyst surface [34]. As a result, the dispersion of manganese oxides on the Al₂O₃ surface decreased at high Mn loading. At the OZCO stage, 100% CO₂ selectivity was obtained at various Mn loadings, as shown in Fig. 7(b). As the Mn loading was increased, the carbon balance first increased to a maximum (92%) at a loading of 10% and then started to decrease for further increases of loading. This decrease was likely because the MA/Al₂O₃ with a 10% Mn loading possessed sufficient active sites to enable the OZCO reaction and simultaneously provide an appropriate MnO_x dispersion. The effects of the precursor and Mn loading on the MnO_x/Al₂O₃ catalysts indicated that 10% MA/Al₂O₃ was the optimal catalyst loading for cycled HCHO storage-OZCO processes.

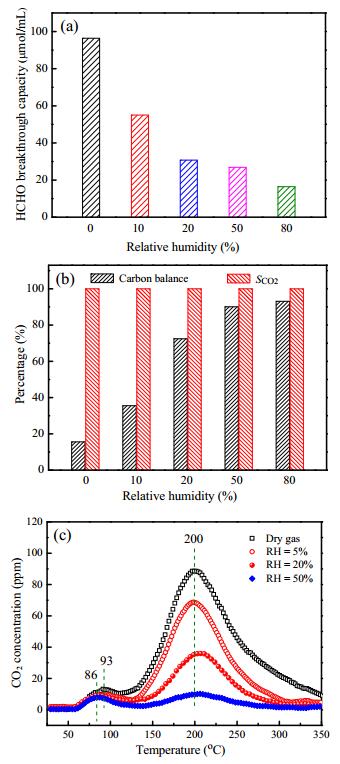

According to our previous works [28, 29], RH plays an important role in the storage-discharge plasma catalytic process. In this study, the effects of RH on HCHO breakthrough capacity and OZCO performance on MA/Al₂O₃ were investigated and the corresponding results are shown in Fig. 8. Owing to the competitive adsorption between moisture and HCHO over the MA/Al₂O₃ surface, the presence of H₂O inevitably led to a reduction of the HCHO breakthrough capacity. As observed from Fig. 8(a), during the storage stage, the HCHO breakthrough capacity was substantially reduced from 96.4 to 16.5 μmol/mL when the RH was switched from 0% to 80%. Conversely, the increase of RH had a positive effect on the OZCO stage. As shown in Fig. 8(b), CO₂ selectivities of 100% were achieved over MA/Al₂O₃ at various RH conditions, while the carbon balance showed a remarkable improvement as the RH was increased. The carbon balance was only 15% when dry gas was used during the OZCO stage; however, the value increased to 94% as the RH was increased to 80%. This result indicates that the presence of H₂O resulted in a more complete oxidative removal of surface species stored on the MA/Al₂O₃. The TPO analyses for the MA/Al₂O₃ catalysts applied at different RH during the OZCO stage also supported this interpretation. From the TPO profile shown in Fig. 8(c), two CO₂ peaks occurred at approximately 90 and 200 ℃, which could be assigned to oxidation of surface HCHO/HCOO⁻ species and the decomposition of carbonate species, respectively [22]. As the RH was increased, the first peak shifted to a low temperature range and its area decreased slightly, indicating that the presence of H₂O during the OZCO stage reduced the accumulation of surface HCHO/HCOO⁻ species and enabled them to be removed more easily. More importantly, the carbonate species on the MA/Al₂O₃surface showed a marked decrease as the RH increased (as shown in Fig. 8(c)). This result suggested that the HCHO adsorbed during the storage stage could be largely eliminated at high RH, and thus facilitated a good carbon balance results during the OZCO stage. The positive effects of RH on the OZCO process indicate that a more favorable oxidation pathway for HCHO became available in the humid gas stream. According to our previous work [22], carbonate species gradually accumulated during the OZCO reaction in the dry air stream (as shown in Fig. 8(c)), which could have contributed to the poor carbon balance in this study. However, in a humid air stream, OH radicals formed from ozone and the moisture facilitated oxidization of HCHO to unstable bicarbonate species rather than carbonate species. These bicarbonate species could readily decompose to release CO₂. Therefore, a greatly reduced amount of carbonate species on the catalyst surface and excellent carbon balance were obtained during the OZCO stage at high RH. Considering the much higher H₂O concentration than that of HCHO in indoor air, a RH of 50% was applied to the cycled storage-OZCO process.

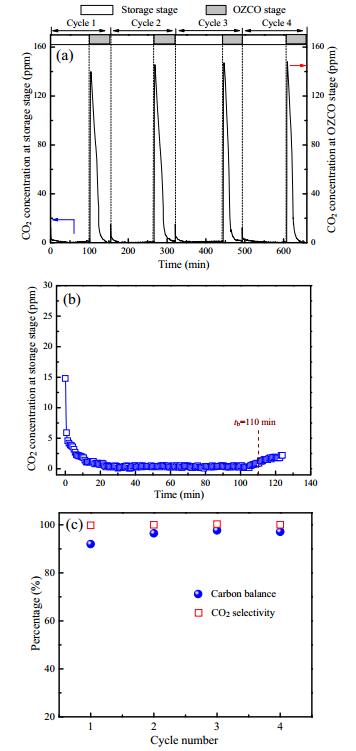

In the above-mentioned experiments, HCHO storage and the following OZCO were performed over Al₂O₃ supported manganese oxides catalysts for the purpose of screening optimal catalysts and parameters for a cycled process. To test the practicality of this proposed process, four HCHO storage-OZCO cycles were conducted over the selected 10% MA/Al₂O₃ catalyst at room temperature and a RH of 50%. As shown in Fig. 9(a), 15 ppm HCHO in a humid simulated air stream was adsorbed by the MA/Al₂O₃ catalyst during the storage stage. The breakthrough time remained almost constant at 110 min over the four cycles, indicating the good stability of the MA/Al₂O₃ catalyst during the cycled storage-OZCO processes. Furthermore, considering that a much lower concentration of HCHO is typically present in indoor air (at the ppb level), much longer breakthrough times might be expected. For the 150 ppm ozone treatment during the OZCO period, the stored HCHO/HCOO⁻ species were rapidly oxidized and released as CO₂ and H₂O. Thus, an intense CO₂ peak with a maximum concentration of about 160 ppm was observed during this stage. The OZCO stage lasted for approximately 50 min of each cycle. It should be noted here that a CO₂ release occurred at the beginning of each HCHO storage stage. Fig. 9(b) shows a typical storage curve of HCHO over the MA/Al₂O₃ catalyst at 50% RH. The CO₂ concentration rapidly increased to approximately 15 ppm when switching to the HCHO storage stage, then decreased to 1.4 ppm within 10 min and subsequently exhibited very low values ( < 0.4 ppm) until the breakthrough (~1.5 ppm) at 110 min. The extremely low CO₂ concentration (~0 ppm) after its rapid release during the storage stage suggested that the HCHO was completely oxidized to CO₂ or adsorbed to catalyst surface at this stage. The initial CO₂ release could be attributed to reactions occurring between active oxygen species on the MA/Al₂O₃ surface and the adsorbed HCHO. However, as the surface active oxygen species were gradually consumed, adsorbed HCHO cannot be completely oxidized to CO₂ and negligible amounts of CO₂ were detected. In this work, we also consider the completely oxidized HCHO during the storage stage in the HCHO breakthrough capacity because the conversion of adsorbed HCHO into CO₂ does not contribute to pollution.

The carbon balance and selectivity for CO₂ in these four cycles are illustrated in Fig. 9(c). The selectivity for CO₂ conversion in the four cycles was 100%, and no CO was detected over the entire process, indicating that regeneration of the MA/Al₂O₃ catalyst by ozone didn't cause secondary pollution from CO. Fig. 9(c) also shows that the carbon balance values of these four cycles were 92%, 97%, 98% and 97%, respectively. The carbon balance values of cycles 2–4 were better than that of the first cycle and much closer to 100%. This result suggests that the HCHO storage-OZCO process over the MA/Al₂O₃ catalyst stabilized after the first cycle, and the adsorbed HCHO was completely removed by ozone at room temperature. Here, the adsorption of HCHO on the fresh catalysts likely formed strongly adhered surface species at certain sites, which could not be removed by the OZCO reaction at room temperature. This blocking of sites resulted in a relatively low carbon balance for the first storage-OZCO cycle. Fortunately, once these species were formed at the first storage stage, the MA/Al₂O₃ catalyst exhibited a carbon balance of almost 100% in the following storage-OZCO cycles.

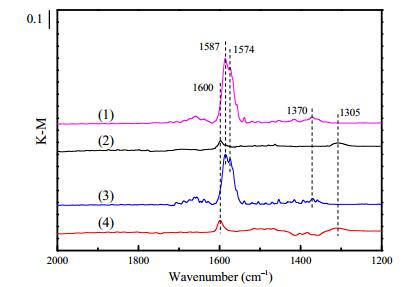

In this work, the species formed on the MA/Al₂O₃ catalyst surface might be attributed to mono-or bidentate carbonate species which possess a relatively high decomposition temperature (200 ℃) as illustrated in Fig. 8(c). The DRIFT spectra clearly showed variation of surface species over the catalysts during cycling of HCHO storage-OZCO process. Fig. 10 shows the DRIFT spectra of the MA/Al₂O₃ catalyst after HCHO adsorption and OZCO in the first and second cycles. Owing to the adsorption and partial oxidation of HCHO on the catalyst surface, a fresh sample after HCHO adsorption (curve (1)) showed intense IR peaks from formate species at 1587, 1574, and 1370 cm⁻¹[27]. After OZCO (curve (2)), the bands from adsorbed formate species disappeared, while new IR peaks from surface carbonate species appeared at 1600 and 1305 cm⁻¹ with a relatively weak intensity [35, 36]. These two peaks could not be removed even with a long OZCO period (1 h), suggesting that they corresponded to strongly adhered surface species on the MA/Al₂O₃ catalyst. In the second cycle, the IR bands of the formate species appeared again after HCHO adsorption (curve (3)). Notably, the IR bands of the carbonate species after OZCO in the second cycle (curve (4)) exhibited a similar intensity to that of the first cycle. This result indicates that strongly adhered carbonate species were mainly formed during the first cycle and did not accumulate with increasing cycles of the HCHO storage-OZCO process. This finding might explain the excellent carbon balance obtained after the first HCHO storage-OZCO cycle.

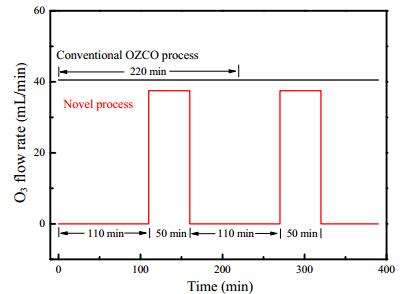

To directly compare the ozone utilization of our novel storage-OZCO process and a conventional OZCO process, the ozone flow rates as a function of time for these two processes are illustrated in Fig. 11. According to our continuous OZCO experiments, at least 90 ppm of ozone is required to completely eliminate 15 ppm HCHO from 450 mL/min simulated air at RH of 50%. Thus, an ozone flow rate of approximately 40.5 μL/min is required for the conventional OZCO process and 37.5 μL/min for the OZCO stage of our new process. From Fig. 11, we calculated that, over the 220 min reaction period, 8910 μL of ozone would be consumed by the conventional OZCO process. Using our novel process, we could eliminate the same amount of HCHO from the simulated air with two HCHO storage-OZCO cycles, consuming only 3750 μL of ozone. Thus, the new process can reduce ozone consumption by almost 60% compared with the conventional OZCO process. Furthermore, only 40% of the ozone was decomposed during the continuous OZCO reaction, which could lead to secondary pollution because of the continuous exhaust of incompletely decomposed ozone into the air. Conversely, the novel process not only exhibited a higher ozone conversion (as shown in Fig. 6(a)) but also possessed a much shorter OZCO period, which could alleviate the effects of secondary pollution from undecomposed ozone. Furthermore, the OZCO stage could be further shortened in a practical HCHO storage-OZCO process because the majority of adsorbed HCHO was removed within the first 30 min of the process (as shown in Fig. 6(b)). This suggests that both ozone consumption and secondary pollution from undecomposed ozone in the novel process could be further reduced.

In view of the excellent performance of the cycled HCHO storage-OZCO processes over supported manganese oxide catalysts in the preliminary experiments, we believe that the storage-OZCO process is a promising approach for practical HCHO elimination and might be developed into a reliable and economical indoor air purification technique.

A novel process of cycled storage-OZCO was applied to low concentration HCHO removal over MnO_x/Al₂O₃ catalysts at room temperature. The effects of the manganese precursor and loading on the storage-OZCO process were investigated to screen out optimal MnO_x/Al₂O₃ catalysts. Characterization by XRD and XPS indicated that the manganese oxide catalysts prepared from acetate precursors showed a smaller MnO_x particle size and possessed a Mn³⁺ content of 75%. These factors contributed to their good performance in HCHO storage and OZCO compared with the performance of a catalyst formed from a nitrate precursor. The high ozone decomposition ability and excellent carbon balance for the MA/Al₂O₃ catalystwas attributed to a high content of Mn in a low oxidation state. Increasing the Mn loading of the MA/Al₂O₃ catalyst had a positive effect on the HCHO breakthrough capacity, while a 10% Mn loading exhibited the best carbon balance during the OZCO stage. The competitive adsorption of H₂O with HCHO led to a gradual decrease of the breakthrough capacity as RH increased. However, at high RH (≥50%) an excellent carbon balance at the OZCO stage was achieved owing to a favorable oxidation pathway for HCHO.

Four HCHO storage-OZCO cycles were conducted over the 10% MA/Al₂O₃ catalyst at room temperature to test the feasibility of the cycled storage-OZCO process. We showed that a low concentration of HCHO could be efficiently and steadily eliminated over four-cycles of the storage-OZCO process without forming secondary pollution from CO. Our new approach represents a 60% saving of ozone usage compared with that of continuous OZCO reactions. Thus, we successfully demonstrated that cycled storage-OZCO processes are an economical, reliable and promising indoor air purification technique.
