Synergic effects of CuxO electron transfer co-catalyst and valence band edge control over TiO2 for efficient visible-light photocatalysis
Lina Konga, Xintong Zhangb, Changhua Wangb, Fangxu Wanb, Lan Lia
a. Institute of Material Physics, Key Laboratory for Optoelectronic Materials and Devices of Tianjin, Key Laboratory of Display Materials and Photoelectric Devices of Ministry of Education, College of Materials Science and Engineering, Tianjin University of Technology, Tianjin 300191, China;
b. Center for Advanced Optoelectronic Functional Materials Research, and Key Laboratory of UV-Emitting Materials and Technology of Ministry of Education, Northeast Normal University, Changchun 130024, Jilin, China
* Corresponding author. Xintong Zhang, Tel: +86-431-85099772;E-mail:xtzhang@nenu.edu.cn; Lan Li, Tel:+86-22-60215338;E-mail:lilan@tjut.edu.cn
Foundation item: This work was supported by the National Natural Science Foundation of China (51072032, 51372036, 51702235)
Abstract: Bandgap engineering by doping and co-catalyst loading are two primary approaches to designing efficient photocatalysts by promoting visible-light absorption and charge separation, respectively. Shifting of the TiO2 conduction band edge is frequently applied to increase visible-light absorption but also lowers the reductive properties of photo-excited electrons. Herein, we report a visible-light-driven photocatalyst based on valance band edge control induced by oxygen excess defects and modification with a CuxO electron transfer co-catalyst. The CuxO grafted oxygen-rich TiO2 microspheres were prepared by ultrasonic spray pyrolysis of the peroxotitanate precursor followed by a wet chemical impregnated treatment. We found that oxygen excess defects in TiO2 shifted the valence band maximum upward and improved the visible-light absorption. The CuxO grafted onto the surface acted as a co-catalyst that efficiently reduced oxygen molecules to active intermediates (i.e., O2·-radial and H2O2), thus consuming the photo-generated electrons. Consequently, the CuxO grafted oxygen-rich TiO2 microspheres achieved a photocatalytic activity respectively 8.6, 13.0 and 11.0 as times high as those of oxygen-rich TiO2, normal TiO2 and CuxO grafted TiO2, for degradation of gaseous acetaldehyde under visible-light irradiation. Our results suggest that high visible-light photocatalytic efficiency can be achieved by combining oxygen excess defects to improve visible-light absorption together with a CuxO electron transfer co-catalyst. These findings provide a new approach to developing efficient heterojunction photocatalysts.
© 2017, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: Visible light photocatalysis     TiO2     CuxO cocatalyst     Oxygen-excess defect     Porous microsphere
基于CuxO电子转移助剂及TiO2价带边调控的协同效应驱动可见光催化
孔丽娜a, 张昕彤b, 王长华b, 万方旭b, 李岚a
a. 天津理工大学材料科学与工程学院, 材料物理研究所, 显示材料与光电器件教育部重点实验室, 天津市光电显示材料与器件重点实验室, 天津 300191;
b. 东北师范大学物理学院, 先进光电子功能材料研究中心, 紫外光发射材料与技术教育部重点实验室, 吉林长春 130024
摘要:TiO2基光催化剂迈向实际应用的关键在于更加有效地分离电荷和拓宽光吸收范围至可见光区域.通过担载助剂促进光生电荷分离以及掺杂调控能带、提高可见光吸收是实现高性能光催化剂的两个重要途径.在众多助剂中,廉价、无毒且催化性能优异的过渡金属氧化物(如Co-,Ni-,Cu-和Fe-氧化物)助剂在光催化降解污染物、水分解、CO2还原等领域尤其引人关注.而氧缺陷作为氧化物的固有缺陷,可实现TiO2的能带调控,提升可见光吸收性能.其中,常见的缺氧缺陷是通过导带边调控来拓宽可见光吸收范围,但其光生电子还原能力降低.因TiO2价带空穴具有足够强的氧化能力,本文拟通过在TiO2中引入富氧缺陷调控价带边及担载电子转移助催化剂的途径研制高效可见响应型光催化剂. 本文利用超声喷雾热解过氧钛酸和湿化学浸渍法制备了CuxO负载富氧型TiO2微球.采用扫描电子显微镜(SEM),透射电子显微镜(TEM),N2吸附-脱附等温曲线,X射线衍射(XRD),X射线光电子能谱(XPS),紫外可见漫反射光谱(UV-Vis-DRS)等手段对CuxO负载富氧型TiO2微球的结构特征和光谱吸收性质进行系统研究.SEM,TEM和N2吸附/脱附等温曲线结果表明,CuxO负载富氧型TiO2微球是纳米颗粒紧凑堆叠的介孔微球,直径为200-2000 nm,Cu元素高度均匀分散于微球上.XRD和XPS分析表明,富氧缺陷TiO2微球相比参照TiO2微球具有更大的晶格参数,同时晶体中具有大量的过氧物种(Ti-O-O),证明了过氧缺陷的存在.UV-Vis-DRS和XPS的价带谱验证,富氧缺陷使得TiO2价带顶上移,提高了可见光吸收性能.鲁米诺化学发光(CL)探针实验进一步证明,表面负载的CuxO助剂将表面吸附氧高效还原为活性氧物种(O2·-和H2O2),提高了光生电子利用率.因此,CuxO负载富氧型TiO2微球表现出更快的可见光催化降解乙醛速率,分别为富氧型TiO2、非富氧型TiO2和CuxO-TiO2的8.6、13.0和11.0倍.并且,CuxO负载富氧型TiO2微球在可见光催化降解乙醛的五次循环实验中,活性基本保持不变.CuxO负载富氧型TiO2微球在模拟太阳光和UV光辐照下光催化降解乙醛速率相比富氧型TiO2微球也大幅提升,分别提升4.6和2.7倍.CuxO负载富氧型TiO2微球光催化性能增强归因于富氧缺陷和CuxO电子转移助催化剂的协同作用.其中,富氧缺陷使得TiO2价带边上移,拓宽可见光吸收范围,CuxO电子转移助剂引入界面电荷转移和多电子氧还原过程,加速光生电子利用率,促进光生电荷分离.该策略也为开发其他高效异质结光催化剂提供参考.
关键词可见光催化    TiO2    CuxO助催化剂    富氧缺陷    介孔微球

1 Introduction

Semiconductor oxides, in particular TiO2, possess excellent activity and stability for photocatalytic applications, but are limited by rapid charge recombination and the requirement for UV light irradiation [1-8]. Co-catalysts are known to provide electrons/holes trap sites, which can promote charge transfer, and inhibit charge recombination [9-12]. Noble metals are effective and commonly used co-catalysts; however, the use of these materials is limited by their costliness and scarcity [13-15]. Recently, noble-metal-free materials, such as transition metals, transition metal sulfides and oxides, and carbon-based materials have been widely studied as co-catalysts for degradation of toxic-substances, water splitting, and CO2 conversion [16-20]. Therein, transition metal oxides (e.g., Co-, Ni-, Cu-, and Fe-oxides) are promising co-catalysts owing to their earth-abundant nature, low-toxicity, and highly efficient charge transfer properties [21-29]. These co-catalysts can also render TiO2 sensitive to visible-light, albeit weakly, by introducing a pathway for photoinduced interfacial charge transfer [30]. Based on the surface modification by electron transfer co-catalysts and conduction band edge control by donor defects, it is possible to simultaneously realize electron transfer and visible-light response from TiO2 [31-33]. Hashimoto et al. [31] obtained efficiency visible-light TiO2 photocatalysts by combining a metal oxide nanocluster co-catalyst with conduction band edge control over TiO2. We also studied the synergistic effects of the Fe-species co-catalyst and surface oxygen vacancy defects on TiO2 photocatalysts under visible light irradiation [32]. However, this strategy is potentially limited by the decreased reduction ability of electrons at donor defect sites and the difficultly of achieving one-electron reduction of absorbed oxygen molecules to superoxide radicals.

Oxygen defects are intrinsic and fundamental defects in TiO2 (and other semiconductor oxides) for bandgap engineering and modifying photoelectric properties [34-37]. In addition to the use of oxygen-deficient defects in TiO2 for conduction band edge control, oxygen excess defects also offer a way to improve visible-light absorption through valence band edge control, because TiO2 has a sufficiently high photo-oxidizing capacity [38-42]. Etacheri et. al. [38] reported that oxygen-rich TiO2 features a higher valence band maximum (VBM), high temperature stability, and enhanced visible-light photocatalytic activity. Tan et. al. [39] also verified that oxygen-rich TiO2 had high photo-activity towards CO2 reduction under visible-light irradiation. Wang et. al. [40] fabricated oxygen-rich TiO2 nanoparticles with Ti vacancies, which exhibited p-type conduction characteristics and a shifted valence band (VB) edge. Moreover, oxygen-rich TiO2 is highly stable owing to the large energy of formation of oxygen excess defects [41]. Therefore, it is hypothesized that, combining co-catalysts to improve electron transfer and raising the valance band edge by the introduction of oxygen excess defects for visible-light absorption is a potential strategy to enhance the photocatalytic activity of TiO2.

To date, the main strategies for obtaining oxygen-rich TiO2 have been limited to calcination of peroxo-titania xerogels or solvothermal methods [38-41]. There is a need to developed simple and high-yield strategies for the fabrication of oxygen-rich TiO2 with favorable particle dispersions and large surface areas. Ultrasonic spray pyrolysis (USP) is a powerful and easy-to-operate method for producing microspheres [43-45]. With the use of USP, microspheres become stacked with a large amount of small nano-grains, which exhibit a porous structure with a well-dispersed and homogeneous composition distribution [46-48]. Moreover, co-catalysts are more uniformly supported on the microspheres owing to their porous structure. Herein, we combine a CuxO co-catalyst with TiO2 microspheres containing oxygen excess defects by USP of a peroxo titanate precursor followed by a wet chemical impregnation treatment. The oxygen excess defects shifted the valence band maximum of the TiO2 upward and improved the visible-light absorption. The CuxO acted as an electron transfer co-catalyst, inducing multi-electron reduction of the oxygen molecule, thus promoting charge separation. In this way, the combination of oxygen excess defects and the CuxO co-catalyst promoted the photocatalytic activity of TiO2 microspheres for degradation of gaseous acetaldehyde under visible light irradiation.

2 Experimental
2.1 Preparation of normal and oxygen-rich TiO2 microspheres

The USP method was used to prepare normal and oxygen-rich TiO2microspheres. Fig. 1 shows a schematic representation of the fabrication procedure. For the normal TiO2microspheres, 7.9 mL of TiCl4 (99.9%) was gently injected into 500 mL ice water to obtain a transparent aqueous solution, then, 50 mL of NH3∙H2O (25 wt%) was added and a white precipitate was formed. This white precipitate was a titanate precursor (TP), which was washed well with deionized water to remove Cl- and NH4+. The TP aqueous solution was atomized by an ultrasonic nebulizer, and the mist passed through an 800 ℃ quartz tube, resulting in the formation of white normal TiO2 microspheres (named as TP-TiO2) from the electrostatic collecting device. For the oxygen-rich TiO2 microspheres, 100 mL of H2O2 (30 wt%) was dissolved into the TP aqueous solution to obtain a peroxo titanate precursor (PTP). The oxygen-rich TiO2 microspheres (denoted as PTP-TiO2) were also obtained by ultrasonic spray pyrolysis of the PTP aqueous solution with the same USP process used to produce the TP-TiO2 microspheres. The PTP-TiO2microspheres were calcined at 500 ℃ under an air atmosphere. The freshly prepared PTP-TiO2 microspheres and those calcined for 10 and 60 min are denoted as PTP-TiO2-Fresh, PTP-TiO2-10 min, and PTP-TiO2-60 min, respectively. In comparison, the normal TP-TiO2 sample was only calcined at 500 ℃ for 60 min.

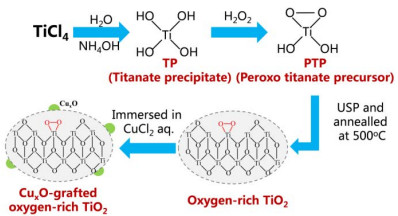

Fig. 1. Synthesis procedure of the oxygen-rich TiO2 and CuxO-grafted oxygen-rich TiO2 microspheres.
2.2 Loading CuxO co-catalyst on TP-TiO2 and PTP-TiO2 microspheres

The CuxO was deposited on the surface of the TP-TiO2-60 min and PTP-TiO2-60 min microspheres by a wet chemical impregnated route. The samples were dispersed into CuCl2 aqueous solution (mass fraction of Cu compared with TiO2 was 0.1 wt%) and the mixture was stirred at 90 ℃ for 1 h. The suspension was washed with distilled water and dried at 110 ℃ for 24 h. Afterwards, the CuxO-TP-TiO2 and CuxO-PTP-TiO2 microspheres were obtained. We also prepared 0.25-, 0.5-, and 1 wt% CuxO-grafted PTP-TiO2-60 min microspheres by the same approach.

2.3 Characterization

The morphology of the samples were studied with a scanning electron microscope (SEM; FEI Quanta250 instrument), transmission electron microscope (TEM; JEOL JEM-2100 instrument). Inductively coupled optical emission spectrometry (ICP-OES; Leeman, Plodigy ICP) measurement was conducted to determine Cu content. The samples were digested by 10-mL of nitric acid (68%), 10-mL of nitric acid (37%) and 5-ml of hydrofluoric acid (40%) at 150 ℃ for 3 h. The obtained solution was diluted and fed into the ICP-OES and the RF power was set to 1200 W with a plasma gas flow rate of 15 L min-1. The N2 adsorption-desorption isotherms was measured in a micromeritics ASAP 2020 analyzer at –196 ℃. Brunauer-Emmett-Teller (BET) specific surface area, pore volumes (VP), and pore diameters (DP) of the samples were evaluated from the adsorption branches of the nitrogen isotherms based on the BET and Barrett-Joyner-Halenda (BJH) model). X-ray diffraction (XRD; Rigaku, D/max-2500 X-ray diffractometer) was measured at a scan rate of 1°/min in steps of 0.002°. The lattice parameters of the samples were calculated with Unitcell software. Unitcell is a program which refines lattice parameters from powder diffraction data by a non-linear least squares method. Fourier transform infrared (FTIR) spectra were recorded using a Nicolet Magna 560 FTIR spectrometer. X-ray photoelectron spectroscopy (XPS) experiments were performed on a VGESCA LAB MKII instrument with an Mg Kα ADES ( = 1253.6 eV) source. UV-vis diffuse reflectance (DR) spectra of the samples were collected on a PerkinElmer UV WinLab spectrophotometer, and BaSO4 was used as a reference.

2.4 Photocatalytic measurements

The photocatalytic activity was evaluated in a 500-mL gas-tight top-irradiation-type reaction vessel with an quartz window and contained with the synthetic air (O2/N2, 20:80, vol/vol) under ambient conditions, allowing for visible, simulated solar, and UV light irradiation. The target volatile organic compound (VOC) was 200 ppm of the acetaldehyde gas. Samples of catalyst (100 mg) were spread over a 2 cm2 area for irradiation in the presence of the target pollutant gas and kept in the dark for 30 min. A 150 W xenon lamp (Hayashi LA-410) was used to simulate solar irradiation (100 mW/cm2), with a 400-nm long-pass and 380-nm short-pass filters for visible-light (100 mW/cm2, λ > 400 nm) and UV light (3 mW/cm2, λ < 380 nm) irradiation, respectively. The acetaldehyde gas and the evolved CO2 were analyzed by a gas chromatograph (Shimadzu, GC-2014C). The photostability of the CuxO-grafted PTP-TiO2 microspheres was evaluated through five cycles of gaseous acetaldehyde degradation under visible-light irradiation.

2.5 Luminol chemiluminescence (CL) probe method

The formation of O2∙- and H2O2 of the as-synthesized samples was monitored by with a luminol CL probe during photocatalytic reactions under visible-light (100 mW/cm2, λ > 400 nm) irradiation. The CL intensity of luminol was detected with fluorescence spectrophotometer (Jobin Yvon FL3). Typically, 20 mg of photocatalyst was dispersed in an ethanol/water mixture (1:9, vol/vol; 20 mL, pH = 3.0). After ultrasonication (10 min) and O2 bubbling (10 min), the solution was irradiated by visible-light and continuously stirred. Every 2 h, 1 mL of sample was extracted and filtered for detection. The luminol (7 mmol/L, 98%), peroxidase (1 mg/mL, POD, horseradish), and sodium phosphate buffer (pH = 8.0) were prepared for the following detection.

Measurements of O2∙-

Immediately after visible-light irradiation, 1 mL of filtered sample, 0.95 mL of phosphate buffer, and 0.05 mL of luminol were mixed and stirred for 10 s. The CL intensity of the luminol excitation at 310 nm and emission at 425 nm were detected with the fluorescence spectrophotometer and used to calculate the concentration of O2∙- generated during irradiation.

Measurements of H2O2

A 1-mL portion of filtered sample was extracted and stored in the dark for 30 min after irradiation because the O2∙-disappeared within 30 min of its formation. Then 0.05-mL of luminol (7 mmol/L) was added. The sample was again stored for 10 min in dark. A 0.05-mL portion of the POD and 0.9 mL of phosphate buffer were then injected into the sample and stirred for 10 s. The CL intensity of the luminol, corresponding to the amount of H2O2, was then detected by the fluorescence spectrophotometer.

Calibration of the CL intensity

A 1-mL portion of the sample solution (ethanol/water mixture, 1/9 vol/vol, pH = 3.0), 0.05 mL of H2O2 (0, 20, 100, 200 mmol/L), 0.05 mL of luminol (7 mmol/L), 0.05 mL of POD (1 mg/mL), and 0.9 mL of phosphate buffer (pH = 8.0) were mixed and stirred for 10 min. Then, the CL intensity of the samples was detected with a fluorescence spectrophotometer. The observed CL intensity was plotted as the function of the concentration of H2O2. The resulting CL intensity corresponded to the concentrations of O2∙- and H2O2.

3 Results and discussion

USP with the PTP and TP precursors was used to fabricate PTP-TiO2 and normal TP-TiO2 microspheres, respectively. Fig. 2(a) shows an SEM image of the PTP-TiO2-60 min microspheres. The microspheres were spherical with a diameter of 200–2000 nm. The TP-TiO2 microspheres had a similar morphology to that of the PTP-TiO2-60 min microspheres. Fig. 2(b) shows that the as-synthesized microspheres were porous and compactly stacked with numerous small nanoparticles, as previously reported [42, 48]. The crystal form of the PTP-TiO2-60 min was assigned to anatase TiO2 according to the high-resolution TEM (HRTEM) images, shown in Fig. 2(c) [49, 50]. We selected four different concentrations of CuxO for grafting onto the surface of PTP-TiO2-60 min. ICP-OES elemental analysis indicates that the weight fractions of Cu relative to TiO2 were 0.035 wt%, 0.067 wt%, 0.152 wt%, and 0.545 wt%. The measured values were smaller than the starting stoichiometric ratios (0.05 wt%, 0.1 wt%, 0.25 wt%, and 1 wt%). Among these CuxO ratios, we mainly discussed the CuxO-PTP-TiO2 with 0.1 wt% of Cu in the following. And, we denote the CuxO-PTP-TiO2 sample as containing 0.1 wt% of the CuxO. According to the HRTEM image shown in Fig. 2(d), a small amount of CuxO clusters were observed on the surface of the CuxO-PTP-TiO2 microspheres. Energy dispersive X-ray elemental (EDS) mapping obtained by TEM (Figs. 2(e)(h)) confirmed the presence and even dispersion of Cu over the CuxO-PTP-TiO2 microspheres. This feature is desirable for achieving the full potential of the co-catalyst.

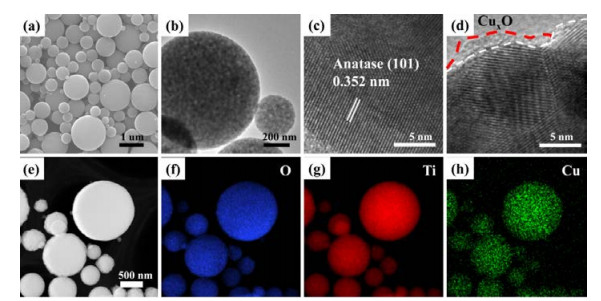

Fig. 2. SEM (a), TEM (b), HRTEM (c) images of PTP-TiO2-60 min microspheres; HRTEM (d) and TEM (e) images of the CuxO-PTP-TiO2 microspheres; (f–h) TEM-EDS mapping of the O, Ti, and Cu elements in CuxO-PTP-TiO2 microspheres.

In addition, the BET specific surface area and porous structure of the PTP-TiO2-60 min and CuxO-PTP-TiO2 were confirmed by nitrogen adsorption-desorption isotherms. The specific surface areas of PTP-TiO2-60 min and CuxO-PTP-TiO2 were found to be 19.8185 and 22.3678 m2/g, respectively. The N2 adsorption-desorption isotherms in Fig. 3 were type IV of the Brunauer-Deming-Deming-Teller (BDDT) classification, indicating the existence of mesopores in both PTP-TiO2-60 min and CuxO-PTP-TiO2 microspheres [51]. The pore size distributions were calculated by the Barrett-Joyner-Halenda (BJH) method and are shown in the inset of Fig. 3. Both PTP-TiO2-60 min and CuxO-PTP-TiO2 exhibited a pore size distribution in the range of 1–10 nm centered at approximately 5 nm.

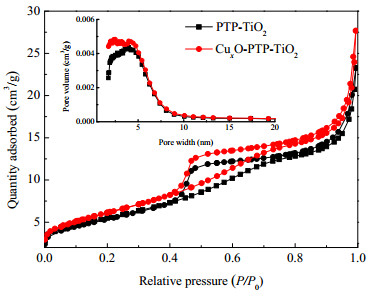

Fig. 3. N2 adsorption-desorption isotherms of the PTP-TiO2-60 min and CuxO-PTP-TiO2 microspheres. Inset shows the size pore distribution curves.

Fig. 4(a) shows XRD patterns of the TP-TiO2, PTP-TiO2, and CuxO-PTP-TiO2 microspheres. The PTP-TiO2-Fresh without calcination was amorphous. After annealing at 500 ℃ for 10 min, the PTP-TiO2-10 min exhibited anatase crystallinity. As the annealing time was extended, anatase peaks of the PTP-TiO2-60 min become sharper, and traces of rutile (4.2%) become visible. The XRD patterns showed no obvious differences among the CuxO-PTP-TiO2 and PTP-TiO2-60 min samples. We believe these similarities could be attributed to the very low CuxO content and its high dispersion. However, the normal TP-TiO2-60 min exhibited only an anatase phase. A slight rutile phase in PTP-TiO2-60 min suggested the promotion of a phase transformation from anatase to rutile phase induced by H2O2 [52]. The diffraction peaks of PTP-TiO2 shifted to lower angles compared with those of normal TP-TiO2, as shown in Fig. 4(b) indicating lattice expansion. The lattice parameters of the PTP-TiO2 samples were calculated with the Unitcell software, and are listed in Table 1. Lattice expansion of the PTP-TiO2 samples was proposed to explain the formation of oxygen-excess defects in the TiO2lattice sites through pyrolysis of the PTP precursor.

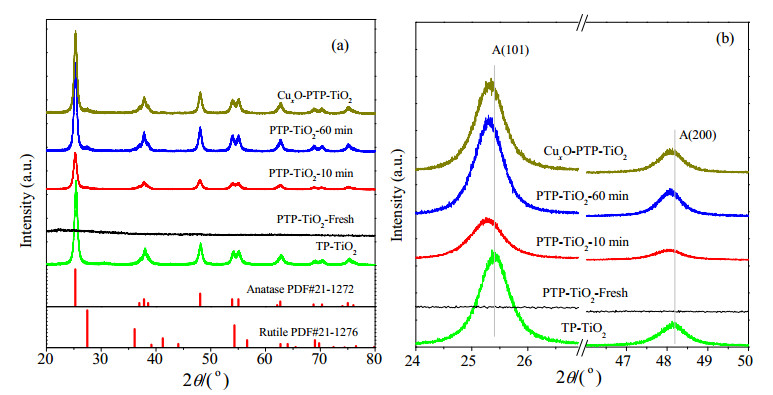

Fig. 4. (a) XRD patterns of the PTP-TiO2 (PTP-TiO2-Fresh, PTP-TiO2-10 min, and PTP-TiO2-60 min), TP-TiO2, and CuxO-PTP-TiO2 microspheres. (b) Magnified XRD patterns of the (101) and (200) planes of the anatase TiO2.
Table 1
Lattice parameters of the PTP-TiO2-10 min, PTP-TiO2-60 min, and TP-TiO2 samples.

Fig. 5 shows FTIR spectra of the samples. The obvious peak at 905 cm-1 in the PTP xerogel was assigned to the stretching vibration of Ti-O-O bonds (peroxo-species) [53, 54]. The FTIR spectra of the as-synthesized microspheres only exhibited vibrations of O–H (absorbed water) and O–Ti–O (TiO2 lattice) groups [55]. Because the PTP-TiO2 microspheres were prepared from pyrolysis of the PTP precursor, peroxo-species (oxygen excess defects) might remain in the PTP-TiO2 at concentrations below the detection limits of FTIR spectroscopy. The lattice expansion of PTP-TiO2 was induced by oxygen excess defects in agreement with the XRD analysis.

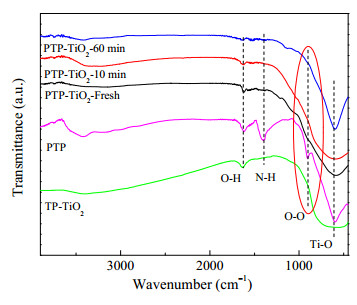

Fig. 5. FT-IR spectra of PTP, TP-TiO2, PTP-TiO2 (PTP-TiO2-Fresh, PTP-TiO2-10 min, and PTP-TiO2-60 min) samples. Peaks at 1627 and 574 cm-1 are attributed to vibrations of the O–H group (absorbed water) and O–Ti–O (TiO2 lattice), respectively. The peak at 1403 cm-1 of the peroxo titanate precursor is attributed to the absorbed NH3 from ammonium hydroxide in the preparation process.

XPS was used to investigate the surface chemical compositions and elemental binding states of the samples. Fig. 6(a) shows the O 1s spectra. For TP-TiO2, the O 1s signal could be fitted by two peaks at 529.35 and 531.45 eV, corresponding to lattice oxygen (O–Ti) and absorbed H2O (O–H), respectively [56, 57]. For PTP-TiO2-Fresh, PTP-TiO2-10 min, PTP-TiO2-60 min, and CuxO-PTP-TiO2, the O 1s peak could be fitted by three dominant peaks. The peak positions are listed in Table 2. In addition to the O–Ti and O–H absorption bands, another peak was located around 532.8 eV, which was defined as the O–O absorption band deriving from peroxo-species [58, 59]. The ratios of O(O-O)/total O (excepting absorbed O–H) were calculated to 34.1%, 20.2%, 11.6%, and 11.4% for the PTP-TiO2-Fresh, PTP-TiO2-10 min, PTP-TiO2-60 min, and CuxO-PTP-TiO2, respectively. These results indicate that the content of peroxo-species progressively decreased with prolonged annealing time.

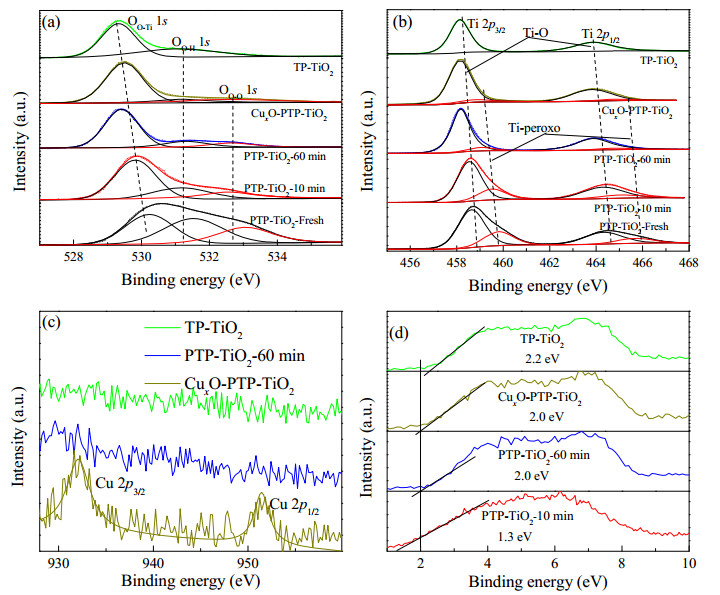

Fig. 6. O 1s (a), and Ti 2p (b) core level of the as prepared microspheres; (c) Cu 2p XPS spectra for the samples; (d) Valence band XPS spectra of the samples. (All peak maxima were calibrated to C 1s at 284.6 eV.).
Table 2
XPS results for the prepared microspheres.

Fig. 6(b) shows the high-resolution of Ti 2p spectra of the samples. For PT-TiO2, the binding energy peaks at 458.16 and 463.91 eV corresponded to the Ti 2p3/2 and Ti 2p1/2 for the Ti4+ in anatase [60]. For PTP-TiO2-Fresh, PTP-TiO2-10 min, PTP-TiO2-60 min, and CuxO-PTP-TiO2 microspheres, the Ti 2p3/2 and Ti 2p1/2 were fitted by two pairs of peaks. The two peaks located around 458.3 and 464.1 eV were assigned to Ti2p3/2 and Ti 2p1/2 of lattice Ti–O bonds. Another pair of peaks around 459.5 and 465.1 eV were assigned to Ti2p3/2 and Ti 2p1/2 of surface Ti–O–O (Ti-peroxo-species) bond [61]. The ratios of Ti–O–O/total Ti were estimated to be 34.6%, 20.1%, 10.6%, and 11.5% for PTP-TiO2-Fresh, PTP-TiO2-10 min, PTP-TiO2-60 min, and CuxO-PTP-TiO2 microspheres, respectively. These ratios were similar to those of O(O-O)/lattice O. Therefore, the content of the peroxo-species decreased as the annealing time of the PTP-TiO2 microspheres was prolonged. The Ti 2p and OO-Ti 1speaks of the PTP-TiO2 also shifted to lower binding energy after longer annealing times owing to the lower concentration of peroxo-species. The peroxo-species in PTP-TiO2 microspheres caused partial electron transfer from neighboring Ti to peroxo groups and a decrease of the electron density on Ti, resulting in an increase of the Ti–O binding energy [38]. In addition, the atomic ratios of O/Ti were determined to be 2.78, 2.38, 2.20, 2.20, and 1.77 for the PTP-TiO2-Fresh, PTP-TiO2-10 min, PTP-TiO2-60 min, and CuxO-PTP-TiO2 and TP-TiO2, respectively, which again illustrates the oxygen-rich nature of PTP-TiO2 and that the content of peroxo-species decreased with prolonged annealing time.

The CuxO-PTP-TiO2 and PTP-TiO2-60 min samples had similar O 1s and Ti 2p spectra. The proportion of the peroxo-species of CuxO-PTP-TiO2 was consistent with that of PTP-TiO2-60 min. After incorporating the CuxO co-catalyst, Cu 2p3/2 and Cu 2p1/2 peaks appeared in the XPS measurements located at 931.97 and 951.46 eV, as shown in Fig. 6(c), which could be assigned to the binding energies of Cu2+ [62, 63]. Together with the TEM results, we verified that CuxO was successfully grafted onto the surface of the TiO2 microspheres.

The VBM of the PTP-TiO2-10 min, PTP-TiO2-60 min, CuxO-PTP-TiO2 and TP-TiO2 samples respectively appeared at 1.3, 2.0, 2.0, and 2.2 eV, as shown in Fig. 6(d). The VBM of the PTP-TiO2-60 min exhibited a 0.2-eV upward shift compared with that of TP-TiO2, which corresponded to the presence of oxygen excess defects. The PTP-TiO2-10 min, with more oxygen excess defects than the PTP-TiO2-60 min, exhibited the greatest upward shift of the VBM. The CuxO-PTP-TiO2 had a similar VBM to that of PTP-TiO2-60 min, as the CuxO had no influence on the peroxo-species.

Fig. 7(a) displays the UV-vis diffuse reflectance spectra (DRS) of the microspheres. The Tauc plot constructed from the transformed Kubelka-Munk spectra of (αhv)1/2 versus energy of light (hν) gave indirect bandgaps at 3.20 eV for the TP-TiO2, 3.02 and 3.05 eV for the PTP-TiO2-10 min and PTP-TiO2-60 min, respectively. The PTP-TiO2-10 min and PTP-TiO2-60 min catalysts showed distinct visible-light absorption profiles. The PTP-TiO2-10 min possessed a larger shoulder and greater visible-light absorption, which could be attributed to more oxygen excess defects and a disordered structure, i.e., a large number of structural defects and non-crystalline regions. Incidentally, a mechanical mixture of TiO2 with the same rutile/anatase proportion to that of PTP-TiO2-60 min presented with the same optical absorption spectrum to that of pure anatase owing to the trace rutile content. Thus, we excluded the possibility of the bandgap narrowing of the PTP-TiO2-60 min microspheres deriving from the existence of a rutile phase. The visible-light response and lower bandgap energy of PTP-TiO2 compared with that of TP-TiO2 could be attributed to the presence of oxygen excess defects.

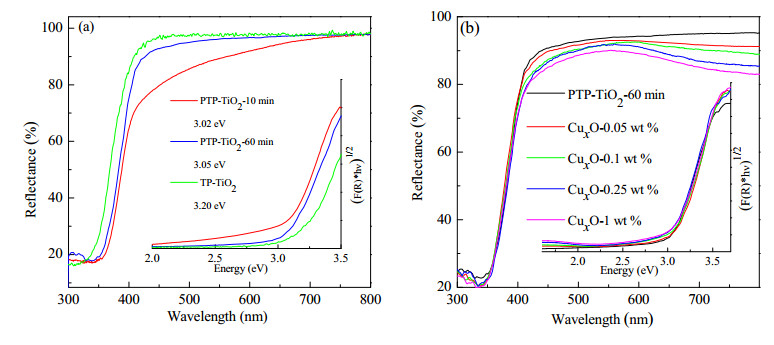

Fig. 7. (a) UV-vis DRS and Tauc plot (inset) of the PTP-TiO2-10 min, PTP-TiO2-60 min, and TP-TiO2; (b) UV-vis DRS and Tauc plot (inset) of the PTP-TiO2-60 min, and CuxO-PTP-TiO2.

Simultaneously, the CuxO co-catalysts (0.05 wt%, 0.1 wt%, 0.25 wt%, and 1 wt%) were also grafted onto the PTP-TiO2-60 min microspheres and the corresponding UV-vis DRS are shown in Fig. 7(b). All the CuxO-PTP-TiO2 samples had a similar bandgap to that of the PTP-TiO2-60 min. The visible-light absorption simultaneously increased as the amount of the CuxO co-catalysts was increased. The increase of the visible-light absorption band from 400 to 500 nm corresponded to direct interfacial charge transfer (IFCT) from the VB of TiO2 to the CuxO co-catalyst. This feature will likely be beneficial for photocatalytic performance. The absorption band from 600 nm to the near infrared region was attributed to the intrinsic excitation band of CuxO and d-d transitions of Cu(Ⅱ) species.

The photocatalytic activities of the prepared microspheres were monitored by measuring the decomposition of gaseous acetaldehyde under visible-light irradiation (λ > 400 nm, 100 mW/cm2). The gaseous acetaldehyde was a kind of indoor VOC pollutant which could be completely decomposed to CO2 and water by a photocatalyst. The degradation of acetaldehyde under visible-light irradiation could be fitted by a pseudo-first-order kinetic equation for all the microspheres and acetaldehyde was decomposed to the intermediate CH3COOH and finally to CO2, as shown by the photocatalytic acetaldehyde degradation curves in Fig. 8 and the photocatalytic mechanism in Fig. 9.

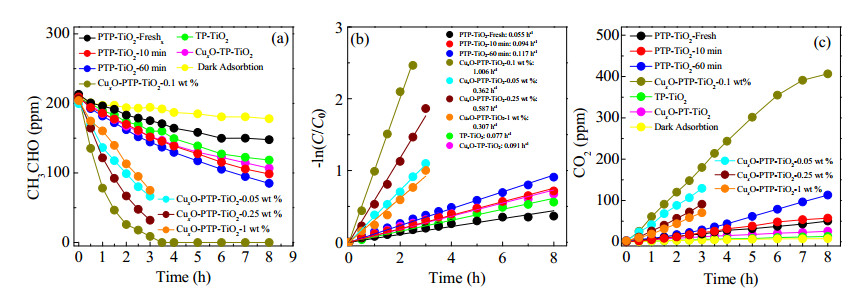

Fig. 8. Photocatalytic acetaldehyde degradation curves (a), degradation kinetic curves (b), and generation of CO2 curves (c) for the TP-TiO2, CuxO-TP-TiO2, PTP-TiO2, and CuxO-PTP-TiO2 microspheres under visible-light irradiation.

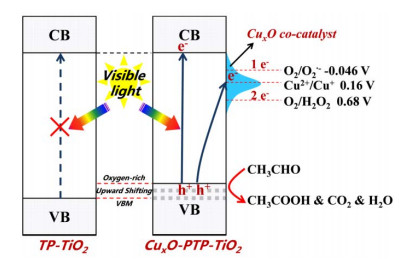

Fig. 9. Schematic diagram illustrating the energy-level structure and photocatalytic mechanism of the CuxO-PTP-TiO2 microspheres.

The TP-TiO2 presented weak visible-light photocatalytic activity for acetaldehyde degradation and negligible CO2 generation owing to its poor visible-light response (Fig. 8). The CuxO alone showed no obvious enhancement in terms of visible-light photocatalytic activity owing to its poor absorption of visible-light. The PTP-TiO2-10 min and PTP-TiO2-60 min microspheres both exhibit enhanced visible-light photocatalytic activity. The PTP-TiO2-10 min microspheres possessed incomplete anatase crystallinity, which is unfavorable for photocatalytic activity, despite the structure having more oxygen excess defects. The PTP-TiO2-60 min microspheres showed increased photocatalytic activity with a rate constant k= 0.117 h-1, which was 1.5 times as high as that of TP-TiO2. Herein, oxygen excess defects induced a slight improvement in the photocatalytic activity of the PTP-TiO2 microspheres owing to the extension of the visible-light absorption by shifting the VBM of TiO2 upward, as indicated by our UV-vis DRS and XPS results.

The grafting of CuxO onto the surface of PTP-TiO2-60 min markedly increased the photocatalytic activity of TiO2 under visible-light irradiation, as shown in Fig. 8. Among the CuxO-PTP-TiO2 microspheres, the CuxO-PTP-TiO2 with 0.1 wt% co-catalyst exhibited the fastest rates of photocatalytic degradation of acetaldehyde and CO2 evolution. The k value for acetaldehyde degradation of the CuxO-PTP-TiO2 microspheres was 1.006 h-1, which was respectively 8.6, 11.0, and 13.0 times as high as those of PTP-TiO2-60 min, CuxO-TP-TiO2, and TP-TiO2 microspheres according to Fig. 8(b).

Furthermore, the CuxO-TP-TiO2 microspheres exhibited an acetaldehyde degradation rate 4.6 and 2.7 times as high as that of the PTP-TiO2-60 min microspheres under irradiation by simulated solar light (λ ≈ 350–700 nm, 100 mW/cm2) and that under UV light (λ ≈ 350–380 nm, 3 mW/cm2), respectively (Fig. 10). However, the increased reaction rates of CuxO-PTP-TiO2 compared with those of PTP-TiO2-60 min followed the order: visible-light (8.6 times) > solar light (4.6 times) > UV light (2.7 times). The superior photo-activity of the CuxO-PTP-TiO2 microspheres under visible light irradiation was attributed to synergic effects of the oxygen excess defects and the CuxO co-catalyst. Under simulated solar light or UV light irradiation, the effects of the increased visible-light absorption induced by oxygen-excess defects was slight. Furthermore, the good stability of the CuxO-PTP-TiO2 was confirmed by the same rate of photocatalytic degradation of acetaldehyde and generation of CO2 over five cycles of the experiments in Fig. 11 under visible-light irradiation.

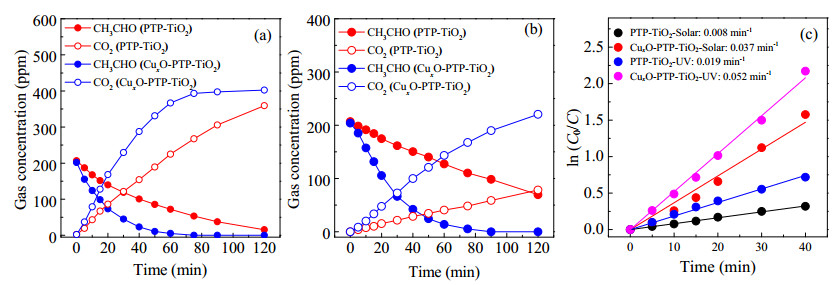

Fig. 10. Photocatalytic acetaldehyde degradation curves and generation of CO2 curves for the PTP-TiO2-60 min and CuxO-PTP-TiO2 microspheres under (a) simulated solar light irradiation and (b) UV light (350–400 nm) irradiation, and (c) kinetic degradation curves of acetaldehyde for the two samples under simulated solar light and UV light irradiation.

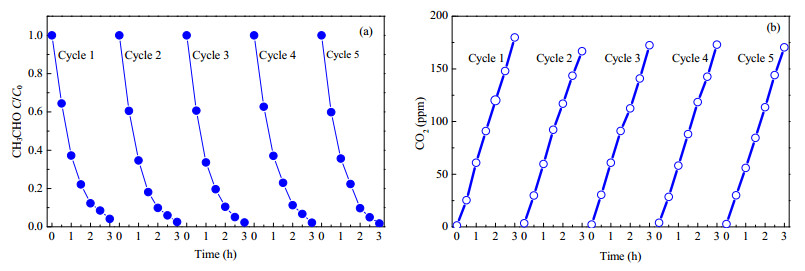

Fig. 11. Cycling tests of the CuxO-PTP-TiO2 microspheres for gaseous acetaldehyde degradation under visible-light irradiation (100 mW/cm2, λ > 400 nm). (a) Photocatalytic acetaldehyde degradation; (b) CO2 generation.

The luminol CL probe method was used to detect H2O2 and O2∙- and investigate the reaction mechanism of the samples during visible light irradiation. (Fig. 12) [64-67]. The TP-TiO2 and CuxO-TP-TiO2 produced negligible amounts of O2∙- or H2O2 owing to their inferior visible-light response. For the PTP-TiO2-60 min (PTP-TiO2 for convenience) and CuxO-PTP-TiO2 samples, the amounts of O2∙-and H2O2 detected increased as the irradiation period increased. After 8 h of irradiation, the concentrations of O2∙- were 0.72 and 1.27 mmol/L, and the concentrations of H2O2 were 0.63 and 1.13 mmol/L for PTP-TiO2and CuxO-PTP-TiO2, respectively. The O2∙- and H2O2 generation rate decreased as time progressed, owing to the spontaneously decay of O2∙- and photo-decomposition of the H2O2 [68]. Thus, the higher O2∙- and H2O2 generation rate during the photocatalytic reaction supports the finding of high photocatalytic activity for the CuxO-PTP-TiO2 microspheres.

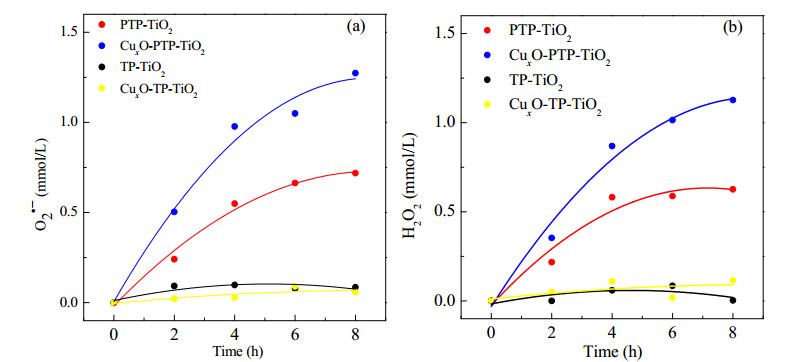

Fig. 12. Concentration of O2∙- (a) and H2O2 (b) as a function of the duration of the visible-light irradiation for PTP-TiO2-60 min, CuxO-PTP-TiO2, TP-TiO2, and CuxO-TP-TiO2 samples.

The CuxO-PTP-TiO2 microspheres exhibited optimal photocatalytic performance for acetaldehyde degradation under visible-light irradiation with rate constants respectively 8.6, 11.0, and 13.0 times as high as those of oxygen-rich TiO2, CuxO-TiO2, and normal TiO2. The oxygen excess defects shifted the VBM upward without decreasing the reducing ability of electrons and was beneficial for the visible-light photocatalytic activity. Upon visible-light excitation, electrons in the VBM transferred to the CuxO co-catalysts through two routes: inter-band transition (VBM→CBM→CuxO) and interfacial charge transfer (IFCT, VBM→CuxO), as shown in Fig. 8. The electrons transformed Cu2+ to Cu+, which efficiently reduced oxygen molecules via a multielectron reduction process which led to the reformation of Cu2+. Therefore, the CuxO promoted the separation of charge carriers and formed more of the photocatalytically active species, O2∙- and H2O2. The holes generated in the higher VBM maintained sufficient oxidation power to decompose acetaldehyde. Upon simulated solar and UV light excitation, the CuxO-PTP-TiO2 microspheres also exhibited higher photocatalytic activity than PTP-TiO2-60 min; however, the degree of activity improvement was lower than that under visible-light irradiation. This further demonstrates the important role of visible-light absorption induced by the oxygen-excess defects. Therefore, we conclude that synergic effects of oxygen excess defects and CuxO co-catalyst contributed to the high photocatalytic performance of CuxO-PTP-TiO2 microspheres under visible-light irradiation.

4 Conclusions

CuxO-grafted oxygen-rich TiO2 microspheres were synthesized by ultrasonic spray pyrolysis of a peroxo titanate precursor followed by wet chemical impregnation techniques. The CuxO grafted oxygen-rich TiO2 exhibited excellent photocatalytic performance and photo-stability for gaseous acetaldehyde degradation under visible-, solar-, and UV-light irradiation. The oxygen-rich defects shifted the VBM upward and extended the optical absorption edge of TiO2into the visible-light region. The CuxO co-catalyst served as electron-trapping centers and efficiently reduced adsorbed O2 to O2∙- and H2O2, therefore increasing the separation of charge carriers. Thus, oxygen excess defects and the CuxO co-catalyst increased the photocatalytic activity of TiO2. The present work represents a general strategy for developing other heterojunction photocatalysts for energy-and environmental-related applications.
