Nanotube array-like WO3/W photoanode fabricated by electrochemical anodization for photoelectrocatalytic overall water splitting
Lingfeng Li, Xiaolong Zhao, Donglai Pan, Guisheng Li
Key Laboratory of Resource Chemistry of Ministry of Education, Shanghai Key Laboratory of Rare Earth Functional Materials, College of Life and Environmental Science, Shanghai Normal University, Shanghai 200234, China
* Corresponding author. Guisheng Li,Tel:+86-21-64321673;Fax:+86-21-64322272;E-mail:liguisheng@shnu.edu.cn
Foundation item: This work was supported by the National Natural Science Foundation of China (21207090, 21477079, 21261140333), PCSIRT (IRT1269), and a scheme administrated by Shanghai Normal University (DXL122, and S30406)
Abstract: Photoactive WO3 is attractive as a photocatalyst for green energy evolution through water splitting. In the present work, an electrochemical anodic oxidation method was used to fabricate a photo-responsive nanotube array-like WO3/W (NA-WO3/W) photoanode from W foil as a precursor. Compared with a reference commercial WO3/W electrode, the NA-WO3/W photoanode exhibited enhanced and stable photoelectrocatalytic (PEC) activity for visible-light-driven water splitting with a typical H2/O2 stoichiometric ratio of 2:1 and quantum efficiency of approximately 5.23% under visible-light irradiation from a light-emitting diode (λ=420 nm, 15 mW/cm2). The greatly enhanced PEC performance of the NA-WO3/Wphotoanode was attributed to its fast electron-hole separation rate, which resulted from the one-dimensional nanotube array-like structure, high crystallinity of monoclinic WO3, and strong interaction between WO3 and W foil. This work paves the way to a facile route to prepare highly active photoelectrodes for solar light transfer to chemical energy.
© 2017, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: WO3     W foil     Electrochemical anodization     Nanotube arrays     Photoelectrocatalysis     Water splitting
电化学阳极氧化法制备类纳米管结构WO3光阳极用于光电催化全分解水
李凌凤, 赵小龙, 潘东来, 李贵生
上海师范大学, 生命与环境科学学院, 资源化学教育部重点实验室, 上海市稀土功能材料重点实验室, 上海 200234
摘要:近年来,随着能源和环境问题日益凸显,新型可再生能源的开发利用意义重大.其中开发高效的光阳极材料用于光电催化全分解水引起了广泛的研究兴趣.纳米WO3由于其禁带宽度适中,被证明是一种效果良好的光催化分解水产氧的催化剂,但无法直接用于催化析氢.若将其作为光阳极材料,在施加较低偏压下可用于高效光电催化全分解水.纳米WO3电极的众多制备方法中,电化学氧化法因其方法简单,高效,制备成本低而具有重要的应用价值.然而,通常情况下电化学氧化法得到的纳米WO3薄膜多为无规则形貌或多孔膜.本文发展了一种简单的阳极氧化法,通过优化调变其制备过程中的氧化时间,氧化电压,电解质离子浓度以及焙烧温度,确定了最佳制备条件(1 h,40 V,0.15 mol/L NH4F,400 ℃)时样品的光电催化全分解水活性最高,其光电催化析氢和析氧的速率分别达到了3.93和1.96 μmol/cm2/h,且量子效率达5.23%的,此NAs-WO3/W薄膜的光电催化活性和稳定性远超商业WO3/W薄膜. 场发射扫描电镜结果显示,所制样品是一种新型的形貌规整的类纳米管阵列状WO3薄膜.并进一步通过X射线衍射(XRD)、高分辨透射电子显微镜(HRTEM)、X射线光电子能谱(XPS)、紫外可见光谱、光电转换效率、光电流测试、和交流阻抗等手段研究了其晶体结构、表面化学组成、光学及光电化学性质.同时通过实验与计算获得了NAs-WO3/W薄膜在420 nm单色光照下的表面空穴分离率,并与商业WO3制备得到的WO3/W薄膜进行了相关对比.XRD,HRTEM和XPS结果表明,所制NAs-WO3/W薄膜是由暴露(020)和(202)晶面的单斜晶相WO3构成.交流阻抗测试表明,NAs-WO3/W的交流阻抗值要远小于商业WO3/W,说明其光生载流子分离效果要比商业化的WO3/W高;且NAs-WO3/W薄膜的表面空穴分离率是商业WO3/W薄膜的三倍.由此可见NAs-WO3/W具有优异的光电催化性能(高光电转换效率和空穴分离效率),能有效应用于可见光全分解水反应,这主要归因于其类纳米管阵列的特殊一维结构、高结晶度的单斜态WO3及WO3与金属W片之间的强相互作用.本文为高效光电转换材料的制备提供了新的技术与途径.
关键词WO3    钨片    电化学氧化    纳米管阵列    光电催化    分解水

1 Introduction

In recent years, the depletion of fossil fuels has led to the impetus to develop new energy sources [1, 2]. Solar water splitting represents a sustainable and environmentally friendly method to produce H2, which is considered an alternative, clean, and sustainable energy source to fossil fuels [3, 4]. Photocatalytic water splitting has attracted considerable attention as a potential route to produce renewable energy with no reliance on fossil fuels and no carbon dioxide emission [5-7]. In 1972, Fujishima etal. [8] first reported TiO2 as a photocatalyst for solar water splitting. Since then, TiO2 has been extensively studied as a promising photocatalyst. Although TiO2 possesses remarkable advantages, it suffers from low solar light utilization efficiency because of its wide band gap [9]. Some non-TiO2 photocatalysts, including ferric oxide [10-12], cuprous oxide [13, 14], cadmium sulfide [15, 16], and composite materials, have been used as visible-light photocatalysts to drive water splitting under visible-light irradiation [17-26]. However, these photocatalysts are susceptible to photocorrosion [21, 22]. Thus, a stable visible-light-driven photocatalyst for use in water splitting is still urgently required.

Recently, WO3 has been proved an attractive candidate for photocatalytic applications in environmental remediation [23-31] and O2 evolution [32-34] because of its suitable band gap to absorb visible light and excellent stability [35-39]. Although WO3 possesses an indirect band gap energy of 2.7–2.8 eV, it still cannot directly reduce water to H2 because of its high conduction band position (0.3 V vs. RHE) [40]. As a result, the photogenerated electrons do not reach the potential of water reduction (0 V vs. RHE) [41]. In addition, WO3 still suffered from the rapid recombination of photogenerated electron–hole pairs in the photocatalytic process, like other powder photocatalysts [32, 42, 43].

Photoelectrocatalytic (PEC) water splitting has been proved an effective method to solve the problem of the rapid recombination of photogenerated electron–hole pairs [44-46]. In a typical PEC water splitting system, photogenerated holes (or electrons) migrate to the anode (or cathode) surface to participate in water oxidation (or reduction) reactions [47]. The external field induces the photogenerated electron–hole pairs to separate rapidly, thus slowing the recombination rate of charge carriers [48]. Meanwhile, the applied bias voltage allows the photogenerated electrons to reduce water to H2 [41]. Recently, photoanode-driven PEC systems have been widely used in water splitting [47, 45-51]. Considerable effort has been focused on the development of n-type semiconductor-based photoanodes for solar-light-driven water oxidation in PEC systems[41, 52]. For example, highly crystalline WO3 with small mesopores produced via a one-step procedure demonstrated high visible-light-driven PEC performance in water oxidation [53]. Pore-rich WO3 ultrathin nanosheets were fabricated as an effective photoanode for PEC water oxidation, displaying more photogenerated holes, higher carrier migration rate, shorter migration path, and stronger oxidizing capability than normal nanostructured WO3. More recently, a porous WO3 photoanode was used for the photoelectrochemical mineralization of emerging contaminants [54].

Regarding overall water splitting, few reports on WO3-based photoanodes have appeared to date. In the present work, a nanotube array-like monoclinic WO3/W(NA-WO3/W) electrode fabricated by an electrochemical anodization method is used as an effective photoanode to realize overall water splitting (stoichiometric H2/O2 ratio of 2:1) under visible-light irradiation (λ = 420 nm). We fabricated the first WO3 nanotube-based electrodes by an anodization route [55, 56]. Various morphologies, including nanopores, grains, and even formless WO3 thin films and crystals can be produced by adjusting the anodization voltage, time, and electrolyte composition of the anodization process and the annealing temperature. Both the photoelectrochemical properties and PEC activity of the NA-WO3/W photoanode are investigated using a commercial WO3/W film as a standard photoanode. The NA-WO3/W photoanode exhibits stronger visible-light absorption, lower charge recombination rate, and higher stability than the reference photoanode, leading to higher PEC activity in visible-light-driven overall water splitting; the quantum efficiency (QE) of the NA-WO3/W photoanode in water splitting is approximately 5.23%. Such greatly enhanced PEC water-splitting performance is attributed to the highly crystalline WO3 nanotube arrays, fast carrier separation and migration rates, and high visible-light absorption capability of the NA-WO3/W photoanode.

2 Experimental
2.1 Preparation of NA-WO3/W and commercial WO3/W electrodes

W foil (20.0 × 30.0 × 0.1 mm, 99.95% purity, Chuang Qi, Baoji, China) was degreased by ultrasonication in acetone, deionized water, and ethanol in sequence for 15 min each and then dried in a nitrogen (N2) stream. The WO3/W nanostructures were fabricated through constant-voltage anodization in a two-electrode electrochemical cell at room temperature using the cleaned W foil as the anode and Pt foil (20.0 × 20.0 × 0.1 mm) as the cathode. The W foil was anodized in ammonium fluoride (NH4F; 0.15 mol/L) aqueous electrolyte solution containing glycerol (glycerol/water = 50:50 vol %) under a DC oxidation voltage of 40 V for 1 h. The as-obtained WO3/W film was annealed at 400 ℃ for 3 h in an air atmosphere after heating at a rate of 2 ℃/min to form NA-WO3/W. The effect of the electrochemical parameters, including the concentration of NH4F (0.10–0.20 mol/L), oxidation voltage (30–70 V), and oxidation time (0.5–2.0 h), and the annealing temperature (300–500 ℃) on the PEC activities of NA-WO3/W photoanodes during visible-light-driven water splitting were investigated.

To aid comparison, a reference WO3/W photoanode was also prepared by coating commercial WO3 powder on W foil. In a typical process, polyethylene glycol (PEG; average MW 20000, 20 mg) was dissolved in ethanol (100 µL). Commercial WO3nanoparticles (< 200 nm, 99.9% metals basis, Aladdin, 100 mg) were dispersed in the PEG solution by grinding for 15 min. The as-obtained mixture was coated on W foil (20.0×30.0×0.1 mm, 99.95% purity, Chuang Qi) by the doctor-blade method to give an active area of 15.0×25.0 mm. Film thickness was controlled using plastic tape with a thickness of 20 µm. The WO3 electrode was annealed at 400 ℃ for 3.0 h in an air atmosphere following heating at a rate of 5 ℃/min [57]. The as-prepared reference WO3 electrode is called standard WO3.

2.2 Characterization

Wide-angle X-ray diffraction (XRD) measurements were carried out in a parallel mode (ω = 0.5°, 2θ from 10° to 80°) using a Rigaku D/max-3C Advance X-ray diffractometer with Cu Kα radiation (λ = 1.5406 Å ). The morphologies of the products were observed by field-emission scanning electron microscopy (FESEM; S-4800, Hitachi, Japan). Surface electronic states were analyzed by X-ray photoelectron spectroscopy (XPS; PHI 5000, Perkin-Elmer, USA). All binding energy values were calibrated using the C 1s peak at 284.6 eV as a reference. Ultraviolet-visible diffuse reflectance spectra (UV-vis DRS) of the samples over a range of 200–800 nm were collected on Dilor Super Lab Ram II and MC-2530 spectrometers using barium sulfate as a reference. Transmission electron microscopy (TEM; JEM-2010, JEOL, Japan, 200 kV) and high-resolution transmission electron microscopy (HRTEM; JEOL-2010F, JEOL, 200 kV) were used to analyze the structure of the photoelectrodes.

2.3 Photoelectrochemical and PEC measurements

Photoelectrochemical measurements were carried out in a standard three-electrode system with a custom-made single-compartment quartz cell on an electrochemical work station (CHI 660D, Shanghai Chenhua Instrument Inc., China). A WO3/W electrode with an active area of 5 cm2 served as the photoanode and a Pt sheet (4 cm2) served as the cathode. A saturated calomel electrode (SCE) was used as the reference electrode. An aqueous solution of sodium sulfate (Na2SO4; 0.5 mol/L, 60 mL) was used as the supporting electrolyte. A light-emitting diode (LED; λ = 420 nm, 15 mW/cm2) was used as the visible-light source. The NA-WO3/W photoanode was positioned 5.0 cm away from the light source. Impedance measurements were collected under simulated solar illumination in 0.5 mol/L Na2SO4 solution at open-circuit potential over a frequency range from 106 to 10−2 Hz with an AC voltage of 5 mV. Mott-Schottky plots were obtained at a fixed frequency of 1 kHz to determine flat-band potentials (EFB). Transient photocurrents were measured using a 20 s on/off cycle at a bias voltage of 0.6 V vs. SCE. Incident photon-to-current efficiency (IPCE) measurements were conducted in a standard three-electrode system using an electrochemical workstation (Zahner-Elektrik) with an applied potential of 0.6 V vs. SCE. The light wavelength range was from 367 to 720 nm. The absorbed photon-to-current efficiency (APCE) was obtained by dividing the IPCE by the light harvesting efficiency at each wavelength using a reported calculation method [58].

A custom-made quartz reactor with two chambers each with a volume of 120 mL (Fig. 1) was used to evaluate the photoelectrochemical water-splitting activity of the photoanodes. Each chamber of the reactor was filled with 0.5 mol/L Na2SO4 solution (75 mL). A WO3/W electrode was used as the photoanode, Pt foil as the counter electrode, and SCE as the reference electrode. An external bias voltage (0.5 V vs. SCE) was applied to the three-electrode system. An LED (λ = 420 nm, 15 mW/cm2) was used as the visible-light source. The system was purged with a high-purity N2 gas to remove dissolved O2 before reaction. To quantify the amounts of evolved H2 and O2, 0.5 mL of the gas in the reactor was sampled through the septum after 1 h of reaction. Both O2 and H2 were analyzed by gas chromatography (GC9800, Shanghai Kechuang Chromatograph Instruments Co. Ltd, China) using N2 (99.999%) as the carrier gas. O2 was detected using a 5 A molecular sieve column and H2 using a TDX-1 column. The reproducibility was checked by repeating the measurements ten times. QE was calculated using Eq. (1),

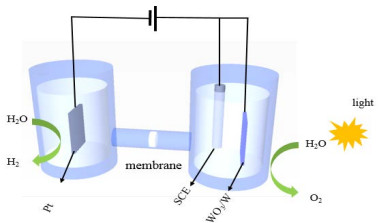

Fig. 1. Schematic of the PEC system for H2 and O2 evolution.

where n is the number of electrons transferred; R is the yield of production; NA is the Avogadro constant; t1 is the time (h); E is the monochromatic light intensity; t2 is the time (s); A is the irradiation area; λ is the wavelength; h was the Planck constant; and c is the speed of light.

3 Results and discussion

The NA-WO3/W thin film electrode was fabricated via an anodic oxidation route. During electrode fabrication, anodization was carried out by a DC-regulated power supply with a two-electrode setup [59] using W foil as the anode and Pt foil as the cathode. To investigate the effect of different oxidation conditions on the nanostructure of the WO3/W film, parameters including the oxidation voltage, time, and concentration of fluoride ions were adjusted. The morphology of the WO3/W electrode was characterized by FESEM. Fig. 2(a) and (b) show FESEM images of the NA-WO3/W thin film. The average diameter of the nanotubes was about 120 nm and their wall thickness was about 10 nm. The HRTEM image in Fig. 2(c) of broken grains obtained from WO3 nanotubes reveals clear lattice fringes of 0.375 and 0.380 nm derived from the (020) and (202) planes of monoclinic WO3 crystals, respectively [60].

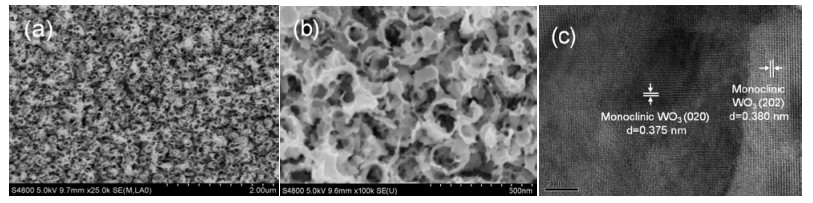

Fig. 2. FESEM (a, b) and HRTEM (c) images of the NA-WO3/W film.

To further confirm the crystal structure of the NA-WO3/W thin film, it was investigated by XRD. As shown in Fig. 3(a), the characteristic diffraction peaks of the WO3/W sample suggested the formation of pure monoclinic WO3 (PDF#43-1035) on the W foil, consistent with the HRTEM results. XPS data were recorded to determine the chemical composition and electronic binding energies of W and O of the sample. The survey spectrum of the WO3/W sample over a large energy range at low resolution is presented in Fig. 3(b). Two peaks were observed at 35.7 and 37.9 eV, which are assigned to W 4f 7/2 and W 4f 5/2, respectively [61]. These results indicate that monoclinic WO3 crystals were present on the surface of the NA-WO3/W photoelectrode, which was supported by the XRD analysis.

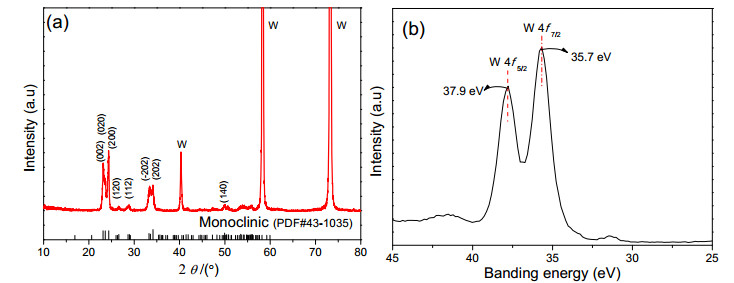

Fig. 3. XRD pattern (a) and XPS analysis (b) of the NA-WO3/W film.

For further investigate the surface electronic state of the samples, UV-vis spectra were recorded, as shown in Fig. 4(a). The band gap of the NA-WO3/W electrode estimated from a Tauc plot was about 2.35 eV, which was slightly smaller than the band gap of standard WO3/W of about 2.45 eV (Fig. 4(a)) [62, 63]. The NA-WO3/W photoanode exhibited broad visible-light absorption. The weak absorption of NA-WO3/W at longer wavelength (λ > 520 nm) was ascribed to the light scattering by pores or cracks in the nanotube arrays [64]. IPCE was measured at 0.6 V vs. SCE. The NA-WO3/W and standard WO3/W electrodes exhibited IPCE values of 0.5% and 0.36% at 420 nm, respectively (Fig. 4(b)).

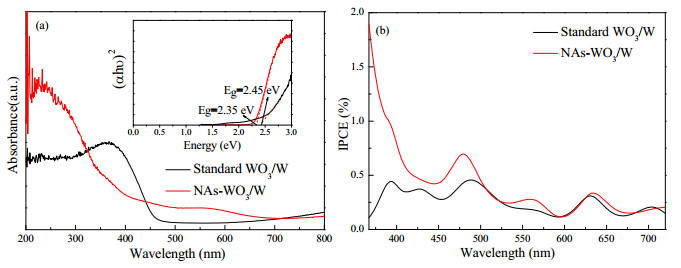

Fig. 4. UV-vis absorption spectrum (a) and IPCE (b) measured in 0.5 mol/L phosphate buffer (pH = 7.0) containing 25 vol% methanol as a hole scavenger at 0.6 V vs. SCE of the NA-WO3/W film and standard WO3/W film. The inset in (a) shows the corresponding Tauc plot.

The photoelectrochemical properties of the electrodes were then examined in 0.5 mol/L Na2SO4 solution containing 25 vol % methanol as a hole scavenger [65, 66]. The oxidation of methanol is faster than that of water both thermodynamically and kinetically. Therefore, the photocurrent measured for methanol oxidation enabled investigation of the photoelectrochemical properties of the NA-WO3/W electrode independent of its poor water oxidation kinetics [65]. To evaluate the photoelectrochemical response of the electrodes under visible-light irradiation, their photocurrent density was also measured under light pulses with a duration of 20 s. At an applied potential of 0.6 V vs. SCE, the NA-WO3/W electrode exhibited a high and stable photocurrent, while that of the standard WO3/W sample was much smaller and unstable, indicating that the photogenerated carriers in the standard WO3/W sample recombined easily (Fig. 5(a)). The photocurrent response of the NA-WO3/W electrode presented good reproducibility for numerous on/off cycles. The enhanced photocurrent density of the NA-WO3/W electrode indicated that the photogenerated electrons could be transferred to the cathode and the holes could be injected into the 0.5 mol/L Na2SO4 solution much more readily by the NA-WO3/W electrode than by the standard WO3/W one. This is because the tubular structure of the NA-WO3/W electrode allowed multiple reflections and offered better proton channels and lower electron transfer resistance than the standard WO3/W sample. In terms of the photocurrent of standard WO3/W, it decreased for a time before becoming steady, which was attributed to the backflow of photogenerated electrons from the conduction band of WO3 to its valence band. Thus, a small voltage was used to inhibit this phenomenon in the PEC process.

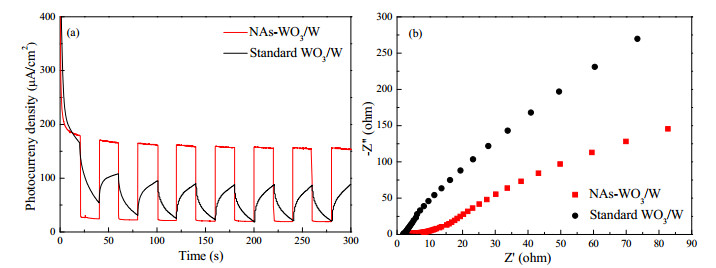

Fig. 5. Photocurrent responses under visible-light irradiation (an LED, λ = 420 nm, 15 mW/cm2). (a) and Nyquist plots of EIS data (b) for the NA-WO3/W film and standard WO3/W film.

The interfacial properties between the electrode and electrolyte were also investigated by electrochemical impedance spectroscopy (EIS), as shown in Fig. 5(b). The semicircle at high frequency in a Nyquist plot may illustrate the charge-transfer process; the charge-transfer resistance depends on the diameter of the semicircle. The capacitance arc for the NA-WO3/W electrode under simulated sunlight irradiation was considerably smaller than that of the standard WO3/W electrode. This implies that the conductivity of the NA-WO3/W electrode was enhanced because the recombination of photogenerated electron–hole pairs was lowered, which in turn enhanced the photocurrent density [67].

Typical photocurrent-potential (J-V) curves for methanol oxidation with the NA-WO3/W and standard WO3/W electrode are shown in Fig. 6(a). The NA-WO3/W electrode exhibited a higher photocurrent and faster increase in photocurrent than standard WO3/W in the range of 0.13 to 0.6 V vs. SCE, representing a much higher fill factor. The photocurrent density of the NA-WO3/W electrode was 0.38 mA/cm2 (0.6 V vs. SCE) [58]. The photocurrent density obtained for methanol oxidation was used to calculate the electron–hole separation yield (ϕsep) using Eq. 2,

(2)

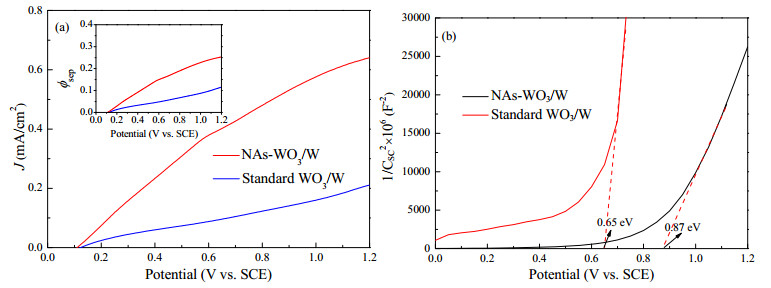

Fig. 6. (a) J-V curves of NA-WO3/W and standard WO3/W electrodes measured in 0.5 mol/L phosphate buffer (pH = 7.0) containing 25 vol% methanol as a hole scavenger under LED irradiation (λ = 420 nm, 15 mW/cm2) measured at a scan rate of 10 mV/s. Inset are ϕsep plots calculated from the J-V curves from which the dark current was subtracted. (b) Mott-Schottky plots of the NA-WO3/W and standard WO3/W electrodes.

where JPEC is the photocurrent density and Jabs is the photon absorption rate expressed as current density, which was calculated assuming 100% APCE (refer to the literature for calculation details, materials, and methods [62, 53-71]). Jabs of the NA-WO3/W and standard WO3/W electrodes under LED irradiation (λ = 420 nm, 15 mW/cm2) were calculated to be 2.53 and 1.83 mA/cm2, respectively [72]. ϕsep was also the yield of photogenerated holes that reached the surface and ϕox was the yield of holes that reached the surface and were injected into the solution species [73].

For methanol oxidation, which has extremely fast kinetics, surface recombination was negligible and ϕox was about 1. Therefore, ϕsep was obtained by dividing JPEC by Jabs (Fig. 6(a), inset). The results showed that the NA-WO3/W electrode achieved ϕsep = 0.15 at 0.6 V, and 0.25 at 1.2 V vs. SCE, which were about three times those of the standard WO3 electrode. Such enhancement of ϕsep for the NA-WO3/W photoanode could be attributed to its special nanotube array-like morphology, which may be favorable for carrier separation and migration to the electrode surface. Fig. 6(b) displays the Mott-Schottky plots of 1/C2 as a function of the applied potential. A positive slope was observed for the sample, suggesting that NA-WO3 is an n-type semiconductor. Furthermore, the plots were extrapolated to 1/C2 = 0 to estimate EFB, which were 0.87 and 0.65 V vs. SCE for the NA-WO3/W and standard WO3/W electrodes, respectively.

To evaluate the PEC water-splitting performance of the photoanode, the amounts of both H2 and O2 evolved under visible-light irradiation were detected. The influence of the NA-WO3/W electrode synthesis parameters on water-splitting performance was investigated. Fig. 7(a) presents the results for a series of electrodes produced with different anodization times at the same anodization voltage and fluoride ion concentration (DC 40 V, 0.15 mol/L NH4F). The sample produced after 1.0 h of anode oxidization exhibited the highest PEC water-splitting performance under visible-light irradiation of the electrodes. Fig. 7(b) shows the PEC performance of samples fabricated with various anodization voltages (30–70 V) and the same anodization time and fluoride ion concentration (1.0 h, 0.15 mol/L NH4F). The results indicate that the sample oxidized at a DC voltage of 40 V gave the highest H2 and O2 evolution rates under visible-light irradiation of the electrodes. The effect of fluoride ion concentration in the electrolyte solution during anode oxidation was also investigated with the same anodization voltage and anodization time (40 V, 1.0 h) (Fig. 7(c)). The results showed that the sample prepared in the electrolyte with 0.15 mol/L of fluoride ions exhibited the highest PEC performance of the electrodes. Meanwhile, Fig. 7(d) revealed that the sample calcined at 400 ℃ exhibited the highest PEC performance for water-splitting of the electrodes. The NA-WO3/W photoanode fabricated under the optimal conditions (DC 40 V, 1.0 h, 0.15 mol/L of fluoride ions, and 400 ℃) exhibited the highest PEC water-splitting performance under visible-light irradiation of the samples, with evolution rates of H2 and O2 of 3.93 and 1.96 µmol/cm2/h, respectively. This may be caused by the high electron–hole separation rate resulting from both the one-dimensional nanotube array-like structure of WO3 and the high crystallinity of monoclinic WO3. The QE of the optimal NA-WO3/W photoanode under LED irradiation (λ = 420 nm, 15 mW/cm2) reached 5.23%.

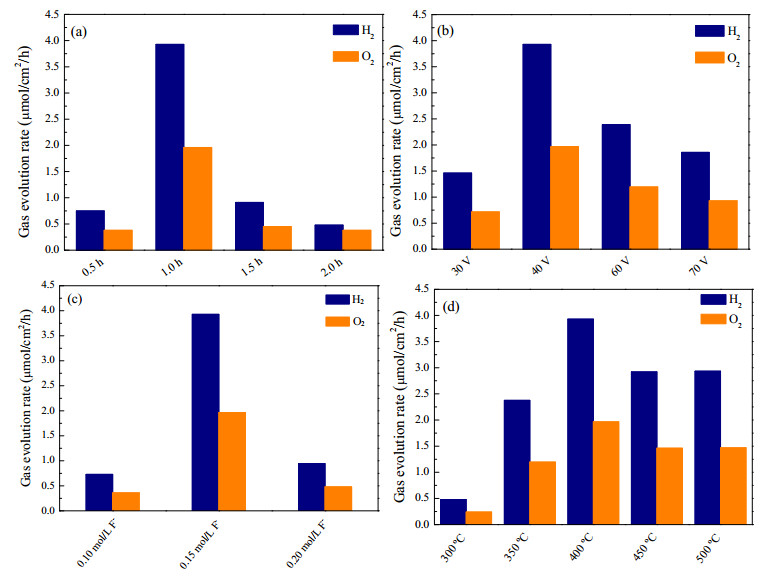

Fig. 7. PEC activity of NA-WO3/W photoanodes prepared with different anode oxidization time (a), voltage for anode oxidization (b), fluoride ion concentration (c) in the electrolyte solution during anode oxidation, and annealing temperature (d). All these PEC tests were performed under the same conditions using an LED as the light source (λ = 420 nm, 15 mW/cm2) and applied potential of 0.5 V vs. SCE in 0.5 mol/L Na2SO4 solution.

To aid comparison, standard WO3/W was used as a reference. Fig. 8(a) shows the H2 and the O2 evolution performance of both NA-WO3/W and standard WO3/W photoanodes in the PEC process for overall water splitting. The results indicated that the NA-WO3/W photoanode exhibited an activity of about 3.0 µmol/cm2/h, which was much higher and more stable PEC activity for water splitting than that of the standard WO3/W photoanode. No obvious decrease of activity was observed in the water-splitting process over 10 h. The XRD pattern of the NA-WO3/W photoanode used for 10 h in Fig. 8(b) was similar to that of the unused photoanode, confirming the phase stability of the NA-WO3/W film during PEC water splitting. An FESEM image further confirmed the nanotube structure was maintained after 10 h of PEC reaction (Fig. 8(c)). The high activity and stability of the NA-WO3/W photoanode might be attributed to the formation of tubular structures of WO3 directly on the W sheet. This tubular structure consisting of highly crystalline monoclinic WO3 could allow preferable light absorption through multiple reflections in the WO3 nanotubes, as well as rapid hole transport in the highly crystalline pore walls of WO3.

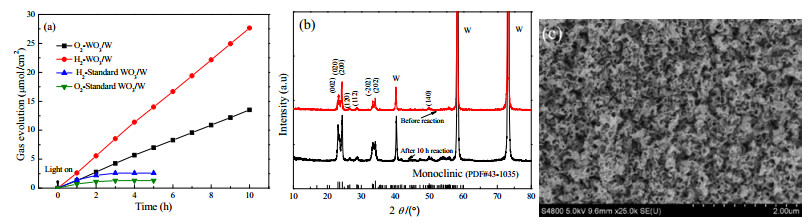

Fig. 8. (a) PEC overall water splitting by the NA-WO3/W and standard WO3/W photoanodes. (b) XRD patterns of the NA-WO3/W photoanode before and after PEC reaction. (c) FESEM image of the NA-WO3/W film after PEC reaction for 10 h.

A proposed mechanism for the PEC process for water splitting using NA-WO3/W as the photoanode is illustrated in Fig. 9. Electrons and holes were generated upon irradiating the NA-WO3/W photoanode with visible light. The photogenerated electrons were transferred to the cathode to evolve H2 through the external circuit with the aid of the bias voltage. Meanwhile, the photogenerated holes in the valence band of the NA-WO3/W photoanode could oxidize water to evolve O2 because the valence band position of WO3 was sufficiently positive [74].

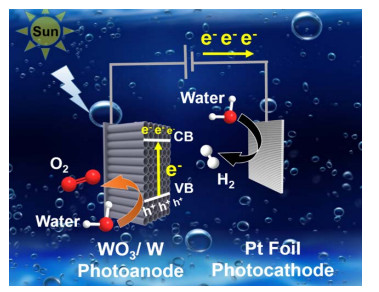

Fig. 9. Schematic of overall water splitting by photoelectrocatalysis using the NA-WO3/W photoanode.
4 Conclusions

In summary, a NA-WO3/W photoanode was obtained via an electrochemical anodization method. The NA-WO3/W photoanode exhibited excellent PEC activity for overall water splitting with a QE of approximately 5.23% under LED irradiation (λ = 420 nm, 15 mW/cm2). The high PEC performance of the NA-WO3/W electrode was attributed to the one-dimensional nanotube-like structure of WO3, highly crystalline monoclinic WO3, and strong interaction between WO3 and W foil. These features allowed both high visible-light absorption capability and fast electron–hole separation, thus leading to the high photocurrent density under visible-light irradiation. Our photoanode design could be extended to other semiconductorelectrodes based on intrinsic metal substrates for photoelectrochemical applications.
