Volatile organic compounds (VOCs) are recognized as major contributors to air pollution. These compounds are toxic and can also act as precursors to the formation of ground level ozone and photochemical smog. Because of concerns regarding the continual increases in VOC emissions, their release into the environment is controlled by stringent regulations. In this context, catalytic oxidation is considered a promising technology for the control of VOC emissions [1, 2]. The efficiency of catalytic oxidation depends greatly on the type of catalyst employed, and the most effective catalysts will be determined by the properties of the effluent to be treated, including chemical composition, flow rate, presence of poisons or/and inhibitors, and by inlet temperature constraints.

The most commonly used catalysts for the catalytic oxidation of VOCs are supported noble metals (Pt or Pd) [3, 4], which are generally considered to be more active than metal oxides [5-8]. However, Co, Cu, Ni and especially Mn oxides have also demonstrated high catalytic activities [9-11]. These oxides have the additional advantages of lower cost and higher resistance to deactivation by poisoning in comparison to supported noble metals. Manganese oxides (α-MnO₂, β-MnO₂, γ-MnO₂, Mn₃O₄, Mn₂O₃) have been extensively studied as catalysts for the oxidation of many pollutants. The catalytic performance of MnO_x compounds is attributed to the ability of manganese to form oxides with different oxidation states having high oxygen storage capacities [2, 12]. Although the nature of the active sites associated with catalytic oxidation is not well understood, several authors attribute the high activity of these oxides to the mixed valence state of the manganese framework and to the higher mobility of lattice oxygen in these compounds, suggesting that lattice oxygen participates in the oxidation process [13, 14]. Moreover, the presence of structural defects such as cationic vacancies and chemical defects have also been found to improve catalyst performance [15, 16].

Among the manganese oxides, cryptomelane (K-OMS-2) is of particular interest due to its open tunnel structure, mixed manganese valence states and highly mobile lattice oxygen. Cryptomelane-type manganese oxide (KMn₈O₁₆) was found to be very active during the oxidation of several types of VOCs, and its performance is evidently significantly affected by the presence of other phases, namely Mn₂O₃ and Mn₃O₄ [17]. The latter improves catalytic performance by increasing the reactivity and mobility of lattice oxygen, while the former has the opposite effect.

The development of fast, simple and low cost methods to produce highly active catalysts for VOC oxidation is still a challenge, considering that this would require the scaled-up production of various materials. The aim of the present work was to prepare stable, efficient manganese oxides for use as catalysts for VOC oxidation. These materials were synthesized using new techniques involving a novel solvent-free reaction or a reflux method to synthesize cryptomelane-type manganese oxides, but also by conventional methods. The goal of this study was to assess the effects of the oxide surface area, morphology, surface reducibility and redox properties on the catalytic performance. These catalysts were tested based on the oxidation of two esters representative of those found in industrial emissions: ethyl and butyl acetate. These esters were selected because the former is among the most studied catalytic oxidation model compounds while there have been few reports of the catalytic oxidation of the latter [18, 19]. In addition, esters are generally reported to be the most difficult organic solvents to oxidize completely [20].

Manganese oxide catalysts were synthesized by different routes. A cryptomelane type (sample Mn1) was prepared using a reflux method [21, 22]. Briefly, 11 g of Mn(CH₃COOH) was dissolved in 40 mL of water and the pH of this solution was adjusted with concentrated nitric acid to a value of 3.5. Next, 6.5 g of KMnO₄ was dissolved in 150 mL of water and this solution was slowly added to the previous mixture. A black precipitate formed upon stirring and the mixture was refluxed at 100 ℃ for 24 h. The solid was filtered, washed with distilled water, dried in an oven and calcined at 450 ℃ in air for 4.5 h. Other samples were prepared by a novel solvent-free solid-state reaction adapted from the procedure described by Ding et al. [23]. The KMnO₄ and Mn(CH₃COOH)₂ were combined at a stoichiometric molar ratio of 2:3 and ball-milled (Mixer Mill MM 200, Retsch, Haan, Germany) for 1 h at either 5 vibration/s (sample Mn2) or 10 vibration/s (sample Mn3). In each case, the resulting black solid was transferred to a capped bottle and heated at 80 ℃ for 4 h. The product was then washed with water until the wash water was neutral, dried at 100 ℃ overnight and finally calcined at 450 ℃ for 4.5 h. Traditional methods were also used to synthesize four additional samples via the direct calcination of the Mn(CH₃COOH) at 450 ℃ for 4.5 h in two different ovens (vertical (sample MnCV) or horizontal (sample MnCH)) and by precipitation with NaOH using Mn(CH₃COO)₂ (sample MnPA) or Mn(NO₃)₂ (sample MnPN) as the precursor, based on a procedure described elsewhere [24].

Nitrogen adsorption isotherms were acquired at –196 ℃ with a Quantachrome NOVA 4200e multi-station apparatus to evaluate the textural properties of the manganese oxide samples. The surface areas of the oxides (S_BET) were determined according to the Brunauer-Emmett-Teller method. The structure and phase purity of each prepared material was analysed by X-ray diffraction (XRD) with a Philips X'Pert MPD diffractometer (Cu-K_α, λ = 0.15406 nm). Data were collected over the range of 2θ = 20°–80°. The crystallite sizes in the catalysts were determined by Rietveld refinement.

Scanning electron microscopy (SEM)/energypdispersive spectroscopy (EDS) observations were performed using a high resolution (Schottky) environmental SEM instrument in conjunction with X-Ray microanalysis and electron backscattered diffraction (Quanta 400 FEG ESEM/EDAX Genesis X4M).

The reactivities of the oxygen species present in the manganese oxides were assessed based on temperature programmed reduction (TPR) data obtained with a fully automated AMI-200 Catalyst Characterization apparatus (Altamira Instruments) equipped with a thermal conductivity detector (TCD) to determine the hydrogen consumption during the reduction step. In a typical run, 0.050 g of the sample was placed in a U-shaped quartz tube located inside an electrical furnace and heated from room temperature to 600 ℃ at 5 ℃ min^–1 under a flow of 5 vol%. H₂/Ar at 30 cm³ min^–1, while the hydrogen consumption was monitored using the TCD. At the end of each analysis, hydrogen calibration was carried out at 50 ℃.

The X-ray photoelectron spectroscopy (XPS) analyses were performed using a Kratos AXIS Ultra HAS. Data were acquired with a monochromatic Al K_α X-ray source (1486.7 eV) operating at 15 kV (90 W) in the fixed analyser transmission (FAT) mode with a pass energy of 40 eV for regions of interest and 80 eV for surveying.

The catalytic oxidation of the VOCs was performed under atmospheric pressure in a fixed-bed reactor consisting of a U-shaped quartz reactor (6 mm internal diameter) inside a temperature-controlled electric furnace. In preparation for each run, 50 mg of catalyst was mixed with an inert material (carborundum) of the same particle size as the catalyst (0.2‒0.5 mm) to minimize thermal effects. Prior to each trial, the catalyst was pre-treated in air at 400 ℃ for 1 h. The oxidation experiment was then initiated using a VOC concentration of 1000 mg cm^–3 and a space velocity of 53, 050 h^–1 in conjunction with a total feed flow rate of 500 cm³ min^–1. The reaction was carried out in two cycles consisting of increasing and decreasing temperature at a heating/cooling rate of 2.5 ℃ min^–1.

The composition of the gas stream was determined by gas chromatography, using a Master GC Dani equipped with a flame ionization detector and by a CO₂ non-dispersive infrared (NDIR) sensor (Vaisala GMT220). The conversion to CO₂ (X_CO2) was calculated as X_CO2 = F_CO2/(v·F_{VOC, in}), where F_{VOC, in} is the inlet molar flow rate of the VOC, F_CO2 is the outlet molar flow rate of CO₂ and v is the number of carbon atoms in the VOC molecule (v = 4 for ethyl acetate and v = 6 for butyl acetate). Selected experiments were carried out in duplicate and the results were founded to be reproducible with a maximum error of 1%.

The BET surface areas (S_BET) of the manganese oxide catalysts are provided in Table 1. The nitrogen adsorption-desorption isotherms of the materials prepared by the same methodology were found to be similar, and the materials had surface areas between 10 and 120 m² g^–1. The samples prepared by solid-state reaction (Mn2 and Mn3) had the highest surface areas, especially the Mn3, which was prepared using the highest milling vibrational rate, while all the other samples had very low surface areas. Ding et al. [23] studied K-OMS-2 specimens prepared by a solvent-free method and found that these materials had S_BET much higher than those prepared by reflux. The samples prepared by calcination of the precursor (MnCV and MnCH) or by precipitation (MnPN and MnPA) had the lowest surface areas.

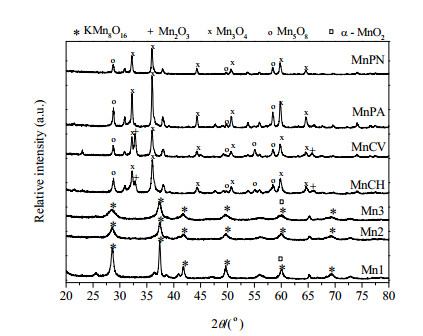

The effect of the synthesis methodology on the crystallization of the manganese oxides was assessed based on XRD analysis, and the associated data are summarized in Table 1, while Fig. 1 presents XRD patterns of the materials. Significant differences are evident between these patterns, indicating the presence of different manganese oxide phases. As expected, cryptomelane phases were obtained in the specimens prepared by reflux (Mn1) and solid state reaction methods (Mn2 and Mn3). The Mn2 consisted of a pure cryptomelane phase (KMn₈O₁₆), whereas the Mn1 and Mn3 were mixtures of KMn₈O₁₆ andbα-MnO₂. Some unidentified peaks in these patterns can possibly be ascribed to the presence of K [25]. Comparing the XRD patterns of samples the Mn1, Mn2 and Mn3, the latter exhibits more peak broadening, implying smaller crystallite sizes in this specimen. The crystallite domain sizes in the cryptomelane-type materials were in fact quite different; samples Mn1, Mn2 and Mn3 had crystallite sizes (as calculated by Rietveld refinement using the [211] plane) of 29, 18 and 10 nm, respectively. These values are in good agreement with data reported by Schurz et al. [26], who also obtained crystal sizes between 10 and 30 nm for cryptomelane samples. It is clear that the crystal size decreases with increases in the milling vibration process, as smaller crystals were obtained in the Mn3. The samples prepared by thermal decomposition of the precursor (MnCH and MnCV) evidently contained varying amounts of Mn₃O₄, Mn₅O₈ and α-Mn₂O₃, with Mn₃O₄ present in the highest concentrations. This phase was also predominant in the samples prepared by precipitation with sodium hydroxide (MnPA and MnPN), although only Mn₃O₄ and Mn₅O₈ were present in those materials as additional phases. Crystal sizes in the range of 30 to 40 nm were observed for these samples.

Fig. 2 shows SEM micrographs of the materials. The samples synthesized by the solid-state reaction method exhibit homogeneous nanorod morphologies. These nanorods are smaller in the Mn3 compared with the material obtained using the reflux method (Mn1), which instead shows a fibrous morphology, typical of cryptomelane prepared by this method. The diameters of these nanorods are in the range of 10‒20 nm, in agreement with the particle sizes (10 and 18 nm for Mn3 and Mn2, respectively) calculated from the XRD patterns. These nanorods were therefore much smaller than those in the sample prepared by the reflux approach (Mn1). In these SEM images, the structure of the Mn3 is finer than that of the Mn2. This is consistent with the BET measurements, because smaller particle sizes will usually result in higher surface areas. The samples prepared with KMnO4 (Mn1, Mn2 and Mn3) show different morphologies from the others. Samples MnCH or MnCV have similar homogeneous surface morphologies with prismatic-shaped particles, while MnPA and MnPN, which were prepared by the precipitation method, present different surface morphologies. These results demonstrate that the precursor used in the precipitation method affects the morphology and the structure of the resulting manganese oxide. MnPA has a very heterogeneous surface with prismatic particles having widely different sizes, while the MnPN shows a more homogeneous surface.

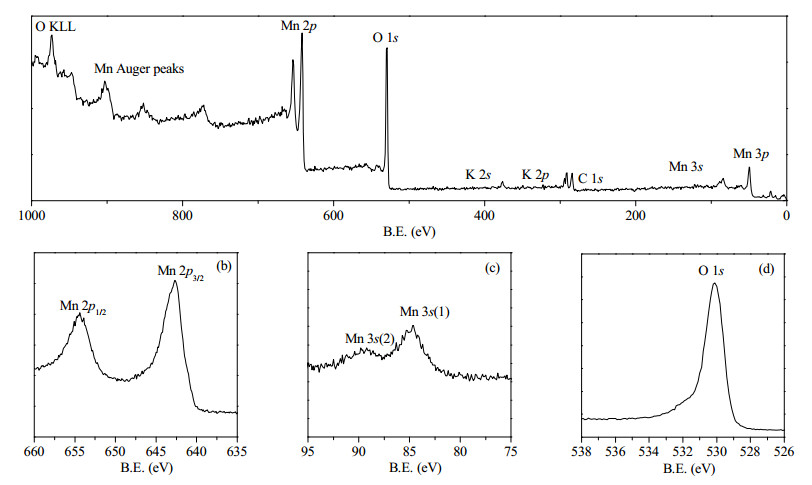

XPS data were acquired to investigate the manganese oxidation state on the oxide surfaces. Fig. 3(a) presents the XPS survey spectrum acquired using the Mn1 specimen (which was similar to those obtained from the other samples) over the binding energy range from 0 to 1000 eV. Characteristic Mn 2p, Mn 3s, Mn 3p and O 1s core level signals are observed, as well as Auger signals from Mn and O. The Mn:O atomic ratios on the specimen surfaces (Table 2) varied between 0.49 and 0.56, with the samples prepared by the solvent-free reaction and reflux techniques (Mn1, Mn2 and Mn3) having lower values. The shape of the O 1s spectra suggests the presence of overlapping peaks generated by different oxygen species (Fig. 3(d)). In the spectrum of each sample, the most intense peak appears in the binding energy range between 529.9 and 530.3 eV, typically associated with lattice oxygen (O^2–). This is therefore believed to be the predominant O species in these manganese oxides. At higher binding energies, the presence of surface adsorbed oxygen (O₂^2– or O^–), OH groups and oxygen vacancies (531.2‒531.5 eV), and adsorbed molecular water (532.0‒532.5 eV) is indicated by two shoulders [17, 27].

The oxidation states and relative amounts of various Mn species in each oxide were ascertained by analysing Mn 2p and Mn 3s X-ray core level photoelectron spectra. Fig. 3(b) and (c) present the Mn 2p and Mn 3s spectra of the Mn1. The Mn 2p_3/2 and Mn 2p_1/2 centroid between 642.6 and 654.4 eV provides evidence for the formation of the cryptomelane phase, in agreement with reported values [28, 29]. Although it was difficult to identify the oxidation states, the binding energy shifts in the Mn 2p and Mn 3s regions can provide some information. In particular, the magnitude of the Mn3s multiplet splitting can be used to calculate the average oxidation state (AOS) of manganese, according to the relationship AOS = 8.95‒1.13 ∆E_s (eV) where ∆E_s represents the extent of multiplet splitting (the distance between the main peak and its satellite) [30]. Fig. 4(b) shows the Mn 3s spectra for the prepared manganese oxides highlighting the ∆E_s parameter. Table 2 summarizes the corresponding AOS values. It is evident that samples prepared by the solvent-free reaction and reflux methods (Mn1, Mn2 and Mn3) had higher AOS values (3.6‒3.7) while the oxides obtained using the conventional methods had lower values (2.6‒2.8). All specimens generated similar Mn 2p core level spectra (Fig. 4(a)). Based on the theoretical oxidation numbers of manganese stabilized as KMn₈O₁₂, MnO₂, Mn₃O₄, Mn₅O₈ and Mn₂O₃ (the crystalline phases identified by XRD) and the relative proportions of these different phases as reported in Table 1, the average bulk oxidation states for the manganese samples as determined by XRD show a maximum deviation of 8% relative to the AOS values calculated from XPS data. Thus there is good agreement between the results obtained from both techniques. As an example, the MnPN was found to contain 95% Mn₃O₄ and 5% Mn₅O₈, corresponding to an average bulk oxidation state of 2.7 [95% × (+2.67) + 5% × (+3.2)], while an AOS of 2.6 was calculated using the XPS results.

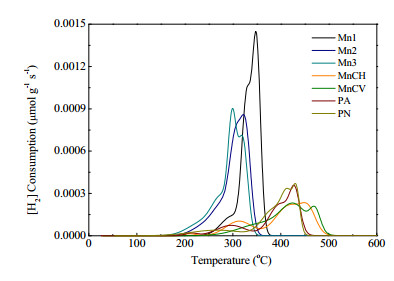

H₂-TPR experiments were performed to evaluate the reactivity of O species in these materials with hydrogen (that is, the reducibility of the catalysts). Fig. 5 provides the TPR profiles of the different materials, each of which is characterized by the presence of overlapping components between 200 and 500 ℃. However, there are evident differences between the Mn1, Mn2 and Mn3 (samples prepared by the solvent-free and reflux methods) and MnCH, MnCV, MnPA and MnPN (produced by conventional methods). In the first group, the TPR profiles are narrower, with hydrogen consumption between 200 and 375 ℃, and exhibit intense peaks with maxima in the range of 300‒350 ℃. The remaining samples (MnCH, MnCV, MnPA and MnPN) produced TPR profiles that are wider and in which the major peaks appear at higher temperatures. In keeping with the results of the XRD and XPS analyses, these data suggest that the oxides contain a variety of crystalline phases that significantly affect their reducibility. Furthermore, the data in Table 1 demonstrate that both the onset of reduction and the maximum temperature of the most intense reduction peak increase as the average oxidation state decreases (Table 2). Table 1 also shows that a greater degree of hydrogen consumption was exhibited by the Mn1, Mn2 and Mn3.

The hydrogen consumption of the Mn1 begins at approximately 250 ℃, while the consumption onset associated with the Mn2 and Mn3 is shifted to lower temperatures (< 200 ℃). The low specific surface area of the Mn1 may explain the relatively high temperature of the first reduction step [31]. These results clearly indicate that the Mn2 and Mn3 were reduced more readily than the Mn1.

Comparing the TPR profiles of the MnCH, MnCV, MnPA and MnPN, the temperature for the onset of reduction is similar for each. In addition, the temperature of the most intense reduction peak is much higher in these samples, while their hydrogen consumption values are significantly lower.

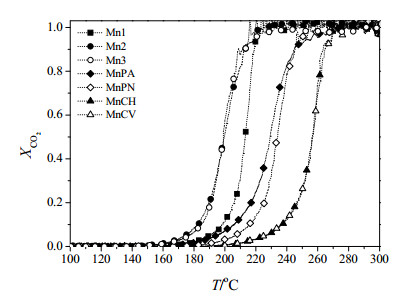

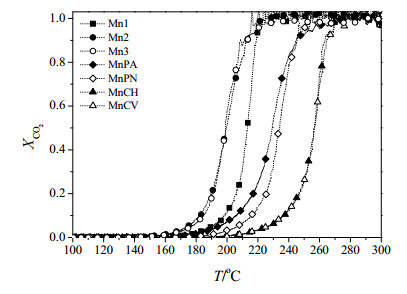

Both ethyl and butyl acetate were oxidized over the manganese oxide materials to evaluate the effects of the oxide physical and chemical properties on catalytic performance. Temperature programmed experiments (so-called "light-off curves") were employed for rapid screening. In this type of test, the catalysts with the highest performance can be identified based on achieving a specific conversion value at a lower temperature. These trials also demonstrated that each of the oxides was highly stable. Each test consisted of two cycles increasing and decreasing temperature at a heating/cooling rate of 2.5 ℃ min^–1 and the catalytic performance was very similar during the increasing and decreasing temperature steps. The oxide catalysts were compared based on the results obtained during the decreasing temperature cycle, and the catalytic performance is plotted as functions of reaction temperature in Figs. 6 and 7. Table 3 gives the temperatures required to achieve 50% (T₅₀) and 90% (T₉₀) conversions of ethyl acetate and butyl acetate to CO₂. Each of the materials exhibited activity during the VOC oxidation reactions, although the catalytic performance varied depending on the preparation method. The following trend was observed with regard to decreasing performance: Mn2 ≈ Mn3 > Mn1 > MnPA > MnPN > MnCV ≈ MnCH. The data show that the T₉₀ values were between 213 and 265 ℃, and between 202 and 265 ℃ for ethyl acetate and butyl acetate, respectively.

The catalytic activity of manganese oxides during VOC oxidation is typically determined by the manganese oxidation state, lattice oxygen content, degree of crystallinity, specific surface area or even reducibility. However, the results obtained in this study do not provide evidence for a clear correlation between catalytic performance and the various properties of the catalysts. As an example, the performance of these materials cannot be related to the surface area, as samples Mn2 and Mn3 (both prepared by solid-state reaction) show essentially the same level of activity in spite of their different surface areas. In addition, the Mn1 and MnPA have the same surface area but significantly different catalytic abilities. Therefore, these variations in performance must be related to the manganese oxide species present on the catalyst surface, and consequently to the AOS value. It is well established that the oxidation of organic molecules over manganese oxide catalysts at low temperatures involves a Mars-van-Krevelen mechanism [5, 10, 14] that includes a redox cycle on the catalyst surface with the participation of lattice oxygen. The involvement of lattice oxygen in the VOC oxidation process can be evaluated by experiments without oxygen in the feed. Thus, additional oxidation experiments were performed, in which the air was replaced with nitrogen. In these trials, following the pre-treatment step, the reactor was purged with nitrogen to remove physisorbed oxygen. Subsequently, the reactions were performed using the same VOC composition as in the oxidation reactions, and the resulting CO₂ was measured. If VOC oxidation is observed under such conditions, this demonstrates the involvement of lattice oxygen. The highest CO₂ releases during these experiments, for both VOCs, were obtained using samples prepared by the solvent-free and reflux approaches. In the case of ethyl acetate oxidation, the CO₂ production varied between 576 and 705 µmol g^–1 when using the Mn1, Mn2 and Mn3, compared with values of 120 to 499 µmol g^–1 when using the MnPA, MnPN, MnCH and MnCV. The oxidation of butyl acetate gave the same trend, with 320 to 541 µmol g^–1 CO₂ formed using the Mn1, Mn2 and Mn3 and only between 59 and 151 µmol g^–1 resulting from the MnPA, MnPN, MnCH and MnCV.

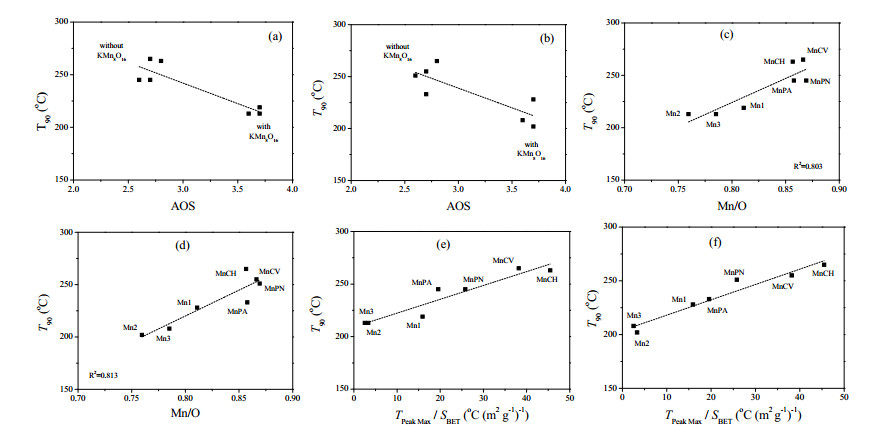

These experiments also confirmed that the oxides with the highest oxidation states exhibit the best oxidation activities. In fact, a trend can be observed in Fig. 8(a) and (b) in which the Mn1, Mn2 and Mn3 (having the highest AOS values of 3.6‒3.7) are the most active and thus show the lowest T₉₀ values for ethyl and butyl acetate. Conversely, the MnPA, MnPN, MnCH and MnCV (with lower AOS values of 2.6‒2.8) require higher temperatures for the complete oxidation of the esters. This is closely related to the two different types of samples prepared: one with and another without cryptomelane-type manganese oxides. Due to the close AOS values of the two groups of samples, a clear differentiation of their performances based exclusively on this parameter is not possible. For instance, samples Mn1 and Mn2 have the same AOS but slightly different catalytic performance. Therefore, it can be concluded that the performance of these samples must also be related to the presence of small amounts of α-MnO₂, as detected by XRD analyses of the Mn1 and Mn3, in contrast with the Mn2, which was purely cryptomelane.

In a previous study, Luo et al. [21] attributed the superior catalytic performance of cryptomelane materials to their strong affinity for organic compounds. In a later work, Chen et al. [32] suggested that the elevated activity of cryptomelane was due to the tunnel structure of this phase, which promotes the adsorption of organic compounds and the subsequent reaction. However, the presence of other phases significantly affects the cryptomelane performance. As an example, Santos et al. [17] observed that the presence of Mn₃O₄ improves the catalytic performance of cryptomelane due to the increased the mobility of lattice oxygen, while the Mn₂O₃ phase has the opposite effect. A qualitative evaluation of the present catalytic results confirms that samples with a cryptomelane structure (Mn1, Mn2 and Mn3) had the best catalyst performance. Furthermore, it appears that the presence of α-MnO₂ may negatively affect performance. Comparing the samples with low AOS values (MnCH, MnCV, MnPA and MnPN) and a mixture of phases, it can be concluded that the presence of α-Mn₂O₃ decreases the catalytic performance.

Nevertheless, a close correlation between the VOC oxidation performance and the Mn/O ratios calculated from XPS data is evident in Fig. 8(c) and (d), demonstrating the important role of surface oxygen in the catalytic performance of the samples. The oxide with the lowest Mn/O ratio (Mn2) had the highest activity, while the materials prepared by the conventional methods and having the highest Mn/O ratios produced the highest T₉₀ values (i.e., had the lowest activities).

A strong relationship between T₉₀ and the reduction temperature of the most intense peak normalized by the surface area is also apparent (Fig. 8(e) and (f)). This parameter, T_PeakMax/S_BET, emphasizes the simultaneous importance of lattice oxygen (hence reducibility) and available surface area on the catalytic oxidation of the VOCs. Accordingly, the samples with the lowest reduction temperatures showed higher catalytic activities and required lower temperatures for the total oxidation of ethyl and butyl acetate. Previous works [11, 33, 34] have also demonstrated a relationship between the catalytic performance and the reducibility of the catalysts, which is in agreement with the results obtained in this work. These findings confirm that the oxidation of the VOCs proceeds via the Mars-van-Krevelen mechanism, such that the surface lattice oxygen of the catalysts is involved in the reaction with the VOC. As a result, the reducibility of the material is an important factor.

The samples prepared in this work by the novel solvent-free method and reflux approach had higher amounts of surface lattice oxygen (as indicated by the O_I peak intensities) and lower reduction temperatures compared with the oxides obtained using conventional methods. However, comparing the Mn1 and Mn2, it can be concluded that the catalytic performance is not determined solely by the concentration of surface lattice oxygen, because the Mn1 contained more of this type of oxygen but showed slightly lower performance than the Mn2.

In summary, it is evident that the surface chemistry of the two sets of samples was more important than the textural properties in determining catalytic performance during VOC oxidation, although no direct correlations can be shown for each individual parameter. The data also show that an efficient manganese oxide catalyst (Mn2) was prepared using the solvent-free technique and could have applications as an alternative to the noble metal catalysts more typically used in the oxidation of VOCs.

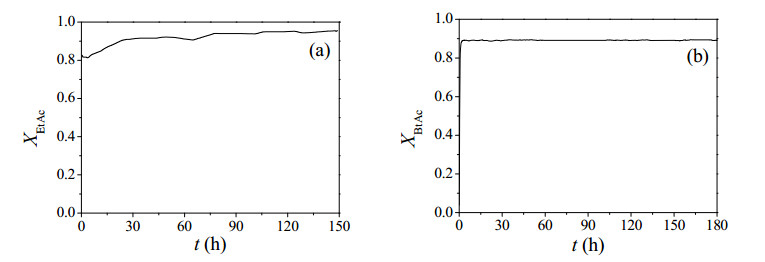

Prolonged use experiments were carried out with the Mn2 to examine the stability of the catalyst. This specimen was selected due to its high catalytic performance. The conversions of ethyl acetate and butyl acetate at 210 and 200 ℃ as a function of time are plotted in Fig. 9(a) and (b), respectively. These reaction temperatures were employed to achieve a high initial VOC conversion of approximately 90%. The ethyl acetate conversion evidently increased by 13% over a span of 150 h, while the catalyst remained stable during butyl acetate oxidation over approximately 180 h, showing a conversion of 90% over the entire test. Similar stability behaviour was also observed when assessing conversion to CO₂.

Manganese oxides were synthesized by different methods. The preparation methodology was found to play an important role in determining the catalytic performance, although each of the oxides was highly active during the oxidation of ethyl acetate or butyl acetate to CO₂. The catalysts prepared by the reflux and solid state reaction methods, all of which contained a cryptomelane phase, were the most active. In addition, the cryptomelane-type manganese oxide obtained using the novel solvent-free technique showed superior performance to that prepared by the conventional reflux approach. Grinding of the precursor by ball-milling allows controlled and reproducible synthesis of cryptomelane manganese oxide, which is typically challenging when using manual grinding in a mortar. Significant differences in catalytic performances were observed between the various specimens. This variation indicates that the performance is related to the ability of the material to donate lattice oxygen at the catalyst surface, as well as to reducibility, average oxidation state and available surface area. The manganese oxide catalyst prepared by the solid state reaction method also exhibited good stability during prolonged usage.
