A MoS2 nanocatalyst with surface-enriched active sites for the heterogeneous transfer hydrogenation of nitroarenes
Jia Wanga,b, Yajie Zhanga,c, Jiangyong Diaoa, Jiayun Zhanga,c, Hongyang Liua, Dangsheng Sua,d
a. Shenyang National Laboratory for Materials Science, Institute of Metal Research, Chinese Academy of Sciences, Shenyang 110016, Liaoning, China;
b. State Key Laboratory for Oxo Synthesis and Selective Oxidation, Lanzhou Institute of Chemical Physics, Chinese Academy of Sciences, Lanzhou 730000, Gansu, China;
c. School of Materials Science and Engineering, University of Science and Technology of China, Shenyang 110016, Liaoning, China;
d. Energy Research Resources Division, Dalian National Laboratory for Clean Energy, Dalian Institute of Chemical Physics, Chinese Academy of Sciences, Dalian 116023, Liaoning, China
* Corresponding author. Hongyang Liu, Tel: +86-24-83970027; E-mail: liuhy@imr.ac.cn;
Dangsheng Su, E-mail: dssu@imr.ac.cn
Foundation item: This work was supported by the Ministry of Science and Technology (MOST, 2016YFA0204100 and 2011CBA00504), the National Natural Science Foundation of China (21573254, 91545110), the Youth Innovation Promotion Association (CAS), and the Sinopec China
Abstract: A highly efficient and reusable plane-curved and interlayer-expanded MoS2 nanocatalyst with increased exposure of active sites was prepared. The catalyst was used for the heterogeneous hydrogen transfer reaction of nitroarenes with hydrazine monohydrate as a reductant under mild reaction conditions without pressure and base, which was different from other hydrogen transfer systems that require the presence of a base (e.g., propan-2-ol/KOH). The sandwiching of carbon between the MoS2 nanosheets increased the distance between the layers of MoS2 and exposed more Mo sites, resulting in superior catalytic performance compared with that of bulk MoS2 catalyst. The active hydrogen (H*) generated from N2H4 could directly transfer to the -NO2 groups of nitrobenzene to form aniline followed by N2 emission, which was confirmed by detecting the gas emission with mass spectrometry during the decomposition of hydrazine or the co-existence of nitrobenzene and hydrazine.
© 2018, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: Molybdenum disulfide    Interlayer expansion    Hydrogen transfer reaction    Nitrobenzene reduction    Alkali-free
表面暴露活性位点的MoS2纳米催化剂催化硝基化合物的非均相氢转移反应
王嘉a,b, 张雅洁a,c, 刁江勇a, 张家云a,c, 刘洪阳a, 苏党生a,d
a. 中国科学院金属研究所沈阳材料科学国家(联合)实验室, 辽宁沈阳 110016;
b. 中国科学院兰州化学物理研究所羰基合成与选择氧化国家重点实验室, 甘肃兰州 730000;
c. 中国科学技术大学材料科学与工程学院, 辽宁沈阳 110016;
d. 中国科学院大连化学物理研究所洁净能源国家实验室(筹), 辽宁大连 116023
摘要:MoS2具有独特的二维层状结构,被广泛用于加氢脱硫过程以及HER反应,而且可以通过减少MoS2的颗粒尺寸以及层数来进一步改善其催化活性.通过剥离方法得到的MoS2纳米片虽然表现出优良的加氢脱硫活性,但容易团聚使其循环使用性能很差.如果通过引入纳米碳将单层的MoS2纳米片进行有效“隔离”,则可明显降低团聚的可能性,从而改善其催化性能和稳定性.本文通过一步水热法制备出了碳嵌入的MoS2纳米颗粒(MoS2@C),将其应用于硝基苯类化合物的氢转移反应中表现出了非常好的催化性能.进一步通过粉末X射线衍射(XRD)、X射线光电子能谱(XPS)、透射电子显微镜(TEM)和在线质谱检测等手段研究了层间距增加的MoS2催化剂在硝基苯类化合物的氢转移反应中催化性能提升的原因. XRD,SEM和TEM结果表明,通过引入碳材料可以明显增加MoS2的层间距,同时减小其颗粒尺寸,而且使MoS2表现出弯曲的(002)晶面.由于存在一定的曲率,这种(002)晶面也会表现出一定的催化能力.氮气物理吸附结果表明,这种MoS2@C复合物具有较高的比表面积(89m2g-1)和明显的介孔结构(~20nm),在催化反应中有利于底物扩散,进而改善催化性能.XPS结果显示,与体相的MoS2相比,MoS2@C表面暴露出更多的不饱和Mo原子(Mo/S=0.71(MoS2@C)vsMo/S=0.63(MoS2)),形成了独特的S-Mo-O结构以及缺陷结构.在硝基苯类化合物的氢转移反应中,层间距增加的MoS2@C由于暴露出更多的活性位和具有弯曲的(002)晶面,表现出了更高的催化活性(TOF=3.66s-1 vs 1.24s-1(MoS2)). 通过质谱对反应过程的追踪发现,在只有肼存在的条件下,MoS2@C催化肼分解的主要气相产物是氨气.这说明MoS2@C能够使肼发生N-N键的断裂.而当肼和硝基苯同时存在的条件下,质谱检测的气相产物主要是氮气,表明硝基苯的存在可以诱导肼逐步发生N-H键断裂,在催化剂表面形成活性的H物种,进而转移到硝基苯上使其还原得到苯胺.使用偶氮苯和氧化偶氮苯作为反应底物,发现MoS2@C很难使其还原为苯胺,这说明在该催化体系中,硝基苯的还原过程主要是沿着直接路径(硝基苯-亚硝基苯-苯胺)进行的.
关键词二硫化钼    增加的层间距    氢转移反应    硝基苯还原    无碱体系

1 Introduction

Aromatic amines are widely used as important intermediates for the industrial production of agrochemicals, pharmaceuticals, antioxidants, dyes, and polymers. The transformation of nitro compounds into anilines represents an important reaction in organic synthesis in the laboratory and industry [1, 2]. The use of heterogeneous catalysts demonstrates several advantages over homogeneous systems, such as easy recovery and recycling of the catalysts. One of the most widespread catalytic processes is the catalytic hydrogenation using transition metal (Pt, Pd, Ru, Au, and Ni) catalysts with H2 for the hydrogenation of nitroarenes [3-7]. Another route for the hydrogenation of nitroarenes is hydrogen transfer reduction, which is safer and more ecofriendly compared with the hydrogenation reduction process with hazardous molecular hydrogen as a reductant. Different kinds of hydrogen sources (such as HCOOH, HCOONH4, PhSiH3, propan-2-ol/KOH, H2NNH2) have been applied for the catalytic transfer hydrogenation of nitro compounds [8-11]. Among them, hydrazine has many advantages such as avoiding the use of a flammable gas, autoclaves, and bases, producing harmless by-products (N2 and H2O) [12], and simplifying the reactor; therefore, the use of hydrazine for the reduction of –NO2 has attracted extensive attention [13-17].

Molybdenum disulfide (MoS2) is a kind of layered inorganic compound consisting of S-Mo-S layers coupled through weak van der Waals interactions, which has been widely used for the hydrodesulphurization process [18, 19] and HER [20, 21]. It has been shown that the catalytic activity could be improved by reducing the size of the MoS2 particles [22, 23] and the layers of MoS2[24, 25] because the activity is normally ascribed to the edge sites and the vacancies on the plane (such as S vacancy, unsaturated Mo sites) of the MoS2 nanoclusters [26-29]. Therefore, exfoliated MoS2 nanosheets exhibit enhanced catalytic performance for the hydrodesulphurization of dibenzothiophene [24], but they easily aggregate, resulting in low activity or the loss of catalytic performance. If the single-layer MoS2 nanosheets are uniformly partitioned by the insertion of carbon or other materials, their aggregation is effectively inhibited, which improves their catalytic performance and stability [19].

Beller et al. [30] proposed that molybdenum(Ⅳ) complexes bridged by several sulfide ligands could be used as homogenous catalysts for the transfer hydrogenation in the co-presence of HCOOH and NEt3, whereas limited activity was observed for lower nuclearity MoS2. Bulk MoS2 and an oxygen-implanted MoS2 catalyst have been used to catalyze the transfer hydrogenation of nitroarenes to the corresponding anilines with hydrazine as the hydrogen source in a closed tube or pressure bottle with or without Ar protection [31, 32]; however, these processes are unsafe because of the increased pressure owing to the formation of nitrogen. The catalytic behavior of few-layer MoS2 catalyst has not been reported for the reduction of nitroarenes under the presence of hydrazine.

Herein, our objective was to develop an inexpensive, easily prepared, and recyclable nonprecious metal catalyst that enables the reduction of nitroarenes under safe and mild conditions (e.g., under low temperature, normal pressure, and without base). Interlayer-expanded MoS2 obtained by inserting carbon was synthesized by using a hydrothermal method followed by calcination under a hydrogen atmosphere. The material exhibited a high abundance of Mo sites and curved interlayers. In the transfer hydrogenation of nitroarenes with hydrazine, the few-layer and plane-curved MoS2 with more Mo sites showed higher activity than that of bulk MoS2. The catalyst also exhibited high stability and could be reused at least 7 times, and displayed excellent chemoselectivity for the reduction of the nitro group in the presence of other functional groups such as halogens, ethers, and CN groups.

2 Experimental
2.1 Materials

Nitroarenes (99%) were purchased from Aladdin Reagent Co. Ltd., Shanghai, China. Glucose, Na2MoO4·2H2O, anisole, hydrazine monohydrate (85%), and ethanol (AR) were supplied by China Medicine Group Shanghai Chemical Reagent Company. Thiourea and sulfur powder (99%) were obtained from Aladdin Co.

2.2 Preparation of catalysts

The interlayer-expanded MoS2 catalyst (MoS2@C) was prepared by a one-pot hydrothermal synthesis by inserting amorphous carbon in MoS2 according to a literature procedure [33]. In a typical synthesis process, 0.30 g of Na2MoO4·2H2O (molybdenum source) and 0.40 g thiourea (sulphur source) were dissolved in 60 mL deionized water, and then 1.00 g of glucose was added into the solution as a carbon source. The obtained clear solution was transferred into a Teflon-lined stainless-steel autoclave and heated at 240 ℃ for 24 h. After cooling naturally, the black precipitate was collected by filtration, washed with deionized water, and dried at 80 ℃ for 12 h. The dried black powder was annealed at 800 ℃ for 2 h in a stream of 10% H2/Ar (200 mL min−1) and the product was denoted as MoS2@C. The bulk MoS2 was synthesized by a similar process as for the synthesis of MoS2@C but without adding glucose. Carbon powder (denoted as C) was also synthesized by a similar hydrothermal process by only adding glucose as a carbon source, and the S, N co-doped carbon powder (S, N-doped C) was also synthesized by a similar process by only adding glucose and thiourea as a carbon source and sulphur/nitrogen source, respectively.

2.3 Catalytic reaction

The nitroarene reduction reactions were carried out in a 25 mL round-bottom flask containing a certain amount of catalyst, 1.23 g of nitrobenzene (10 mmol), 1.5–4.0 equivalents (equiv.) of hydrazine monohydrate, 0.57 g of anisole as an internal standard, and 2 mL ethanol as solvent. The flask was connected to a water-cooled condenser and the mixture was heated in an oil bath for a set period of time. When the reaction was completed, ethanol was added and the mixture was accurately diluted to 25 mL in a volumetric flask. The products were analyzed with a gas chromatogram (Agilent 7890A) equipped with a FID detector.

2.4 Characterization

X-ray diffraction (XRD) patterns were recorded on a Rigaku D/Max-2500PC diffractometer with a Cu Kα radiation source operating at 50 kV, 300 mA. The mesostructure and morphology of the samples were characterized by transmission electron microscopy (TEM) on a FEI T12 with an accelerating voltage of 120 kV. Scanning electron microscopy (SEM) images were taken using an FEI Nano450 scanning electron microscope operated at 10–15 kV. An energy dispersive spectroscopy (EDS) spectrometer was attached to an FEI Nano450 SEM to analyze the element composition of the samples. Nitrogen adsorption-desorption data were measured with a Micromeritics ASAP 2020 analyzer at 77 K. Prior to the measurements, the samples were degassed at 120 ℃ for 12 h. The specific surface areas were calculated by the Brunauer-Emmett-Teller (BET) method using adsorption data in a relative pressure range from 0.02 to 0.20. The pore size distribution (PSD) was calculated from adsorption data of isotherms using the Barett-Joyner- Halenda (BJH) model. The surface chemistry of the samples was investigated using an ESCALAB 250 instrument with Al Kα X-rays (1486.6 eV).

3 Results and discussion

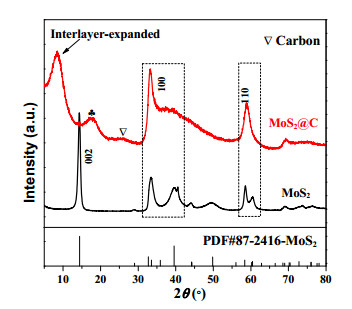

Fig. 1 shows the XRD patterns of bulk MoS2 and MoS2@C synthesized by the hydrothermal method [33]. It indicated that both samples were 2H phase, which was consistent with a hexagonal structure (JCPDS 87-2416). The (002) plane (2θ = 14.4°, d-spacing = 0.614 nm) of MoS2 was not observed in MoS2@C, whereas the diffraction peak observed at 2θ = 8.3° for MoS2@C indicated an increased interlayer distance from 0.614 (d(002) of MoS2) to 1.061 nm. It has been reported that the structure of MoS2 with a few layers cannot exhibit the (002) reflection [34, 35]; therefore, the absence of the (002) diffraction peak indicated that MoS2@C had a single layer or few layers structure. Moreover, a new peak at 2θ = 17.7° with d-spacing of ~0.500 nm for the MoS2@C sample suggested the formation of a new lamellar structure with carbon sandwiched between the MoS2 nanosheets [33, 36]. In fact, it is well known that the d(002)-spacing of bulk MoS2 and graphite are 0.62 and 0.34 nm, respectively. Therefore, the 0.500 nm d(002)-spacing of the peak at 2θ = 17.7° was between the d(002) of bulk MoS2 (0.62 nm) and carbon (0.34 nm). Furthermore, the d-spacing of the peak at 2θ = 8.3° for MoS2@C was ~1.061 nm, which was only twice that of the peak at 2θ = 17.7°, suggesting that the d-spacing of the peak at 2θ = 8.3° may be the distance between the adjacent MoS2 nanosheets after the insertion of a carbon layer between them. Therefore, it is possible that the peak at 2θ = 17.7° represents the spacing between the MoS2 layer and the carbon layer. The obvious broadening of the (100) and (110) diffraction peaks for MoS2@C indicated the formation of nanosized domains with a defect-rich structure along the basal [37, 38]. A weak diffraction peak at 2θ = 25.8° was observed, which was attributed to the (002) plane of carbon. Furthermore, no molybdenum oxides (MoO2 or MoO3) and molybdenum carbides were observed in MoS2 or MoS2@C, as revealed by XRD.

Fig. 1. The XRD patterns of the MoS2 materials.

The morphologies of the samples characterized by SEM are shown in Fig. 2. As shown in Fig. 2(A) and (B), bulk MoS2 consisted of stacked sheets with a micrometer-sized scale. The morphology of MoS2@C shown in Fig. 2(C) and (D) was a flower-like spherical architecture with a size of hundreds of nanometers (~200 nm).

Fig. 2. SEM images of MoS2 (A, B) and MoS2@C (C, D).

The microstructure of the samples was further clarified by HRTEM (Fig. 3). The bulk MoS2 sample showed a perfect layered sheet with an interlayer distance of ~0.622 nm in the (002) plane (Fig. 3(A) and (B)), which was similar with the hexagonal lattice of the MoS2 phase. The HRTEM images of MoS2@C (Fig. 3(C) and (D)) show that MoS2@C comprises few-layered nanosheets with an enlarged layer distance, ~1.09 or 1.43 nm, which was larger than that of bulk MoS2. One-or two-layers of amorphous carbon inserted into the MoS2 layers can be observed, which enlarged the distance between the two (002) planes of MoS2 (Fig. 3(D)). The distance between two adjacent MoS2 (002) planes and the carbon layer was ~0.510 nm, which may contribute to the diffraction peak at 2θ = 17.7° (Fig. 1). A curved (002) plane in MoS2@C can also be observed (Fig. 3(D)) owing to the dispersion of MoS2 in amorphous carbon during the hydrothermal process [33]. Such an expanded interlayer distance could improve the structural stability and expose more active edges. In fact, curved and distorted basal planes have also been shown to contribute to catalytic activity [37] except for the edges. Therefore, MoS2@C could exhibit better activity than bulk MoS2. N2 adsorption–desorption data (Fig. 3(E)) indicated that interlayer-expanded MoS2@C shows higher specific surface areas (89 m2 g−1) than that of bulk MoS2 (17 m2 g−1). Moreover, the BJH pore size distribution (Fig. 3(F)) showed that MoS2@C exhibited a pore size of ~20 nm.

Fig. 3. TEM images of MoS2 (A, B) and MoS2@C (C, D); N2 adsorption-desorption curves (E) and pore size distributions (F) of MoS2 and MoS2@C; The deconvolution of high-resolution Mo 3d spectra (G) and S 2p spectra (H) of the catalysts.

The elemental compositions characterized by EDS (Table 1) show that the atomic ratio of Mo and S for MoS2@C was ~0.67, which was larger than that in MoS2 (~0.53). The weight content of MoS2 in MoS2@C calculated according to the content of Mo was approximately 48.3 wt% (Table 1). The compositional analysis by XPS revealed that the atomic ratio of Mo and S was ~0.63 (MoS2) and ~0.71 (MoS2@C) (Table 1), which was slightly higher than the results obtained by EDS. The high-resolution Mo 3d XPS spectra (Fig. 3(G)) of the samples showed two peaks with binding energies of 229.5±0.1 eV and 232.6±0.1 eV, corresponding to the Mo 3d5/2 and Mo 3d3/2, respectively, which are characteristic of dominant Mo (Ⅳ) in the products. The high-resolution S 2p XPS spectra (Fig. 3(H)) exhibited two binding energies of 162.3±0.1 eV and 163.5±0.1 eV, corresponding to S 2p3/2 and S 2p1/2, respectively, which was consistent with the S (−2) valence state. Furthermore, the peak at 235.6±0.1 eV (Fig. 3(G)) corresponded to the oxygen bonding with Mo, confirming the existence of S–Mo (Ⅵ)–O bonds [39]. These unique Mo sites with O-and S-bonding provide more active defect sites and unusual electronic properties [40, 41]. Consequently, such an interlayer-expanded MoS2@C with high specific surface areas and a mesoporous structure exposes more edges and active sites on a curved (002) basal plane, which may display excellent catalytic activity.

Table 1
The element analysis of the catalysts according to EDS and XPS.

Table 2 displays the catalytic behavior of various materials for nitrobenzene reduction to aniline under different conditions. In the absence of any catalyst, only 4.7% of nitrobenzene conversion was observed after 5 h at 80 ℃ (Table 2, entry 1). The complete conversion of nitrobenzene was obtained after the addition of bulk MoS2 catalyst, but a low selectivity to aniline was obtained (70.1%; Table 2, entry 2). Nitrobenzene was fully converted to aniline with a selectivity of > 99% (Table 2, entry 4) when MoS2@C was used as a catalyst. Moreover, the selectivity to aniline over MoS2@C catalyst was still higher than 95% with 1.5 equiv. of hydrazine hydrate (Table 2, entry 5 and 6), whereas an inferior aniline selectivity of 55.4% was obtained under the same conditions over MoS2 (Table 2, entry 3), suggesting superior catalytic performance of the MoS2@C catalyst containing an interlayer-expanded and curved (002) plane. No reaction occurred without N2H4 (Table 2, entry 7), which suggested that MoS2 itself could not reduce nitrobenzene to aniline. In previous studies, the carbonyl group (C=O) on the surface of oxidized carbon materials was considered to contribute to the conversion of nitrobenzene, with hydrazine hydrate as the reductant [42]. Although C–O groups existed (Fig. 4(A)) in the sample of C (synthesized by a similar process as that for MoS2@C, without adding Mo and S precursors), as shown in Table 2, entry 13, weak activity of C was obtained. Furthermore, the C 1s XPS spectra for C and MoS2@C had a similar shape (Fig. 4(A)). Therefore, the existing C–O groups in the MoS2@C also did not contribute the catalytic performance. Both sulfur powder and S, N-C (synthesized by a similar process as that for MoS2@C, without adding Mo precursor) could not convert nitrobenzene to aniline (Table 2, entry 14 and 15). Under the same reaction conditions (reaction temperature, reaction time, the amount of catalyst, and reductant), the MoS2@C gives an aniline yield at 99.4% with a TOF of 3.66 s−1 (Table 2, entry 4), which was higher than that of bulk MoS2 with a TOF of 1.24 s−1 and an aniline yield of 69.7% (Table 2, entry 2). A hot filtration experiment (Fig. 4(B)) indicated that the transfer hydrogenation using hydrazine as a reducing agent over MoS2@C was a heterogeneous reaction. These results demonstrated that MoS2 was responsible for the transfer hydrogenation of nitrobenzene, and MoS2 with a few curved layers exhibited high activity.

Table 2
Catalytic activity of different catalysts for the reduction of nitrobenzene a.

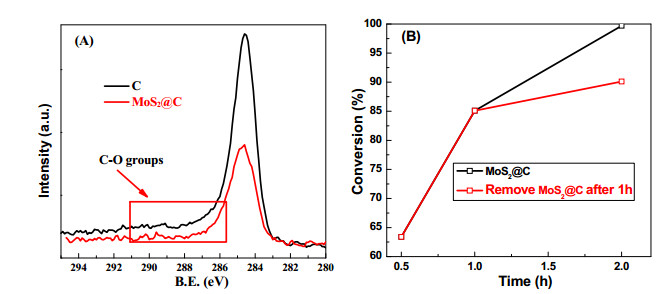

Fig. 4. (A) C 1s spectra of MoS2@C and C; (B) Hot filtration experiment. Reaction conditions: 10 mmol nitrobenzene, 4 equiv. of hydrazine hydrate, ethanol 2 mL, 5 mg MoS2@C, 80 ℃.

The conversion of nitrobenzene over MoS2@C still reached 99% with aniline selectivity of 98.2% under solvent-free conditions (Table 2, entry 10). Even if the amount of nitrobenzene was increased to 20 mmol without increasing the amount of MoS2@C, the complete conversion of the substrate was achieved with 82% aniline selectivity (Table 2, entry 11). Furthermore, in contrast to conventional catalytic systems using other hydrogen sources [8, 9, 14, 31, 32], our reaction was conducted under milder alkali-free conditions (80 ℃ without pressure) and without using noble metal catalyst [10]. In a further study, we conducted the reaction at a lower temperature (30 ℃). Complete conversion of nitrobenzene to aniline was obtained with 97.8% selectivity (Table 2, entry 12). Increasing the amount of MoS2@C reduced the time for the conversion of nitrobenzene to 1 h (Table 2, entry 8 and 9). Significantly, the MoS2@C catalyst could be easily recovered by filtration at least seven times with little reduction in its activity (Table 2, entry 16). The TEM images (Fig. 5(AF)) and ATR IR spectra (Fig 5(G)) results indicated that there was no obvious difference between the fresh and used MoS2@C catalyst, conforming the structural stability of the catalyst.

Fig. 5. TEM images of MoS2@C after reaction for the first run (A, B, C) and the seventh run (D, E, F). (G) ATR IR spectra of several catalyst.

The diimide (HN=NH) is considered to be the active intermediate formed in mixtures of hydrazine and oxidizing agents such as oxygen-copper ion or H2O2-copper ion in the presence of a weak proton source and could transfer hydrogen resulting in the formation of aniline or a –C–C– bond [43‒45]. A control experiment under a nitrogen atmosphere showed similar activity to that under an air atmosphere (Table 3, entry 1), which indirectly indicated that the diimide was not acting as a reagent in the present catalytic system. However, we cannot exclude the formation of diimide in our open catalytic system because the reaction was not protected from the atmosphere. Furthermore, no conversion of nitrobenzene was observed when hydrazine was replaced by ammonia (Table 3, entry 2), suggesting that it was impossible to transfer hydrogen from ammonia to nitrobenzene. Similar activity was obtained if the catalyst was mixed with hydrazine or nitrobenzene at 80 ℃ for 0.5 h before the addition of another reactant (nitrobenzene or hydrazine) (Table 3, entry 3 and 4). Therefore, the sequence of the addition of the reactants was not essential to obtain an active system. Generally, the hydrogenation process of nitroarenes can occur through two routes: direct reduction and an indirect condensation pathway [7]. The feasibility of this second route was investigated by using azoxybenzene (-AZO) or azobenzene (-AZ) as reactants. When -AZO was used as a reactant, the selectivity for aniline was 52.3% (Table 3, entry 5) and another side-product (AZ) was obtained in 47.7% yield. The reduction of -AZ reached a conversion of 79.9%, whereas only 40.7% selectivity of aniline was obtained (Table 3, entry 6). When nitrosobenzene (PhNO) was used as a substrate, its conversion was 99.7% in 1 h under the same conditions (Table 3, entry 7) and the selectivity to aniline was 90.1%, indicating that the reduction of PhNO to PhNH2 occurred faster than that of PhNO2 to PhNO (Table 3, entry 8). Moreover, the complete conversion of nitrobenzene to aniline occurred after 1 h when the amount of MoS2@C was increased (Table 2, entry 9). Therefore, the formation of aniline in the presence of the MoS2@C preferentially takes place through the direct reduction route.

Table 3
Catalytic activity of MoS2@C under different conditions a.

The gas product was analyzed by mass spectrometry to further study the reaction mechanism. As shown in Fig. 6, no H2 (m/z = 2) was detected in the gas phase with or without nitrobenzene, suggesting that the reduction of nitrobenzene occurred through a transfer hydrogenation route and the formation of an active H* could be stabilized on the surface of MoS2. When only hydrazine was mixed with MoS2@C at 80 ℃, NH3 (m/z = 17) was the main gas product owing to the decomposition of hydrazine [46]. The main gas product changed to N2 (m/z = 28) when nitrobenzene and hydrazine co-existed (Fig. 6(B)), which indicated that the addition of nitrobenzene changed the decomposition route of N2H4 and triggered the N2 emission (2PhNO2 + 3N2H4 → 2PhNH2 + 3N2 + 4H2O) [46]. Therefore, hydrazine decomposition over MoS2@C without nitrobenzene may preferentially occur through breakage of the N–N triple bond, resulting in the formation of large quantities of ammonia, which is unable to transfer hydrogen to –NO2 (Table 3, entry 2). These results indicated that the formation of aniline was through direct hydrogen transfer from hydrazine to –NO2 groups followed by N2 emission.

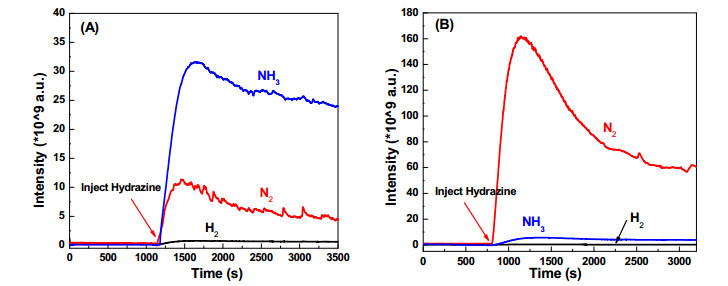

Fig. 6. The mass spectrometry (MS) analysis of the hydrazine decomposition (A) and nitrobenzene reduction with hydrazine (B) using MoS2@C catalyst. Conditions: 5 mg MoS2@C, 80 ℃, no solvent, He as the carrier gas. (A) 40 mmol N2H4; (B) 10 mmol nitrobenzene with 40 mmol N2H4.

To study the general applicability of MoS2@C catalyst for the transfer hydrogenation of nitroarenes, several kinds of nitroarenes were tested. The results in Table 4 indicate that good conversion (> 90%) for all the substrates and selectivity (> 95%) for the corresponding anilines could be obtained, which demonstrated excellent chemoselectivity for the reduction of the nitro group in the presence of functional groups such as halogen, ether, and CN groups. However, the procedure was not good for the selective reduction of the nitro group in the presence of C=C groups (Table 4, entry 13); this could be attributed to the formation of diimide (HN=NH), which could transfer the hydrogen to the –C=C– bond, resulting in the formation of a –C–C– bond [45].

Table 4
The substrate scope of the MoS2@C catalyst a.

Bulk MoS2 with a perfect layered structure exposes a few active edges, which results in inferior activity. In contrast, the interlayer-expanded MoS2 prepared by inserting carbon between the MoS2 layers exhibited more Mo sites at the edges and on the surface of a curved (002) plane, which leads to a highly efficient performance. Because the reaction goes through a direct transfer hydrogenation process from N2H4 to –NO2, the MoS2@C could abstract and stabilize hydrogen from N2H4 forming active H* on its surface, which further transfers to the –NO2 groups to obtain aniline. Therefore, the reduction of nitrobenzene occurs in step-by-step N–H bond dissociation to form active H*, which is stabilized by an active Mo site on the surface of MoS2, and then the –NO2 group is reduced by active H* followed by emission of N2.

4 Conclusions

The interlayer-expanded MoS2 with a high abundance of Mo sites on the surface of a curved (002) plane could convert nitrobenzene to aniline much more efficiently than bulk MoS2 using hydrazine as a reductant via a hydrogen transfer process under mild reaction conditions without pressure and base. The active hydrogen (H*) generated from N2H4 could directly transfer to –NO2 to form aniline followed by N2 emission. The catalyst exhibited excellent chemoselectivity for the reduction of the nitro group in the presence of halogen, ether, and CN groups. However, it was not good for the selective reduction of the nitro group in the presence of C=C bonds. It is necessary to further investigate the corresponding protocols to improve the chemoselectivity of the catalyst.
