ZrO2-modified Ni/LaAl11O18 catalyst for CO methanation:Effects of catalyst structure on catalytic performance
Hongmei Aia,b, Hongyuan Yanga, Qing Liua, Guoming Zhaoa, Jing Yanga, Fangna Guc
a. Key Laboratory of Low Carbon Energy and Chemical Engineering, College of Chemical and Environmental Engineering, Shandong University of Science and Technology, Qingdao 266590, Shandong, China;
b. Assets Management Division, Shandong University of Science and Technology, Qingdao 266590, Shandong, China;
c. State Key Laboratory of Multiphase Complex Systems, Institute of Process Engineering, Chinese Academy of Sciences, Beijing 100190, China
* Corresponding author. Qing Liu, E-mail: qliu@sdust.edu.cn, sdsslq@163.com;
Jing Yang, E-mail: kdyangjing@163.com
Foundation item: This work was supported by the National Natural Science Foundation of China (21606146), Natural Science Foundation of Shandong Province (ZR2016BB17, 2016ZRB01037), Scientific Research Foundation of Shandong University of Science and Technology for Recruited Talents (2016RCJJ005, 2016RCJJ006), Government Sponsored Visiting Scholar Foundation of Shandong University of Science and Technology (2016), Qingdao Postdoctoral Applied Research Project (2015202), and China National Coal Association Science and Technology Research Program (MTKJ2016-266)
Abstract: We report Ni/LaHA@ZrO2 catalysts prepared by a facile modified successive adsorption and reaction method for CO methanation. N2 adsorption, X-ray diffraction, transmission electron microscopy, scanning electron microscopy, thermogravimetric analysis, H2 temperature-programmed reduction, H2 temperature-programmed desorption, X-ray photoelectron spectroscopy, thermogravimetric analysis, and inductively coupled plasma atomic emission spectrometry were used to characterize the samples. The results indicated that the ZrO2 nanoparticles were distributed over the surface of the Ni/LaHA@ZrO2 catalyst and even partially covered some Ni particles, resulting in the coating exerting a confinement effect. The excess ZrO2 had an adverse effect on the enhancement of CO conversion because of the coverage of the surface Ni particles; however, the Ni/LaHA@ZrO2 catalyst displayed much higher CH4 selectivity than Ni/LaHA because of the activation of the byproduct CO2 molecules by ZrO2 species. Therefore, even though 20Ni/LaHA@ZrO2-5 exhibited similar CO conversion as 20Ni/LaHA, the use of the former resulted in a higher CH4 yield than the use of the latter. A 107-h-lifetime test revealed that the Ni/LaHA@ZrO2 catalyst was highly stable with superior anti-sintering and anti-coking properties because of its coating structure and the promoter effect of ZrO2.
© 2018, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: Lanthanum hexaaluminate    ZrO2    Nickel catalyst    Coating structure    CO methanation
氧化锆改性的Ni/LaAl11O18用于CO甲烷化反应:催化剂结构对催化性能的影响
艾红梅a,b, 杨洪远a, 刘庆a, 赵国明a, 杨静a, 古芳娜c
a. 山东科技大学化学与环境工程学院低碳能源化工实验室, 山东青岛 266590;
b. 山东科技大学资产管理处, 山东青岛 266590;
c. 中国科学院过程工程研究所多相复杂系统国家重点实验室, 北京 100190
摘要:对于煤制天然气,CO甲烷化技术起着重要作用,其研究核心之一是高效催化剂的开发.目前,CO甲烷化催化剂主要采用金属Ni作为活性组分,但存在高温易烧结和易积炭等问题.因此,如何使其同时具有较高的催化活性和高温稳定性是亟待解决的问题.针对这些问题,本文以高热稳定性的六铝酸镧(LaAl11O18)为载体,采用浸渍法担载金属镍,制备了Ni/LaAl11O18催化剂;以高化学惰性的ZrO2为包覆层,采用改进的连续吸附反应法,将ZrO2前驱体液相沉积在Ni/LaAl11O18表面进行改性,制备了具有包覆结构的Ni/LaAl11O18@ZrO2甲烷化催化剂.探讨了ZrO2在Ni/LaAl11O18表面的分布形式以及不同沉积包覆量对催化剂结构、CO甲烷化催化剂活性和稳定性的影响.分别采用氮气物理吸附、X射线衍射、透射电镜、扫描电镜、氢气程序升温还原、氢气程序升温脱附、X射线光电子能谱、热重分析和电感耦合等离子体原子发射光谱法等手段对催化剂进行了系统表征.结果表明,ZrO2纳米粒子能够同时分布在催化剂活性组分和载体表面,增加了金属-载体间相互作用力,高温还原时可以有效抑制活性金属Ni的烧结,成功构筑了具有显著限域结构的包覆型催化剂.同时,ZrO2的包覆不利于金属的氢气化学吸附.在常压,260-600 ℃和120 L g-1 h-1条件下对催化剂进行了催化活性测试.结果显示,与未改性的催化剂相比,包覆后催化剂上CO转化率略有降低,但是其CH4选择性明显提高,适量的ZrO2包覆对CH4得率有较好的促进作用,但是过量的ZrO2包覆会因占据过多的金属镍表面使得CO转化率显著降低.在常压,550 ℃和120 L g-1 h-1空速的操作条件下所进行的107 h稳定性测试结果表明,包覆型Ni/LaAl11O18@ZrO2催化剂展示了良好的高温稳定性,具有优异的抗烧结和抗积碳性能.这主要是因为包覆型催化剂具有良好的"限域"效应,从而显著改善了催化剂的抗烧结性能;同时较强的金属-载体相互作用以及ZrO2助剂对CO2的活化提升了催化剂的消碳能力,增强了Ni/LaAl11O18@ZrO2催化剂的抗积碳能力.总之,本文构筑了一种高稳定性的包覆型催化剂Ni/LaAl11O18@ZrO2,可广泛应用到其他多种高温反应中.
关键词六铝酸镧    ZrO2    镍催化剂    包覆结构    CO甲烷化

1 Introduction

The CO methanation reaction from syngas has attracted intensive attention from both academia and industry, especially in coal-rich regions and countries such as China [1-4]. This reaction is strongly exothermic and thermodynamically feasible (CO + 3H2 → CH4 + H2O, ΔH298 K =-206.1 kJ mol-1), leading to high demand for methanation catalysts. Ideal catalysts should be highly active at low temperatures (~300 ℃) and highly stable at high temperatures (~600 ℃). Some transition metals such as Ru, Rh, Pt, Ni, Fe, and Co have been used in the methanation reaction [5-9]. Among them, Ru-based catalysts are the most active; however, the limited resources and high cost of Ru restrict the large-scale industrial application of these catalysts [10]. In addition, both the activity and CH4 selectivity of Fe-and Co-based catalysts are still relatively low [4]. Hence, Ni is the most favorable choice for CO methanation because of its relatively high activity and low cost [11]. Moreover, many supports such as Al2O3 [11], SiO2 [12], SiC [13], TiO2 [14], and ZrO2 [15] have been investigated for Ni catalysts; however, these catalysts often suffer from Ni sintering and coke formation on the surface of the Ni particles during the methanation process. Therefore, considering that the methanation process is generally performed at high temperatures (≥ 400 ℃) [1, 3, 16], together with its strongly exothermic nature, the control of the thermally induced sintering of Ni particles and supports as well as coke formation is critical for maintaining the catalyst activity.

Hexaaluminate (HA) materials are highly stable at high temperatures because of their unique layered structure of alternately stacked spinel blocks separated by mirror planes [5, 17] and have been used as catalysts or catalyst supports for high-temperature reactions such as methane catalytic combustion [18, 19], methane reforming reaction [20], and CO methanation [5, 17]. In addition, the rare-earth oxide La2O3 has been widely used as an excellent promoter for various catalysts because of its unique properties, such as neutralization of acid sites [21], stabilization of the support [22-24], enhancement of the catalytic performance [25], and suppression of carbon deposition by activating adsorbed H2O and CO2 [26, 27]. Lanthanum hexaaluminate (LaAl11O18)-supported Ni catalysts are thus expected to be promising CO methanation catalysts.

To prevent both the sintering of Ni particles and coke formation, several strategies have been employed in the literature, such as the addition of an inorganic oxide via atomic layer deposition [28, 29], encapsulation using the precipitation– deposition method [11], or the use of core–shell [30, 31], core–sheath [32], or ordered mesoporous structures [33, 34]. Although partial success has been achieved, these approaches still have drawbacks, such as poor control of the shell thickness [30], the need for special equipment [28], costly raw materials [33], and complicated and harsh preparation processes [30], which limit their wide and large-scale applications. Recently, we prepared ZrO2-modified Ni/α-Al2O3 catalysts using a facile modified impregnation method for CO methanation with the construction of a ZrO2-on-metallic Ni surface coating structure, yielding significant enhancement of the catalytic activity and anti-sintering of Ni particles [35]. However, the anti-coking property was poor and thus required further improvement.

Following our previous works on catalysis [6, 35-40], in this work, ZrO2-modified Ni/LaAl11O18 catalysts were prepared using a modified successive adsorption and reaction method to overcome the technical barriers of sintering and coking. To the best of our knowledge, no reports on this type of CO methanation reaction route are available in the literature. To better understand the effect of the catalyst structure on the catalytic activity and stability, a series of tests and characterizations were performed. The results revealed that the coating of ZrO2 nanoparticles over the Ni/LaAl11O18 catalyst could suppress both Ni sintering and coke formation.

2 Experimental
2.1 Catalyst preparation
2.1.1 Preparation of LaHA support

The LaHA support was prepared using a coprecipitation method with carbon black as the hard template, similar to a method previously described in the literature [17]. First, 0.165 mol Al(NO3)3·9H2O and 0.015 mol La(NO3)2·6H2O were dissolved in 300 mL of deionized water at 60 ℃; then, 10 g carbon black was added, and the mixture was stirred for 5 h to obtain a precursor slurry. Next, a (NH4)2CO3 aqueous solution (3 mol L-1) was heated to 60 ℃ and added to the above precursor slurry while controlling the pH at approximately 8.0. After vigorous stirring for 4 h, the mixture was filtered and dried at 100 ℃. The calcination process was divided into two parts. First, the mixture was calcined in an Ar flow at 1350 ℃ for 12 h at a heating rate of 5 ℃ min–1. During this process, the inclusion of carbon black prevented the agglomeration of LaHA particles at high temperature. Second, the carbon black was removed in air at 900 ℃ for 3 h to obtain the LaHA support.

2.1.2 Preparation of 20Ni/LaHA catalyst

The 20Ni/LaHA catalyst was prepared using the wet impregnation method [11]. Stoichiometric amounts of polyethylene glycol (average MW = 20000) and Ni(NO3)2·6H2O were dissolved in deionized water, followed by the addition of LaHA powder; then, the slurry was vigorously stirred at room temperature overnight. During this process, polyethylene glycol was used as the dispersant for Ni2+ ions in the aqueous solution, with a mass ratio of polyethylene glycol:Ni(NO3)2·6H2O of 1:10. After evaporation of the solvent at 80 ℃, the mixture was calcined at 350 ℃ for 2 h in air to obtain the 20Ni/LaHA catalyst with a NiO loading of 20 wt%.

2.1.3 Preparation of ZrO2-modified 20Ni/LaHA catalyst

The ZrO2-modified 20Ni/LaHA catalyst (20Ni/LaHA@ZrO2) was prepared using a modified successive adsorption and reaction method [35, 41]. First, 0.05 mol L-1 zirconium n-butoxide (Zr(OBu)4) anhydrous toluene solution and 0.1 mol L-1 ethanol aqueous solution were prepared. For each cycle, the milled 20Ni/LaHA (1.00 g) was first spread into a thin layer in a sand core funnel and immersed in a Zr(OBu)4) anhydrous toluene solution (5 mL, 0.05 mol L-1) for 1 min to allow adsorption of Zr(OBu)4 onto the surface of 20Ni/LaHA. After being filtrated and washed twice with anhydrous toluene, the powder was dried at 150 ℃ for 10 min. Then, 5 mL ethanol aqueous solution (0.1 mol L-1) was added sequentially, and the powder was immersed in the solution for 1 min. During this process, the pre-adsorbed Zr(OBu)4 on the surface of 20Ni/LaHA could react with H2O to form the desired ZrO2 precursor. The powder was then filtrated and dried at 150 ℃ in an oven. To obtain the desired amount of ZrO2, the above modification cycle could be repeated several times (Fig. 1). Finally, to control the crystalline phase of ZrO2 [35], the obtained samples were calcined at 400 ℃ in air for 2 h and denoted as 20Ni/LaHA@ZrO2-x (x = 5 and 10), where x represents the number of cycles.

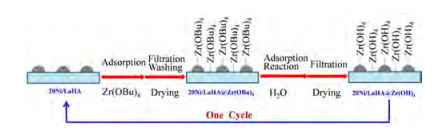

Fig. 1. Illustration of one cycle of the modified successive adsorption and reaction method used to prepare the Ni/LaHA@ZrO2 catalyst.
2.2 Catalyst characterization

A surface area and pore size analyzer (Quantachrome, NOVA 3200e) was used to determine the specific surface area and pore size distribution using the Brunauer–Emmett–Teller (BET) and Barrett–Joyner–Halenda (BJH) methods, respectively. X-ray diffraction (XRD) patterns were recorded on a PANalytical X'Pert PRO MPD using Cu Kα radiation (λ = 1.5418 Å ) at 40 kV and 40 mA. A Quantachrome chemBET pulsar TPR/TPD was used to record both H2 temperature-programmed reduction (H2-TPR) and H2 temperature-programmed desorption (H2-TPD) profiles. Transmission electron microscopy (TEM; JEM-2010F) was used to examine the morphology of the catalysts at a working voltage of 200 kV. Field-emission scanning electron microscopy (FE-SEM; JSM-6700F, JEOL, Japan) coupled with liquid-nitrogen-cooled energy-dispersive X-ray spectroscopy (EDS) was used for elemental analysis and morphological observation. The surface chemical composition was analyzed using X-ray photoelectron spectroscopy (XPS; VG ESCALAB 250, Thermo Electron, UK) with a non- monochromatized Al Kα X-ray source (1486 eV). Inductively coupled plasma atomic emission spectrometry (ICP-AES; Thermo Scientific iCAP 6300) was used to determine the exact composition of the catalysts. Finally, a Seiko Instruments EXSTAR TG/DTA 6300 was used to record the thermogravimetric (TG) analysis results.

2.3 Catalytic measurement

The CO methanation reaction was performed at atmospheric pressure in a quartz-tube fixed-bed reactor, in which a thermocouple was inserted into the furnace chamber to control the reaction temperature. The effect of mass and heat transfer were examined and eliminated before the catalytic tests. First, 0.1 g catalyst (20-40 mesh) diluted with 5.0 g quartz sand (20-40 mesh) was loaded into the quartz tube (I.D. 8 mm) and reduced at 650 ℃ in pure H2 (100 mL min–1) for 2 h. After being cooled to the starting reaction temperature (300 ℃) in H2 flow, the mixed H2 and CO as well as N2 (as an internal standard) (H2/CO/N2 = 3/1/1, mole ratio, 200 mL min–1) were introduced into the reactor at a weight hourly space velocity (WHSV) of 120 L g-1 h-1 [6, 13]. The activity test was conducted in the temperature range of 300–600 ℃ using an interval of 50 ℃. The temperature-programmed heating rate was 5 ℃ min-1, and to reach steady state, the catalyst remained at each temperature for 1 h before the product analysis (Micro GC 3000A, Agilent Technologies). The lifetime test of CO methanation was performed at 550 ℃, 0.1 MPa, and 120 L g-1 h-1. The CO conversion, CH4 selectivity, and CH4 yield were defined as follows [6]:

(1)
(2)
(3)

where Vm, in and Vm, out (m = CO or CH4) are the volume flow rates (mL s–1) of CO or CH4 at the inlet and outlet of the reactor, respectively, at standard temperature and pressure (STP).

3 Results and discussion
3.1 Catalyst characterization

Fig. 2(a) presents the N2 adsorption isotherms of the as-synthetized samples, which are Type-Ⅳ isotherms with H4 hysteresis loops. The hysteresis loops of the samples were very small because of the small pore volumes. However, the onsets of the relative pressure of the hysteresis loops of all the samples appeared at relatively high positions, indicating that macropores over 50 nm in size dominated the samples. Moreover, the PSD curves provide further evidence of the pore diameters. The PSD curves of LaHA and 20Ni/LaHA are almost horizontal lines, whereas those of the Ni/LaHA@ZrO2 catalysts are upward sloping lines. These results indicate that LaHA and 20Ni/LaHA contained hardly any pores, whereas 20Ni/LaHA@ ZrO2-5 and 20Ni/LaHA@ZrO2-10 were dominated by large pores after the addition of ZrO2 species (Fig. 2(b)). The BET specific surface areas and pore volumes of the samples are listed in Table 1. The LaHA support had a very low surface area of 4.5 m2 g-1, suggesting that it is difficult to obtain high-surface-area LaHA via the hard-template method using carbon black under severe conditions at 1350 ℃ for 12 h in Ar. Investigation of high-surface-area LaHA will be performed in our future work. In addition, after being loaded with NiO and ZrO2, the surface areas of the 20Ni/LaHA and Ni/LaHA@ZrO2-5 catalysts increased to 9.1 and 26.6 m2 g-1, respectively, because the addition of NiO and ZrO2 nanoparticles led to a much coarser LaHA support surface. However, excess ZrO2 had an adverse effect on the surface area because ZrO2 usually has a low surface area and excess ZrO2 may block some of the pores between NiO and the LaHA support [35]. The exact NiO and ZrO2 contents of the above samples were determined by ICP-AES, and the results are listed in Table 1. The real Ni loading of 20Ni/LaHA@ZrO2 was slightly less than 20 wt% because of the addition of ZrO2 to 20Ni/LaHA, and the ZrO2 loading was 3.92 and 7.31 wt% for 20Ni/LaHA@ZrO2-5 and 20Ni/LaHA@ZrO2-10, respectively. In short, the measured components of the as-synthetized catalysts were consistent with the corresponding theoretical values.

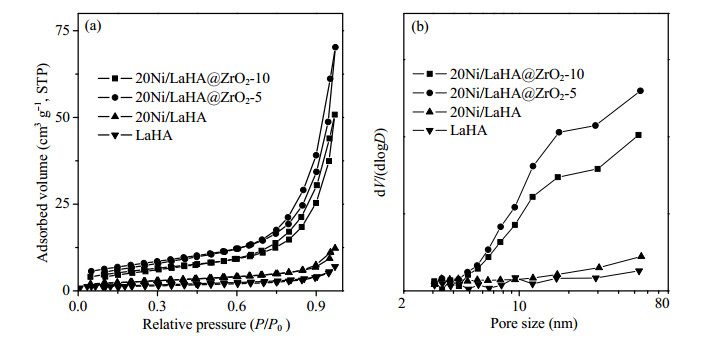

Fig. 2. N2 adsorption isotherms (a) and PSD curves (b) of as-synthetized catalysts.
Table 1
Physicochemical parameters of the samples.

Fig. 3(a) presents XRD patterns of the LaHA support and as-synthetized Ni-based catalysts. The peaks at 32.1°, 34.0°, 36.1°, 42.8°, 45.0°, 60.0°, and 67.3° correspond to (110), (112), (114), (025), (026), (0211), (220), and (116) planes of LaAl11O18 (JCPDS 00-033-0699). In addition, the two peaks at 23.4° and 48.0° correspond to (111) and (024) planes of perovskite LaAlO3 (JCPDS 01-082-0478), respectively, indicating that the as-synthetized LaHA sample contained a small amount of the LaAlO3 phase [42, 43]. As previously reported, it is difficult to obtain pure LaHA [19, 44] because the solid-state formation of LaHA by the reaction between LaAlO3 and Al2O3 is extremely slow even at high temperatures. After the NiO addition, new diffraction peaks at 43.3° and 62.8° appeared in their XRD patterns, which correspond to the (012) and (110) planes of NiO (JCPDS 00-044-1159), respectively. For the 20Ni/ LaHA@ ZrO2-x samples, weak peaks appeared at 30.1° and 50.1°, corresponding to the (111) and (202) planes of tetragonal ZrO2 (JCPDS 01-079-1767), respectively. The XRD patterns of the 650 ℃-reduced samples are presented in Fig. 3(b). The tetragonal phase of the ZrO2 species was retained after the reduction at 650 ℃ for 1 h. Meanwhile, the diffraction peak corresponding to the (111) plane of metallic Ni (JCPDS 01-070- 1849) appeared at approximately 44.6°. In addition, the Ni crystallite sizes were calculated using the Debye–Scherrer equation after peak fitting at 44.6°, and the results are presented in Table 1. Overall, the Ni particle sizes of the 20Ni/LaHA@ZrO2 catalysts were slightly smaller than that of 20Ni/LaHA because the steric hindrance of the ZrO2 nanoparticles restricted the sintering of Ni particles during the reduction process at high temperature [45].

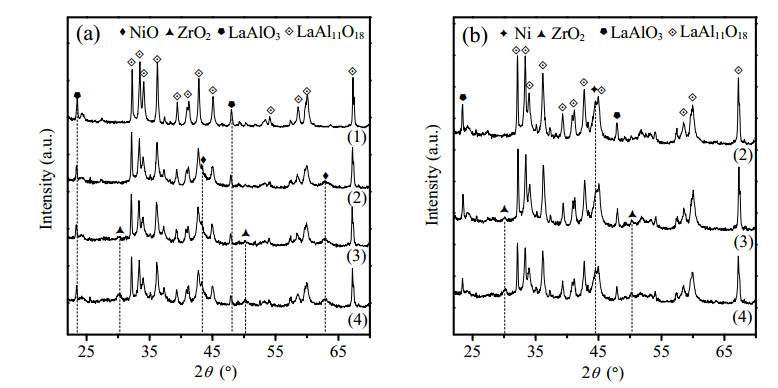

Fig. 3. XRD patterns of as-synthetized samples (a) and samples reduced at 650 ℃ (b). (1) LaHA; (2) 20Ni/LaHA; (3) 20Ni/LaHA@ZrO2-5; (4) 20Ni/LaHA@ZrO2-10.

The morphologies of the reduced catalysts are shown in Fig. 4. Overall, the LaHA support consisted of a bulk solid with a relatively smooth surface, which is consistent with the lack of pores previously observed in the N2 adsorption results. For 20Ni/LaHA, the Ni nanoparticles were dispersed over the LaHA support with an average Ni size of 12.3 nm (Fig. 4(a)). After the addition of ZrO2, lumpy ZrO2 particles were distributed on the surface of both the LaHA support and Ni species (Fig. 4(b)-(c)). For 20Ni/LaHA@ZrO2-10, the ZrO2 species even covered the dominating surface of the 20Ni/LaHA catalyst at high ZrO2 loading (Fig. 4(c)). The average Ni particle sizes of 20Ni/ LaHA@ZrO2-5 (Fig. 4(b)) and 20Ni/LaHA@ZrO2-10 (Fig. 4(c)) were 10.5 and 10.0 nm, respectively. This unique distribution of ZrO2 species was beneficial for restraining the growth and migration of Ni particles during the reduction and catalytic reaction at high temperatures.

Fig. 4. TEM and HRTEM images of reduced catalysts. (a, d) 20Ni/LaHA; (b, e) 20Ni/LaHA@ZrO2-5; (c, f) 20Ni/LaHA@ZrO2-10.

The lattice spacings of approximately 0.25, 0.28, and 0.47 nm in the HRTEM images of the reduced catalysts (Fig. 4(d)(f)) correspond to the (114), (110), and (011) planes of LaAl11O18 [46], respectively, and those of approximately 0.31 and 0.20 nm correspond to the tetragonal ZrO2 (101) plane [34, 47-49] and metallic Ni (111) plane [32], respectively. The ZrO2 species were clearly located near the Ni particles (Fig. 4(e)) and even covered the surface of metallic Ni (Fig. 4(f)), which was beneficial for improving the interaction between Ni species and the support. Combined with the N2 adsorption, XRD, and TEM characterization results, these findings indicate that the 20Ni/LaHA@ZrO2 catalysts with the coating structure were successfully synthesized using the modified successive adsorption and reaction method.

To obtain more information about the real state of the Ni and Zr species over LaHA, elemental mappings and an EDS spectrum of 20Ni/LaHA@ZrO2-10 were obtained, and the results are presented in Fig. 5. The Ni and ZrO2 components were homogeneously dispersed on the LaHA support with the majority of ZrO2 species located near Ni particles, providing a physical barrier for Ni species. In addition, some Ni species were covered by ZrO2 species.

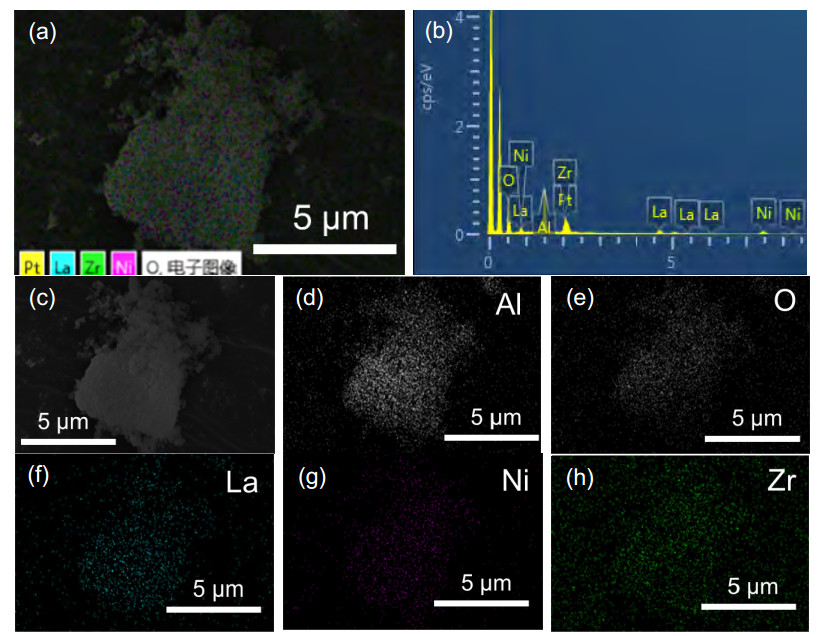

Fig. 5. EDS element layered image (a), EDS spectrum (b), SEM image (c), and elemental mapping images of Al (d), O (e), La (f), Ni (g), and Zr (h) of 20Ni/LaHA@ZrO2-10.

Fig. 6(a) presents the H2-TPR profiles of the catalysts. No obvious reduction peaks were observed over either LaHA or the pure ZrO2 (data not shown), and all the hydrogen-consuming peaks of the catalysts were attributed to the NiO reduction. A weak reduction peak at approximately 298 ℃ and a broad strong peak in the range of 323–781 ℃ are observed in the 20Ni/LaHA profile, which correspond to NiO with weak (298 ℃) or middle/strong (323–781 ℃) interactions with the support [11, 40]. After the addition of ZrO2, the weak reduction peak at low temperature (298 ℃) disappeared, and the broad one shifted to higher temperature. Therefore, higher ZrO2 loadings appear to lead to higher reduction temperatures for Ni/LaHA@ZrO2 catalysts. This result may have been observed because the NiO species were partially covered by some ZrO2 particles, resulting in significantly increased difficulty of the reduction of NiO species. However, the strong interaction between Ni species and the LaHA support is crucial for the enhanced thermal stability of Ni particles at high temperature. In addition, the H2 consumptions [6] of 20Ni/LaHA@ZrO2-5 and 20Ni/LaHA@ZrO2-10 equaled the stoichiometric amounts determined by ICP (Table 1), which indicates the complete reduction of the ZrO2-covered NiO species over 20Ni/LaHA@ZrO2-5 and 20Ni/LaHA@ZrO2-10 samples. To completely reduce the NiO species, the reduction process was performed in a H2 flow at 650 ℃ for 1 h.

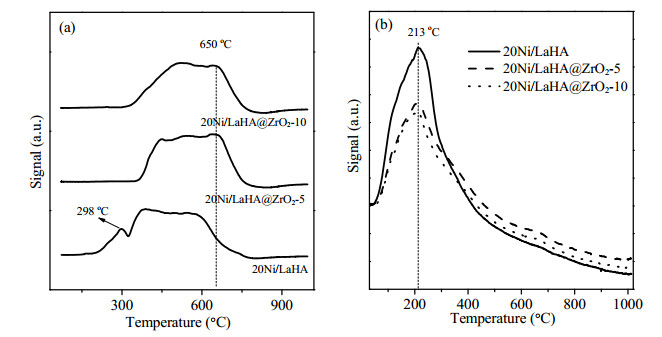

Fig. 6. H2-TPR (a) and H2-TPD (b) profiles of the samples.

The H2-TPD profiles of all the catalysts are presented in Fig. 6(b). There was a negligible H2 desorption peak over the pure ZrO2 and LaHA support (data not shown), and thus, all the hydrogen desorption peaks in the H2-TPD profiles of the catalysts could be assigned to the metallic Ni species. Overall, the H2-TPD profiles of all the catalysts were similar, with a single peak at approximately 213 ℃, which can be attributed to the chemisorbed hydrogen on the highly dispersed Ni nanoparticles [6, 39]. The intensity of the H2 desorption peak decreased with increasing ZrO2 addition, and 20Ni/LaHA@ZrO2-10 had the smallest integrated peak area among the catalysts. In addition, Table 1 lists the calculated Ni dispersion of the catalysts based on the H2-TPR and H2-TPD results. As expected, the ZrO2 coating caused a decrease of Ni dispersion, and among the catalysts, 20Ni/LaHA@ZrO2-10 exhibited the lowest Ni dispersion of 8.6%, indicating that some ZrO2 particles were distributed on the surface of Ni particles, decreasing the Ni dispersion of the catalysts. This result provides further evidence of the coverage of some exposed Ni particles by ZrO2 particles and the efficient quantity of Ni particles over the 20Ni/LaHA@ZrO2 catalysis during the CO methanation reaction.

To determine the surface chemical composition of the catalysts, XPS measurements of the as-synthetized and reduced 20Ni/LaHA@ZrO2-10 were performed, and the XPS spectra of Ni 2p, La 3d, and Zr 3d are presented in Fig. 7. In Fig. 7(a), for the as-synthetized sample, the Ni 2p peaks at approximately 855.7 and 862.0 eV correspond to Ni2+; in addition, the weak peak at approximately 852.8 eV is attributed to Ni0 resulting from the slight reduction of surface NiO species during the XPS measurement [33]. After the reduction at 650 ℃, strong Ni0 peaks appeared at 852.8 eV, suggesting the presence of metallic Ni on the surface of the reduced 20Ni/LaHA@ZrO2-10. However, the Ni2+ peaks at 855.7 and 862.0 eV were still present, originating from the rapid oxidation of Ni0 in air during the sample transfer [33]. Hence, it was difficult to determine whether the ZrO2-covered NiO species were completely reduced based on the XPS analysis. In Fig. 7(b), for the as-synthetized 20Ni/LaHA@ZrO2-10 catalyst, the peaks at 835.9 and 839.1 eV are attributed to La 3d [50], with these peaks shifting to lower energies (835.4 and 838.9 eV, respectively) for the reduced catalyst. This result indicates that La2O3 was partially reduced from La2O3 to La2Ox (x < 3) during the 650 ℃ reduction process. La2Ox can transfer partial electrons to metallic Ni, resulting in an increase in the d-electron density of the surface Ni atoms, which can promote CO dissociation on the catalyst surface, leading to a relatively high catalytic performance [40, 51]. Similarly, the peaks at 182.0 and 184.4 eV are attributed to Zr 3d over the as-synthetized 20Ni/ LaHA@ ZrO2-10, and these peaks shifted to lower energies (181.8 and 184.2 eV, respectively) after the reduction at 650 ℃ (Fig. 7(c) [52]. The shift in the XPS binding energy of Zr 3d may originate from the partial surface Zr4+ species being reduced to a lower valence state [52]. This observation indicates that the presence of a high amount of metallic Ni species promotes the reduction of the Zr oxidation state.

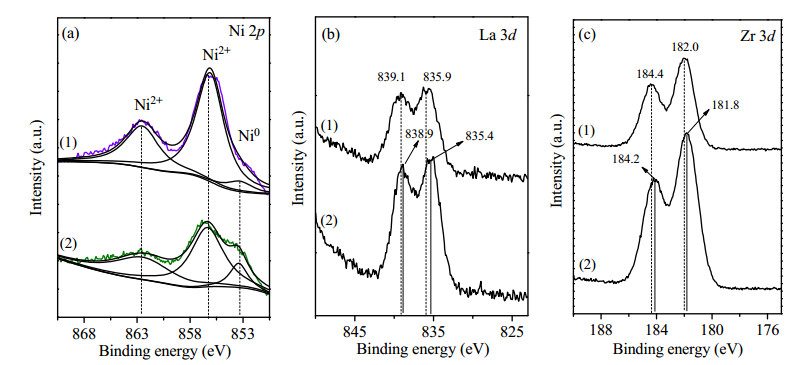

Fig. 7. Ni 2p (a), La 3d (b), and Zr 3d (c) XPS spectra of the as-synthesized (1) and reduced (2) 20Ni/LaHA@ZrO2-10 catalysts.
3.2 Catalytic activity

The catalytic activity of the catalysts for the CO methanation reaction was determined in the temperature range of 260-600 ℃ at 0.1 MPa and 120 L g-1 h-1, and the results are presented in Fig. 8. The CO conversion of all the catalysts exhibited a volcano-shaped trend with increasing reaction temperature, indicating that high temperature has an adverse effect on this reaction [3, 16]. This finding may be related to CO methanation being a strongly exothermic reaction. The 20Ni/LaHA@ZrO2-5 and 20Ni/LaHA catalysts exhibited similar CO conversion in the entire temperature range even using a WHSV of as high as 120 L g-1 h-1 at 0.1 MPa, and 20Ni/LaHA@ZrO2-10 had the lowest CO conversion. In addition, the CO thermodynamic equilibrium data calculated using the Gibbs free energy minimization method are presented in Fig. 8(a) as a reference [6]. The CO conversions on 20Ni/LaHA@ZrO2-5 and 20Ni/LaHA nearly reached equilibrium at 400 ℃ but were less than the equilibrium value at other temperatures. This result may have occurred because the WHSV was too high in this work. However, the CH4 selectivity of the catalysts had the opposite sequence compared with their CO conversion. The addition of ZrO2 improved the CH4 selectivity, with 20Ni/LaHA@ZrO2-10 exhibiting the highest selectivity. The main byproduct detected by GC was CO2 due to the side reactions such as the water–gas shift reaction (CO + H2O → CO2 + H2), CO Boudouard reaction (2CO → CO2 + C), and inverse methane CO2 reforming reaction (2CO + 2H2 → CO2 + CH4) [6]. As previously reported, ZrO2 can activate CO2 molecules to form CO and oxygen intermediates on the metallic Ni surface [34, 47, 53, 54]; thus, the addition of ZrO2 considerably improves the CH4 selectivity. The 20Ni/LaHA@ ZrO2-5 catalyst exhibited the best catalytic performance, with CO conversion and CH4 yield reaching 96% and 72%, respectively, at 400 ℃. The CO conversion and CH4 selectivity of 20Ni/LaHA@ZrO2-5 catalyst were higher than those of 20Ni/BaAl12O19 with the same NiO loading under similar operation conditions at 0.1 MPa [5]. However, excess ZrO2 was adverse for the catalytic performance, and the activity of 20Ni/LaHA@ZrO2-10 decreased with further increasing of the ZrO2 loading. Overall, the coating amount of ZrO2 is crucial for the catalytic performance, and only the appropriate amount of ZrO2 can remarkably enhance the CO methanation reaction.

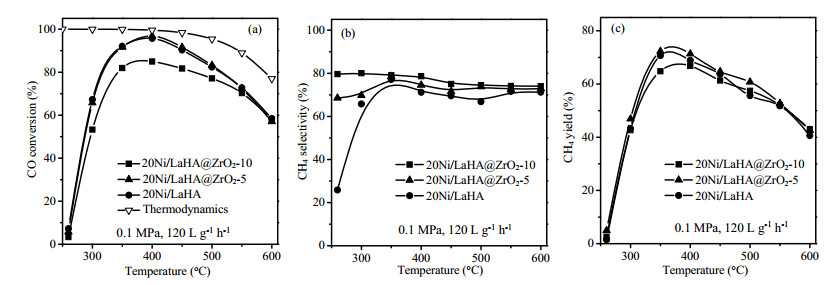

Fig. 8. Catalytic properties of the catalysts. (a) CO conversion; (b) CH4 selectivity; (c) CH4 yield.

A 107-h-lifetime test of 20Ni/LaHA@ZrO2-5 and 20Ni/LaHA was performed using the harsh conditions of 550 ℃, 120 L g–1 h–1, and 0.1 MPa, and the results are displayed in Fig. 9. The CO conversion and CH4 yield over 20Ni/LaHA decreased by 5.7% and 5.3%, respectively; however, the CH4 selectivity remained comparable with a decrease of only 1.8%. In contrast, the CO conversion and CH4 yield over 20Ni/LaHA@ZrO2-5 remained constant over the entire lifetime test. Clearly, the addition of ZrO2 to 20Ni/LaHA significantly improved its stability, especially at high temperature and WHSV.

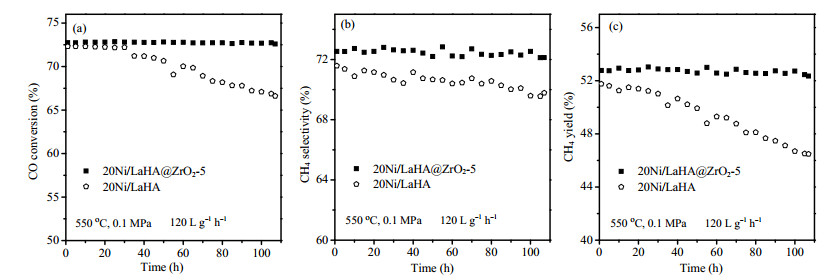

Fig. 9. Lifetime test of 20Ni/LaHA and 20Ni/LaHA@ZrO2-5. (a) CO conversion; (b) CH4 selectivity; (c) CH4 yield.

To investigate the reasons for the high stability of the 20Ni/LaHA@ZrO2-5 catalyst, both spent catalysts were characterized using TEM, XRD, and TG analysis. The average Ni nanoparticle sizes of the spent 20Ni/LaHA (Fig. 10(a)) and 20Ni/LaHA@ZrO2-5 (Fig. 10(b)) were 19.1 and 10.8 nm, respectively. Unlike that of the spent 20Ni/LaHA@ZrO2-5, the size of Ni particles over the spent 20Ni/LaHA was not uniform, and some of the particles were as large as 35.1 nm. In addition, Fig. 9(c) presents XRD patterns of the spent 20Ni/LaHA and 20Ni/LaHA@ZrO2-5 catalysts after the lifetime test. The calculated Ni particle sizes of the spent 20Ni/LaHA and 20Ni/ LaHA@ZrO2-5 were 21.1 and 10.2 nm, respectively. Compared with the aforementioned TEM (Fig. 4) and XRD (Fig. 3, Table 1) results of the reduced catalysts, the sintering of Ni particles over 20Ni/LaHA was severe, whereas 20Ni/LaHA@ZrO2-5 exhibited superior anti-sintering performance. Carbon deposition often occurs on Ni catalysts because of the CO Boudouard reaction and CH4 cracking reaction [55]; thus, the amount of carbon deposited on the spent catalysts was measured by TG analysis, and the results are presented in Fig. 9(d). The decrease of the mass loss percentage of the spent 20Ni/LaHA catalyst was larger than that of 20Ni/LaHA@ZrO2-5, indicating the higher resistance of 20Ni/LaHA@ZrO2-5 to coking formation. The coke resistance of 20Ni/LaHA@ZrO2-5 can be attributed to the following reasons (Fig. 11): (1) ZrO2 can enhance CO2 dissociation to generate oxygen intermediates, which facilitates the removal of carbon formed on the Ni particles by CO2 reduction (CO2 + C → 2CO) [35, 47] and (2) the formation of the carbon filament can be suppressed over 20Ni/LaHA@ZrO2-5 because it is difficult for carbon to lift Ni particles from the support matrix because of the confinement effect of the partial ZrO2–covered structure. In short, the sintering of Ni particles and coking led to a decrease of the activity of 20Ni/LaHA in the lifetime test, and 20Ni/LaHA@ZrO2-5 exhibited high catalytic activity and stability as well as greatly improved resistance to Ni sintering.

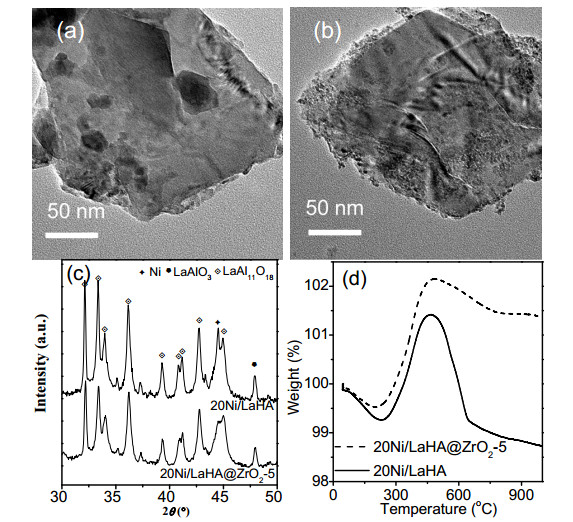

Fig. 10. TEM images of spent 20Ni/LaHA (a) and 20Ni/LaHA@ZrO2-5 (b); (c) XRD patterns of the catalysts after lifetime tests; (d) TG curves of the spent catalysts in air.

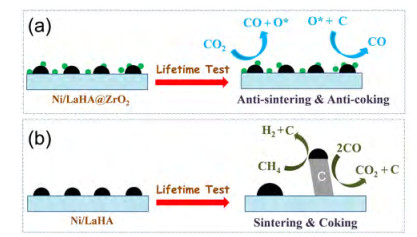

Fig. 11. Schematic diagram of effect of catalyst structure on stability. (a) 20Ni/LaHA@ZrO2; (b) 20Ni/LaHA.
4 Conclusions

We conducted a systematic investigation of Ni/LaHA@ZrO2 catalysts synthesized using a modified successive adsorption and reaction method to produce synthetic natural gas via the CO methanation reaction. After the addition of ZrO2, the ZrO2 nanoparticles were distributed over the surface of the Ni/LaHA catalyst and even partially covered some Ni particles, resulting in the coating exerting a confinement effect. The Ni/LaHA@ZrO2 catalyst with the addition of an appropriate amount of ZrO2 even exhibited slightly higher CO conversion and CH4 yield than Ni/LaHA. Moreover, the CH4 selectivity was significantly enhanced after the addition of ZrO2 because of the activation of the byproduct CO2 molecules. However, excess ZrO2 had an adverse effect on the enhancement of the catalytic activity because of the coverage of the surface Ni particles. Lifetime tests at 0.1 MPa, 550 ℃, and 120 L·g–1·h–1 revealed that the Ni/LaHA@ZrO2 catalyst was highly stable with superior anti-sintering and anti-coking properties. It is expected that the confinement structure and the promoter effect of ZrO2 species led to the high stability of the Ni/LaHA@ZrO2 catalyst.

Acknowledgments

The authors sincerely appreciate Prof. Fabing Su from Institute of Process Engineering (CAS) for his suggestion on the experiment.
