Methyl isobutyl ketone (MIBK) is one of the most widely used aliphatic ketones, and is as an excellent solvent in the paint industry and an important reagent for dewaxing mineral oils [1-3]. Traditionally, MIBK is manufactured through a three-step process including the aldol condensation of acetone to diacetone alcohol (DAA), dehydration of DAA to mesityl oxide (MO), and hydrogenation of MO to MIBK. There are common problems in this three-step process, including the intermittent operation and multiple separation and purification of intermediate species. In addition, a homogeneous acid catalyst (sulfuric acid) and base catalyst (sodium carbonate) are widely used in the process, which causes severe environmental pollution and equipment corrosion [4, 5]. Therefore, the conversion of acetone using a practical and efficient process will be highly beneficial. The one-pot synthesis strategy, allowing for different reactions to be carried out in a single vessel without complicated separation and purification between steps, is an alternative to stop-and-go syntheses and has economic and environmental benefits [6-8]. As for the one-pot synthesis of MIBK, the overall process is exothermic (ΔH = −117 kJ/mol), making this cascade process a practicable reaction in thermodynamics [9, 10]. However, the formation of DAA and MO is thermodynamically limited by unfavorable equilibria; therefore, it is vital to design a catalyst that can simultaneously drive these three steps. The development of heterogeneous multifunctional catalysts enables the one-pot tandem process to be carried out in an environmentally safe and efficient manner.

Pd and Pt, due to their excellent hydrogenation property, are commonly selected as the active metals in the one-pot synthesis of MIBK from acetone [11-15]. Therefore, studies of heterogeneous multifunctional catalysts for the tandem reaction mainly focus on designing and synthesizing suitable supports. For example, Lin et al. [16] reported a Na-modified MgO-supported Pd bifunctional catalyst that showed high acetone conversion due to the enhanced basic strength of the support. Wang et al. [17] deposited Pd nanoparticles on a chromium terephthalate MIL-101, and found that the high density and improved accessibility of acid sites (Cr³⁺) led to high selectivity towards MIBK; however, this catalyst showed poor stability, with the activity decreasing by 40% after four usages. Furthermore, Robert's study indicated that strong acid sites could promote the dehydration of DAA to MO under mild reaction conditions [18]. In recent years, more and more new materials have been used in the one-pot synthesis of MIBK from acetone, and there is agreement in the literature that the combination of multiple active sites can shift the equilibrium of the condensation step in favor of MO by the simultaneous and irreversible hydrogenation to MIBK [19-21]. However, there have been few in-depth studies on the synergistic effect of these metallic/acidic/basic sites on multifunctional catalysts on the catalytic performance in this tandem reaction, let alone research on the effect of proximity of the multi-active sites.

Layered double hydroxides (LDHs) are a family of two-dimensional (2D) anionic clay materials with the general formula [M_1–x²⁺M³⁺_x(OH)₂]^x+(A^n–)_x/n·mH₂O, where M²⁺ and M³⁺ represent metallic cations and A^n– is a charge-balancing anion [22-24]. Based on the construction principle of LDHs, the metal cations within the brucite-like layers are uniformly distributed at the atomic level, and the ratio of M²⁺/M³⁺ can be tuned in a certain range [25]. In addition, LDHs possess abundant acidic and basic sites associated with the presence of O^2–-Mⁿ⁺ acid-base pairs within the brucite-like layers [26]. Because of the uniform dispersion of M²⁺ and M³⁺ cations in the layers and the cation-tunability of LDH materials, the nature, strength and relative number of acidic/basic sites can be finely controlled. The memory effect is another important character of LDH materials; namely, LDHs can be converted to well-dispersed mixed metal oxides (MMO) by calcination at 450–600 ℃ and retain the nature of the brucite-like layers, such as highly dispersed metal cations and surface acidic/basic sites [27, 28]. The large number of adjustable acidic/basic sites on MMOs makes it a class of excellent solid acid/base catalysts. Brucite-like hydrotalcite containing Ni²⁺, Co²⁺, or Fe²⁺ and Pd/MgAl-hydrotalcites have been reported as catalyst precursors or catalysts in the synthesis of MIBK, and the effect of either the acidity or alkalinity of hydrotalcites on catalytic performance have been intensively investigated [29-32]. However, there have been few in-depth studies on the synergistic effect of acidic/basic/metallic sites on catalytic performance in the tandem reaction, especially the effect of the number and proximity of acidic/basic/metallic sites.

In this paper, Pd supported on MO_x (M = Ca, Mg, Al, Ti) and active carbon were prepared for the one-pot synthesis of MIBK to study the effect of acidity and basicity over the bifunctional catalysts on the tandem reaction. A series of multifunctional catalysts with a combination of metallic/acidic/basic active sites were designed using LDH materials. By adjusting the metal ratio within the brucite-like layers of the LDH precursor, the relationship between the catalytic property and density of acidic/basic sites was revealed. We further studied the proximity of the three active sites on the catalytic performance by a physical mixing method, and a possible mechanism was proposed to demonstrate the synergistic effect of basic/acidic/metallic sites in the one-pot synthesis of MIBK from acetone. Moreover, the obtained Pd/Mg₃Al-MMO multifunctional catalyst was optimized by using the deposition-precipitation method, followed by testing of the catalyst stability.

Analytical-grade chemical reagents including Mg(NO₃)₂·6H₂O, Al(NO₃)₃·9H₂O, TiO₂, NaCl, MgO, TiCl₄, MgO, AlOOH, Na₂SO₃·9H₂O, PdCl₂, and urea were purchased from Sigma-Aldrich and used without further purification. The water used in all the experiments was deionized and had an electrical conductivity < 10^–6 S/cm.

The Mg_xAl-LDHs (x = 1, 2, 3, 4, 5) were prepared by a hydrothermal method. For example, to prepare Mg₂Al-LDHs, 7.52 g Mg(NO₃)₂·6H₂O, 5.48 g Al(NO₃)₃·9H₂O, and 6.19 g urea (n (urea):n(NO^3–) = 1:1) were dissolved in 70 mL of deionized water, then transferred into a 100 mL autoclave and aged at 150 ℃ for 6 h. The resulting sediment was centrifuged and washed with deionized water several times until the pH reached 7. After drying at 70 ℃ overnight, the Mg₂Al-LDH precursor was obtained. LDHs with other Mg/Al ratios as well as Mg₃Ti-LDHs, MgAl_0.5Ti_0.5-LDHs, and Ca_1.5Mg_1.5Al-LDHs were prepared via the same method.

The Ca₃Ti-LDH precursor was prepared by a deposition-precipitation method. A NaOH (1.0 mol/L) and Ca(OH)₂ mixed solution was added to TiCl₄ (dissolved in diluted HCl with the volume proportion of 1:1) at constant pH = 12. The final product was filtered, washed thoroughly with deionized water, and dried overnight at 70 ℃.

Pd was deposited on various supports (MgO, Al₂O₃, TiO₂, C, Mg_xAl-LDHs, Mg₃Ti-LDHs, Ca₃Ti-LDHs, MgAl_0.5Ti_0.5-LDHs, Ca_1.5Mg_1.5Al-LDHs) using an impregnation method. Typically, 3.0 g support was suspended in 25 mL of Na₂PdCl₄ aqueous solution with 0.1% nominal Pd loading, then stirred vigorously at 80 ℃ until the water was removed by evaporation. Subsequently, the powder was dried at 80 ℃ for 5 h, followed by calcination at 450 ℃ in air for 2 h, and reduction in 10% H₂/Ar at 450 ℃ for 5 h. Pd/CaO was prepared by depositing Pd on Ca(OH)₂, calcining at 700 ℃, and then reducing at 450 ℃ for 5 h in a 10% H₂/Ar stream. The corresponding catalysts were denoted Pd/MgO, Pd/Al₂O₃, Pd/TiO₂, Pd/C, Pd/Mg_xAl-MMO, Pd/Mg₃Ti-MMO, Pd/Ca₃Ti-MMO, Pd/MgAl_0.5Ti_0.5-MMO, and Pd/Ca_1.5Mg_1.5Al-MMO. A Pd/Mg₃Al-MMO catalyst with 0.1% Pd loading was also synthesized by a deposition-precipitation method (DP). First, 3.0 g of Mg₃Al-MMO powder was mixed with 10 mL of deionized water, and then a designated amount of NaOH solution was added to the mixture to obtain a fixed pH of 12. Subsequently, a Na₂PdCl₄ aqueous solution (3.0 mL, 10.0 mmol/L) was added dropwise, and the suspension was stirred for 5 h at room temperature, followed by a centrifugation process, drying at 80 ℃ overnight, calcination at 450 ℃ in air for 2 h, and reduction in 10% H₂/Ar stream for 5 h. The obtained catalyst was denoted Pd/Mg₃Al-MMO_DP.

The specific surface area of the samples was calculated according to the Brunauer-Emmett-Teller (BET) method using a Quantachrome Autosorb-1 system. X-ray diffraction (XRD) measurements were carried out on a Rigaku UItima Ⅲ X-ray powder diffractometer (Cu K_α radiation) at a scanning rate of 10°/min. Chemical analysis was performed using inductively coupled plasma emission spectroscopy (ICP-AES, Shimadzu ICPS-75000). The morphology and particle size of the Pd particles were observed by a JEOL-2100F HRTEM.

CO₂ and NH₃ temperature-programmed desorption (TPD) of the samples was conducted on a Micrometric ChemiSorb 2750 chemisorption instrument with a thermal conductivity detector (TCD). About 0.10 g of a sample was loaded in a quartz reactor. Before CO₂-TPD and NH₃-TPD, the samples were kept in a stream of CO₂/NH₃ until the adsorption was saturated, followed by treatment with He for 30 min. CO₂/NH₃-TPD signals were recorded from 50 to 500 ℃ with a He flow rate of 40 mL/min and a temperature ramp of 10 ℃/min.

In situ diffuse reflectance Fourier transform infrared (FT-IR) spectroscopy of CO₂ was carried out via a Bruker Tensor 27 instrument. The catalyst was pretreated under N₂ flow at 100 ℃ for 1 h, followed by a background recording at a resolution of 4 cm^–1. The catalyst was then exposed to CO₂ flow for another 1 h. Sample scanning of chemisorption on the catalysts was conducted under 10^–4 mbar at room temperature.

Py-IR spectra were detected on a Thermo Nicolet FT-IR spectrometer. The solid sample was pretreated under H₂ at 450 ℃ for 1 h. The solid sample (30 mg) was then pressed into a self-supporting wafer and treated under N₂ at 200 ℃ for 1 h. The background spectrum was recorded after cooling to room temperature. Pyridine was introduced into the sample for 60 min. Finally, the spectrum was recorded with a 4 cm^–1 resolution in the range of 1675–1400 cm^–1.

The general process of the one-pot synthesis of MIBK in liquid catalyzed by the solid catalysts is as follows. The test was performed in a 25 mL stainless steel autoclave provided with a pressure gauge and a magnetic stirrer. Typically, the autoclave was charged with 0.35 g of catalyst and 10 mL of acetone. Before the reaction, the autoclave was purged three times with H₂, followed by pressurizing with H₂ to 1.8 MPa. Then, the autoclave was heated to 120 ℃ with a speed of 220 r/min. When the temperature rose to 120 ℃, the H₂ pressure increased to 2.8 MPa, and the experiment was carried out for 5 h. In summary, the reactions were all carried out in a 25 mL autoclave with 10 mL of acetone and 0.35 g of catalyst, and were kept at 120 ℃ for 5 h under 2.8 MPa H₂ atmosphere. After the reaction, the autoclave was cooled using an ice bath, and the reaction mixture was separated from the catalyst by filtering. Analysis of the liquid product was performed in a GC-FID (Agilent 7890B) with a capillary column (DB-WAX), using n-propanol as the internal standard. The carbon balance determined from the liquid products was (100 ± 2)%. The conversion of acetone, selectivity of each product, and yield of MIBK are defined as follows:

Acetone coversion = (1 ‒ mol of acetone in the product/mol of acetone in the end) × 100%

Selectivity of products = (mol of acetone converted to the product/mol of acetone reacted) × 100%

MIBK yield = acetone conversion × selectivity of MIBK.

The one-pot synthesis of MIBK from acetone is a green and economic process, including the condensation of acetone, dehydration of diacetone alcohol, and selective hydrogenation of the C=C bond. To determine the role of acidic and basic sites in the tandem reaction, supported Pd bifunctional catalysts were synthesized and then used in this process. As shown in Table 1, Pd loaded on both acidic supports (Al₂O₃ and TiO₂) and basic supports (MgO and CaO) can convert acetone to produce MIBK. However, Pd supported on active carbon, which is a common neutral carrier, is inactive. Moreover, about 30% acetone conversion was achieved by the Pd/base bifunctional catalyst, which is almost 2–3 times that of the Pd/acid catalyst, indicating that the basic sites on the catalyst favor the condensation step. IR and TPD were also used to characterize the type and strength of the acidity and basicity on these catalysts, and the results are shown in Fig. S1. For Pd/base catalysts, the adsorption of bridged carbonates in the CO₂-IR spectrum indicates that only the L-basic sites were present on Pd/CaO and Pd/MgO, and the basic strength of the Pd/CaO catalyst was stronger than that of Pd/MgO [33, 34]. As for the Pd/acid catalyst, only L-acid sites existed on Pd/Al₂O₃ and Pd/TiO₂, and the order of acid strength was Pd/TiO₂ > Pd/Al₂O₃ [35]. Although the stronger basicity results in a higher acetone conversion, the Pd/CaO catalyst showed poor selectivity to MIBK compared to that of Pd/MgO, suggesting that stronger basic sites are not good for the dehydration of DAA to produce MO. In this tandem reaction, the total selectivity to MIBK + MO indicates that dehydration of the intermediate DAA occurred. In the case of the Pd/acid bifunctional catalyst, the selectivity to MIBK + MO of the Pd/Al₂O₃ and Pd/TiO₂ catalysts was higher than that for the Pd/base bifunctional catalyst, which suggests that acidic sites are favorable for the dehydration of DAA.

From the evaluation of the bifunctional catalyst, it was found that basic sites favored the condensation of acetone and different basic strengths showed distinct dehydration abilities. Meanwhile, although the Pd/acid catalyst showed limited acetone conversion, acid sites can effectively inhibit the occurrence of side reactions. In addition, there is a significant difference in the interaction between different strengths of acid sites and Pd particles, affecting the ability of MO hydrogenation to produce MIBK. The results of the catalytic performance of Pd/acid or Pd/base bifunctional catalysts indicate that various active sites play different roles in the specific stages of the tandem reaction, and therefore, it will certainly be of interest to design multifunctional catalysts containing acidic/basic/metallic active sites and investigate the relationship between active sites and catalytic performance.

Multi-site catalysts containing acidic, basic and metallic sites were prepared by the introduction of Pd on LDH materials that possess consecutive acid and basic sites, followed by the calcination and reduction process. The obtained Pd/MMO catalysts were then used in the tandem reaction, and the results are listed in Table 2. It was found that the catalytic properties of the multifunctional catalysts were more than just a collection of active sites, and both positive and negative synergistic effects were involved. In detail, Pd/Mg₃Ti-MMO, Pd/Ca₃Ti-MMO, and Pd/Ca_1.5Mg_1.5Al-MMO containing different strengths of acidic and basic sites showed reduced acetone conversion (< 13%) and poorer selectivity to MIBK (< 76%) compared with the corresponding bifunctional catalysts. However, the Pd/Mg₃Al-MMO catalyst exhibited enhanced acetone conversion (38%) and MIBK yield (31.6%) due to a positive synergistic effect. Moreover, the yield of MIBK was significantly reduced when Ti was introduced into Mg₃Al-MMO (control of acidic sites on MMO), indicating that the tandem reaction process is sensitive to the strength and density of acidic and basic sites on the multifunctional catalysts; even a slight change in the properties of the acidic/basic sites can obviously affect the specific processes in this tandem reaction. Thus, it is indispensable to design a series of acid-base supports with a continuously adjustable density of acidic/basic sites to study the synergistic effect between the acidic sites and basic sites in detail.

Due to the properties of the LDHs, it is feasible to fine-tune the acidic/basic sites by regulating the composition of the lamellar metals. A series of Pd/Mg_xAl-MMO multifunctional catalysts with Mg/Al atomic ratios from 1:1 to 5:1 were prepared by the LDH precursor method for the investigation of the relative amounts and synergistic effect of acidic/basic sites on catalytic performance in the one-pot synthesis of MIBK from acetone. XRD analysis was used to investigate the structure of the Pd/Mg_xAl-MMO catalysts with different Mg/Al molar ratios. As shown in Fig. 1(a), it is noteworthy that no Al₂O₃ characteristic peaks were observed, indicating that alumina was present in an amorphous form [36]. The diffraction peaks of MgO (PDF#45-1946) were detected in all five catalysts, and with increasing Mg content, the intensity of the characteristic diffraction peak increased gradually. No Pd characteristic diffraction peaks were detected, possibly because of the relatively low Pd loading. The dispersion of the supported palladium on five multifunctional catalysts (Pd/Mg_xAl-MMO (x = 1, 2, 3, 4, 5)) was investigated using HRTEM. As shown in Fig. 1(b)–(f), these catalysts had a uniform size distribution between 2–6 nm without obvious aggregation. The mean diameters of the Pd/Mg_xAl-MMO (x = 1, 2, 3, 4, 5) samples were 4.3, 4.4, 4.6, 4.5, and 4.3 nm. In addition, the Pd, Mg, and Al content of the five catalysts were determined. As listed in Table 3, Mg/Al atomic mole ratios and Pd loading in the obtained catalysts roughly correspond to the feed ratio. Combined with the specific surface area results, it can be concluded that the different ratios of Mg/Al upon the Mg_xAl-MMO supports had little influence on the dispersion of the active metal.

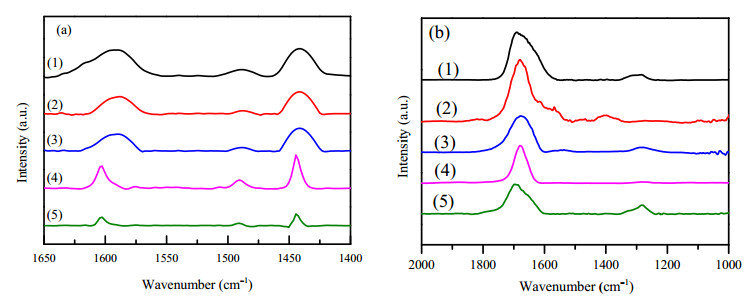

Due to the importance of the acidic and basic sites in the tandem reaction, in situ IR of pyridine and CO₂ was used to identify the types of acidic/basic sites over Pd/Mg_xAl-MMO catalysts. The FT-IR spectra of pyridine adsorption onto the samples are shown in Fig. 2(a), and it was observed that all catalysts exhibited bands at 1450 cm^–1, assigned to pyridine bound to Lewis acid sites [37, 38]. No band around 1540 cm^–1 was observed, indicating the absence of Br nsted acid sites [39]. The basicity of catalysts was determined by IR of CO₂ adsorption. Fig. 2(b) shows that the peaks of CO₂ adsorption on all catalysts' basic sites were the same, indicating the same type of surface basic sites [40]. The bridged carbonates (1690 and 1260 cm^–1) were formed on the Mg²⁺ and Mg²⁺-O^2– pairs [41, 42]. The above results show that the modulation of Mg/Al ratio has no effect on the acid/base type.

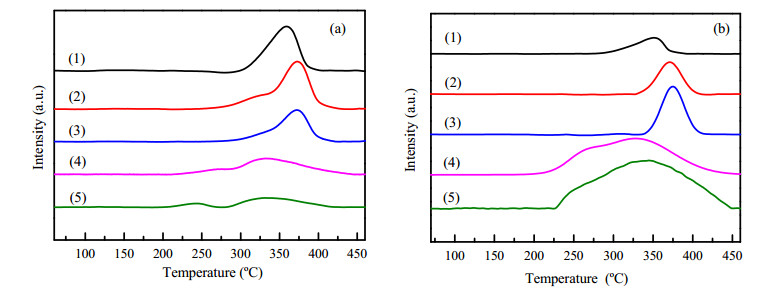

To further quantitate the number of acidic/basic sites on Pd/Mg_xAl-MMO catalysts, CO₂ and NH₃-TPD analyses were performed. In Fig. 3(a), the profile of CO₂-TPD exhibits two desorption features: a slight one between 200 to 300 ℃ and a sharp one at 370 ℃. Generally, the temperature of CO₂ desorption in the range of 200–420 ℃ reflects the absence of the medium-strong-basic sites [43, 44]. In this case, it could be assigned to the adsorption of CO₂ on Mg²⁺-O^2– acid-base pairs on the layer of MMO support [40], and with decreasing Mg content among five catalysts, the area of CO₂ desorption peak gradually decreased, suggesting that the number of basic sites declined on the surface of the given catalyst, which is consistent with the results reported in the literature [45-47]. The acidity of the catalysts was determined by NH₃-TPD. As shown in Fig. 3b, there are several overlapping peaks in the range of 225–450 ℃ on the Pd/MgAl-MMO and Pd/Mg₂Al-MMO samples, compared to the single sharp desorption peak at 350 ℃ in the three other catalysts. The Lewis acid on all the catalysts resulted from accessible Al³⁺ cations in Al³⁺-O^2–-Mg²⁺ species, which could be ascribed to the medium-strong-acid sites [48]. In contrast to the trend of basicity, the total number of acidic sites of the catalysts decreased with increasing Mg content. Furthermore, the corresponding number of acidic and basic sites were evaluated based on the peak area [49, 50], and the results show that the control of Mg/Al ratio in the LDH precursor layer can result in a continuous change of the total number of acidic and basic sites in the obtained multifunctional catalysts.

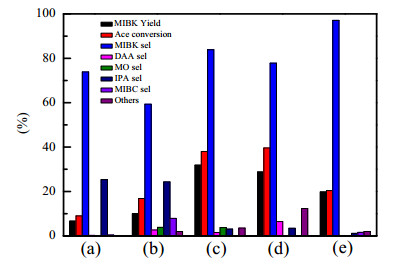

The gradually tunable basicity and acidity on the surface of Pd/Mg_xAl-MMO catalysts facilitate the further study of the synergistic effect of multi-site catalysts in the one-pot synthesis of the MIBK reaction. The catalytic performance of these five catalysts is shown in Fig. 4. For all the Pd/Mg_xAl-MMO (x = 1–5) catalysts, MIBK was the main product; however, the Mg/Al ratio had a considerable effect on acetone conversion and yield to MIBK. Specifically, with increasing Mg content in the catalysts, the selectivity of MIBK showed a rising trend overall, while the selectivity to byproduct IPA showed the opposite trend. It was found that the conversion of acetone for different Mg/Al ratios can be described as a volcano curve, and the Pd/Mg₃Al-MMO catalyst possessing a medium number of acidic and basic sites exhibited the best catalytic performance with 82.8% MIBK selectivity at 38.5% acetone conversion.

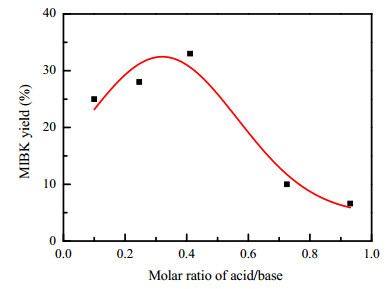

In the series of Pd/Mg_xAl-MMO multifunctional catalysts, the different Mg/Al ratios represent the change in the number of acidic/basic sites. The number of acidic sites on the catalyst decreased rapidly as the Mg content increased, while the basicity of the catalyst showed the opposite trend. Thus, we established the connection between the yield of MIBK and the molar ratio of acidic/basic sites. As shown in Fig. 5, enhanced yield of MIBK was observed with increasing Mg/Al molar ratio and reached a maximum value at the Mg/Al molar ratio of 3; the ratio of acidic/basic sites at this point was about 0.4. Thereafter, the yield of MIBK decreased sharply with the further increase of acidity over the multifunctional catalysts, which was caused by limited acetone conversion. The change of the relationship curve suggests that the number of acid/base sites has a direct and significant effect on yield of MIBK in this one-pot synthesis reaction.

In addition to the synergistic effect of the acidic and basic sites, a series of Pd/Mg₃Al-MMO catalysts with different metal loading were synthesized and tested in a one-step synthesis of MIBK from acetone to study the influence of metallic site density on the catalytic performance of the Pd/Mg₃Al-MMO multifunctional catalyst. As shown in Fig. 6, the conversion of acetone increased with Pd loading from 0.01% to 0.1%, and reached a maximum (38%) at 0.1% Pd loading. Lower acetone conversion over 0.01 wt% Pd/Mg3Al-MMO catalyst may be due to the deactivation of the oxide catalyst, which is unavoidable for aldol condensation on metal oxides [51]. However, when the density of metallic sites rose to a certain value, it was found that MIBK selectivity decreased sharply and there was an obvious increase of IPA, which is the by-product from acetone hydrogenation. It is believed that the excessive number of metallic sites lead to the redundant dissociation of hydrogen, which then directly caused the hydrogenation of acetone to produce IPA, rather than the condensation reaction to generate DAA. Therefore, the optimal amount of Pd loading on Pd/Mg₃Al-MMO multifunctional catalyst is 0.1%, and it is the equilibrium point of the acidic/basic/metallic active sites that produces the maximum yield of the MIBK.

In the tandem reaction, the performance of a multifunctional catalyst is not only affected by the nature of each site and the corresponding quantity-synergy; the proximity of the active sites has been reported to exert significant influence on catalytic property [52, 53]. Therefore, the study of multi-site proximity is of great significance for understanding and then designing an efficient multifunctional catalyst for this tandem reaction. In our case, the research on the proximity effect between acidic/basic/metallic sites was carried out by a physical mixing experiment. Increasing the distance between the active sites (e.g. one site away from the other two or three sites away from each other), poorer catalytic performance was obtained compared to the catalyst with closest proximity of active sites, as listed in Table 4. For example, the physical mixing catalyst (Pd/C+MgO+Al₂O₃), which was prepared by the loading of Pd on active carbon and physical mixing with MgO and Al₂O₃, showed the poorest acetone conversion (5.3%). Compared to Pd/C (inactive shown in Table 1), the addition of MgO and Al₂O₃ in the catalytic system facilitates the conversion of acetone (entry 1). Besides, the increased proximity of metal sites to acid sites or basic sites could double the conversion of acetone (entries 3 and 4), indicating that a small distance between active sites could truly enhance the catalytic performance of a given catalyst in this tandem reaction. Therefore, the catalyst obtained by the introduction of MgO and Al₂O₃ into the MgAl-MMO structure followed by the loading of Pd, which possessed the closest proximity among metallic sites, acidic sites, and basic sites, turned out to be the preferable one, exhibiting 38.2% acetone conversion (entry 5). The unique properties of MMO materials, particularly, the distance between acidic/basic sites at atomic level, make MMO an extremely promising material in the tandem reaction.

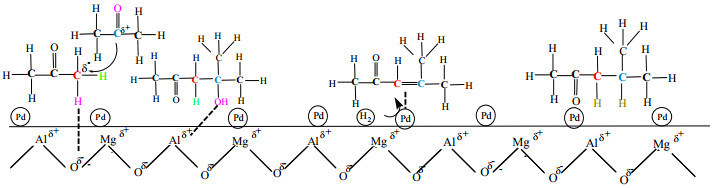

Based on the above results, a possible mechanism is proposed, which is shown in Scheme 1. In a Pd/MMO catalyst, α-H of acetone initially adsorbs on the O^δ- basic site in Al³⁺-O^2–-Mg²⁺, which can break the C-H bond and then form a carbanion intermediate [51]. Subsequently, the formed carbanion reacts with another acetone, leading to formation of DAA. The acidic site Al^δ+ from Al³⁺-O^2–-Mg²⁺ captures the O-H functional group in DAA, resulting in a dehydration reaction to create the C=C bond, followed by hydrogenation with the dissociated hydrogen that was produced at the Pd site to form MIBK. It can be seen from the reaction process that intimate and continuous active sites could facilitate the continuity of the tandem reaction. Acetone molecules are activated gradually by basic/acidic/metallic sites on the Pd/MMO multifunctional catalyst, greatly reducing the diffusion time of intermediate species from one active site to another, maximize the efficiency of the continuous reaction, resulting in high MIBK yield [54].

The synthesis method was found to greatly influence the properties and performance of a catalyst [55, 56]. Herein, Mg₃Al-MMO-supported Pd catalysts were also prepared via DP methods and the test results are listed in Table 5. Under the same conditions, 88.36% selectivity to MIBK was achieved at 42.11% acetone conversion on the Pd/Mg₃Al-MMO_DP catalyst. The yield of MIBK on the Pd/Mg₃Al-MMO_DP catalyst was 37.3%, which is 17.6% higher than that of the Pd/Mg₃Al-MMO catalyst prepared by an impregnation method. Especially, the Pd/Mg₃Al-MMO_DP multifunctional catalyst exhibits excellent performance compared to the catalysts reported to date (Table 5). The CO₂ and NH₃-TPD analyses (Fig. S2) suggest that the surface of the catalyst treated by NaOH solution in the DP method contained more acidic and basic sites compared to the catalyst treated by the impregnation method. The number of acidic and basic sites on the Pd/Mg₃Al-MMO_DP catalyst surface was 86 μmol_NH3/g and 214 μmol_CO2/g respectively, and the molar ratio of acid/base (ca. 0.4) is located at the peak of the obtained volcano curve (Fig. 5). Moreover, the obtained Pd/Mg₃Al-MMO_DP catalyst also exhibited an enhanced hydrogenation ability of MO, as shown in Table 5, which is also favorable for improved MIBK yield. Furthermore, the Pd/Mg₃Al-MMO_DP catalyst possessed fairly good stability over 4 cycling reactions (Fig. 7). Therefore, the Pd/Mg₃Al-MMO_DP multifunctional catalysts can be considered as efficient and environmentally friendly heterogeneous catalysts, showing a promising prospect in the industrial application of the one-pot synthesis of MIBK from acetone.

In this paper, we systematically studied the synergistic effect of the nature, density, and proximity of basic/acidic/metallic sites on multifunctional catalysts for the one-pot synthesis of MIBK from acetone. The catalytic performance of various Pd/acid and Pd/base bifunctional catalysts suggests that the strength of acidity and basicity on the catalysts plays a significant role in the specific steps in the tandem reaction. In addition, we found that the catalytic properties of the multifunctional catalysts were more than just a superposition of acidic and basic sites. Further research on the influence of the density of acidic/basic sites was then carried out by adjusting the ratio of Mg/Al to achieve the continuous change in the number of acidic and basic sites, and it was revealed that the maximum yield of MIBK was obtained by the multifunctional Pd/Mg₃Al-MMO with 0.1% Pd loading and 0.4 acidic/basic molar ratio. Moreover, the proximity test indicated that the intimate and continuous active sites could shorten the diffusion time of intermediate species from each active site, leading to the maximum efficiency of the tandem reaction. Notably, the optimal Pd/Mg₃Al-MMO_DP catalyst with 37.2% MIBK yield exhibited good stability over four recycling tests.
