Chinese Journal of Chromatography ›› 2026, Vol. 44 ›› Issue (6): 629-638.DOI: 10.3724/SP.J.1123.2026.01003
• Articles • Previous Articles Next Articles
YANG Renyu1,2, FENG Tingze1,2, PEI Shaojun1,2, QI Huan1,*(
), PIAO Hailong1,2,*(
)
Received:2026-01-05
Online:2026-06-08
Published:2026-06-03
Supported by:CLC Number:
YANG Renyu, FENG Tingze, PEI Shaojun, QI Huan, PIAO Hailong. Using activity-based protein profiling method to explore the antitumor targets of spiramycin derivatives[J]. Chinese Journal of Chromatography, 2026, 44(6): 629-638.
Add to citation manager EndNote|Ris|BibTeX
URL: https://www.chrom-china.com/EN/10.3724/SP.J.1123.2026.01003

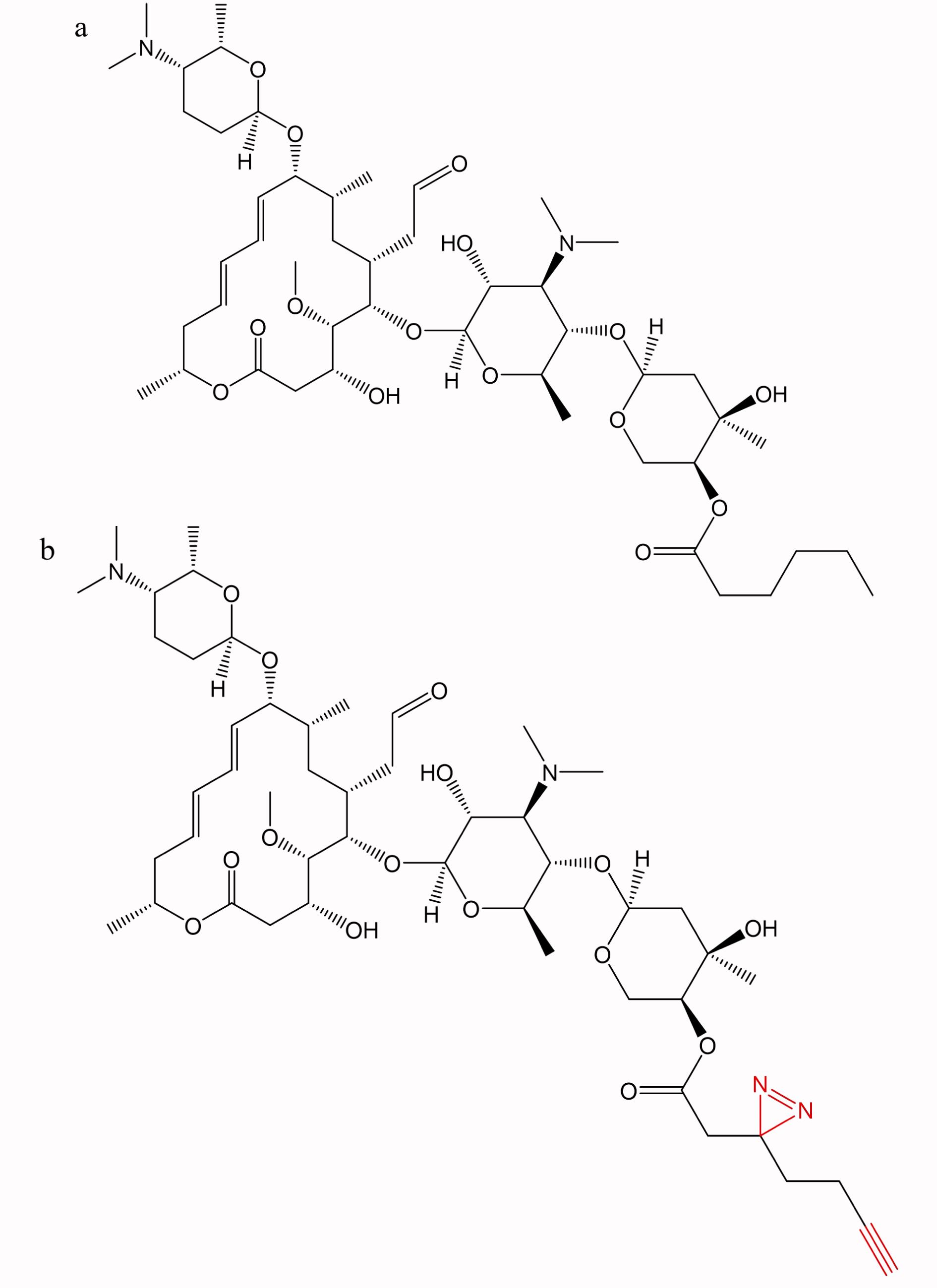

Fig. 1 Chemical structures of (a) drug n-hexanoyl spiramycin (h-SPM) and (b) probeThe structure of the probe is similar to the drug. The red part are the groups required for the click chemical reaction, which are different from the structure of the drug.

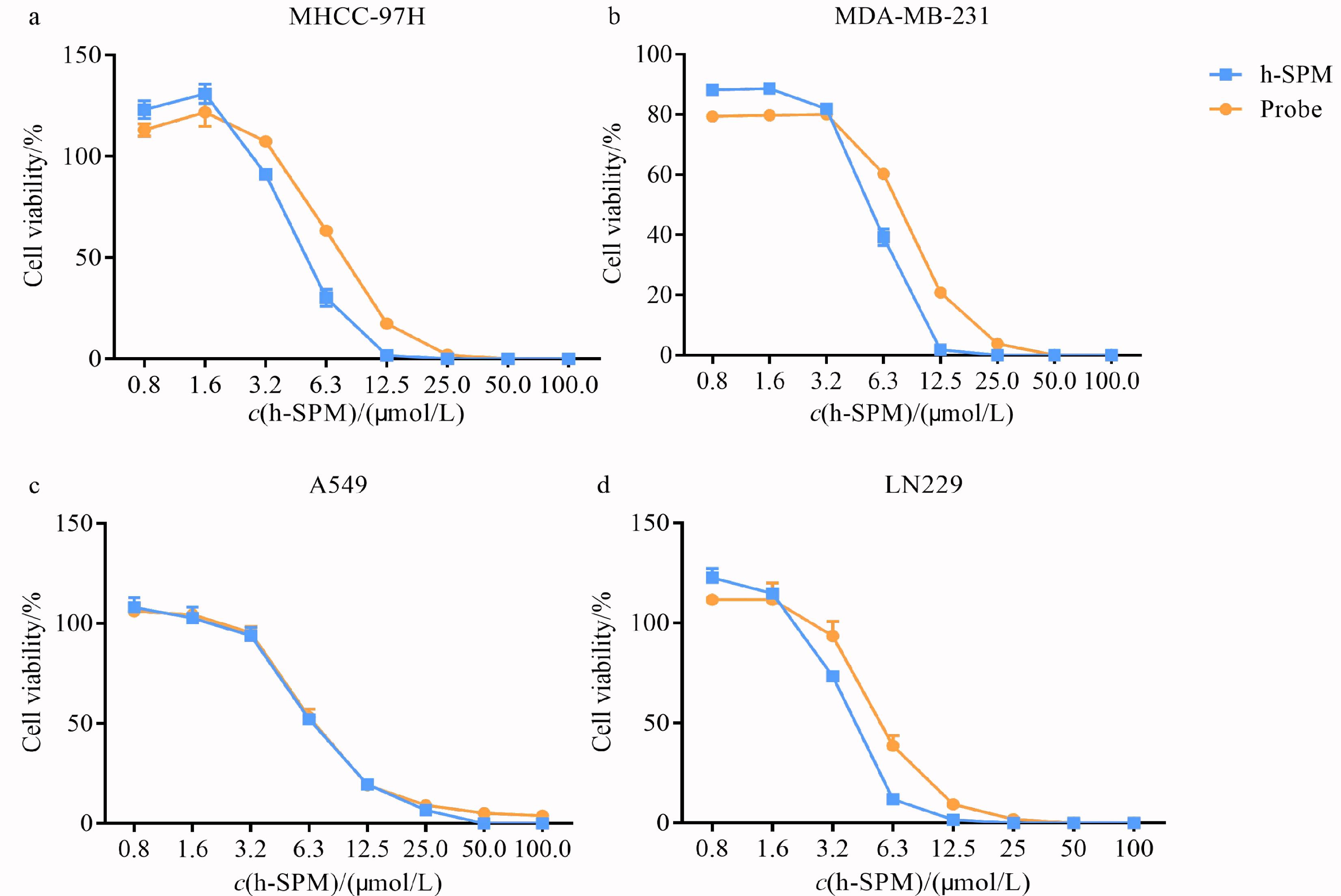

Fig. 2 Cell proliferation assay of h-SPM and probe (n=3)a. MHCC-97H; b. MDA-MB-231; c. A549; d. LN229. Four cell lines were used, and the cells were treated with h-SPM or probe at different concentrations. The survival rates were measured with CCK-8 Kit, and a series of curves showing the changes in survival rates with concentration were obtained.

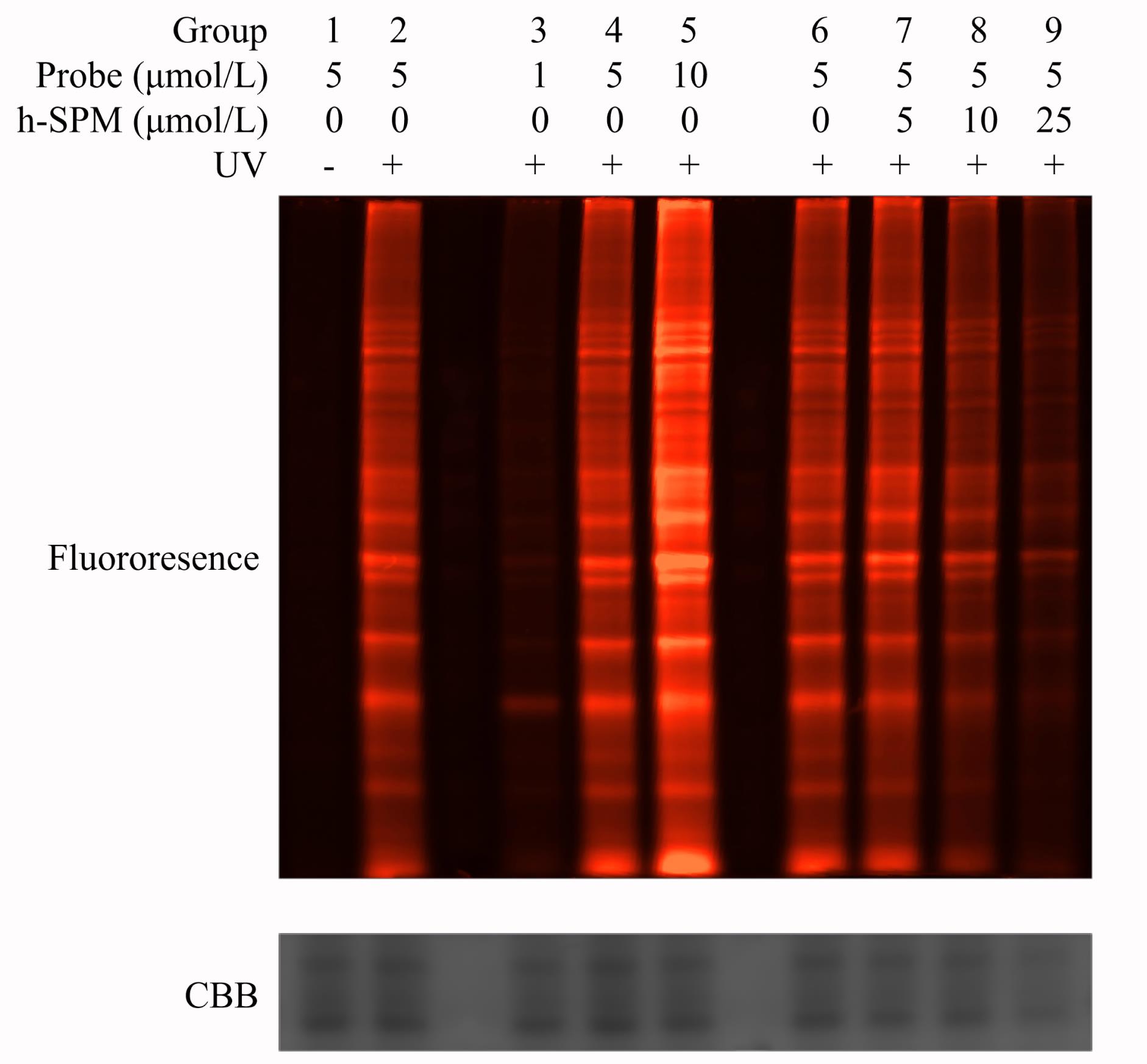

Fig. 3 Fluorescence gel imaging of the probe-labeled proteinFrom left to right, the different bands represent the experimental groups numbered 1, 2, 3, 4, 5, 6, 7, 8, and 9. The different treatments for 1 and 2 are related to ultraviolet light, for 3-5 they are treated with different concentrations of probe, and for 6-9 they are pretreated with different concentrations of h-SPM before probe treatment. The gel was stained with Coomassie Brilliant Blue (CBB) to demonstrate that the protein content of each sample was the same.
| Gene set | Description |
|---|---|
| GO:0016192 | vesicle-mediated transport |
| GO:0045321 | leukocyte activation |
| GO:0045055 | regulated exocytosis |
| GO:0002263 | cell activation involved in immune response |
| GO:0002274 | myeloid leukocyte activation |
| GO:0001775 | cell activation |
| GO:0043312 | neutrophil degranulation |
| GO:0002283 | neutrophil activation involved in immune response |
| GO:0042119 | neutrophil activation |
| GO:0002446 | neutrophil mediated immunity |
Table 1 Cellular pathways related to the Gene Ontology (GO) analysis results
| Gene set | Description |
|---|---|
| GO:0016192 | vesicle-mediated transport |
| GO:0045321 | leukocyte activation |
| GO:0045055 | regulated exocytosis |
| GO:0002263 | cell activation involved in immune response |
| GO:0002274 | myeloid leukocyte activation |
| GO:0001775 | cell activation |
| GO:0043312 | neutrophil degranulation |
| GO:0002283 | neutrophil activation involved in immune response |
| GO:0042119 | neutrophil activation |
| GO:0002446 | neutrophil mediated immunity |

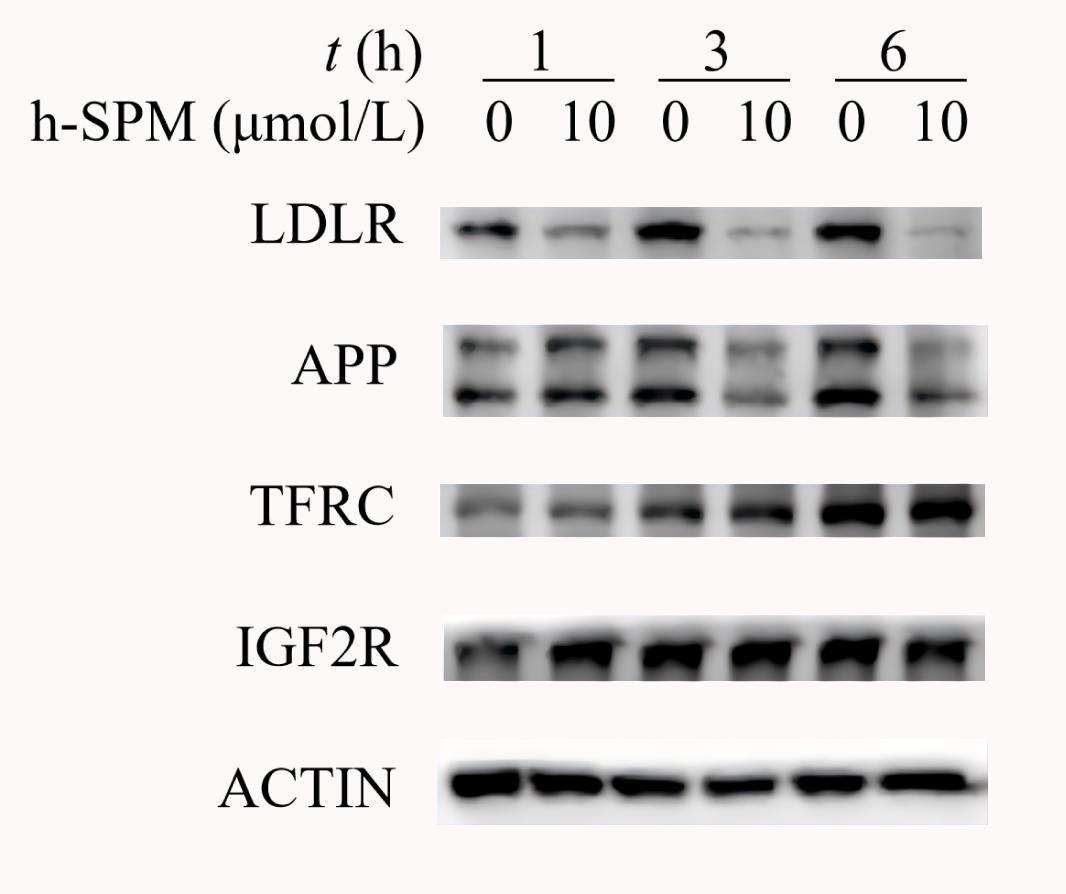

Fig. 4 Western Blotting of the potential target proteinsIn the GO analysis, proteins with the high correlation to the pathways were found: low-density lipoprotein receptor (LDLR), amyloid precursor protein (APP), transferrin receptor protein 1(TFRC) and insulin-like growth factor 2 receptor (IGF2R). In Western Blotting experiments, different doses of drugs were added at different times to observe the changes in the bands to determine which proteins were related to the drug’s effect.

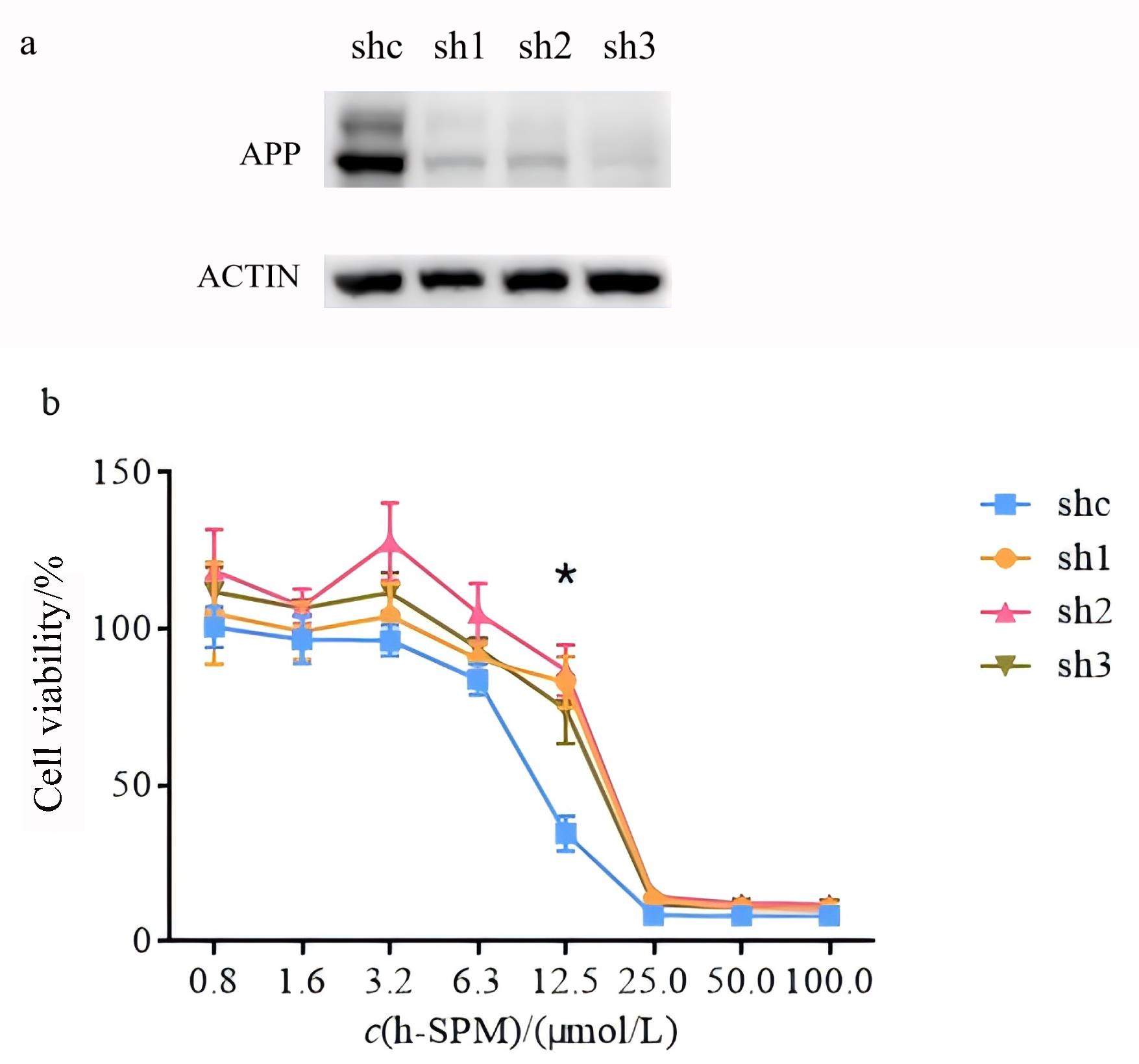

Fig. 5 Cell proliferation assay of APP knockdown cell lines by shRNA (n=3)a. APP content in four different cell lines. Four different cell lines were constructed. The shc was the blank control group for the infection of empty vector viruses, while sh1, sh2 and sh3 were cell lines with APP knockdown. b. Curve diagrams of cell viability of various cell lines to drug concentration. The four different cell lines were cultured under different concentrations of h-SPM, and performed with CCK8 assay. The sequence of shRNA: sh1: CCCTGTTCATTGTAAGCACTT; sh2: GCAGACACAGACTA-TGCAGAT; sh3: GCCATCTTTGACCGAAACGAA. * p<0.05.

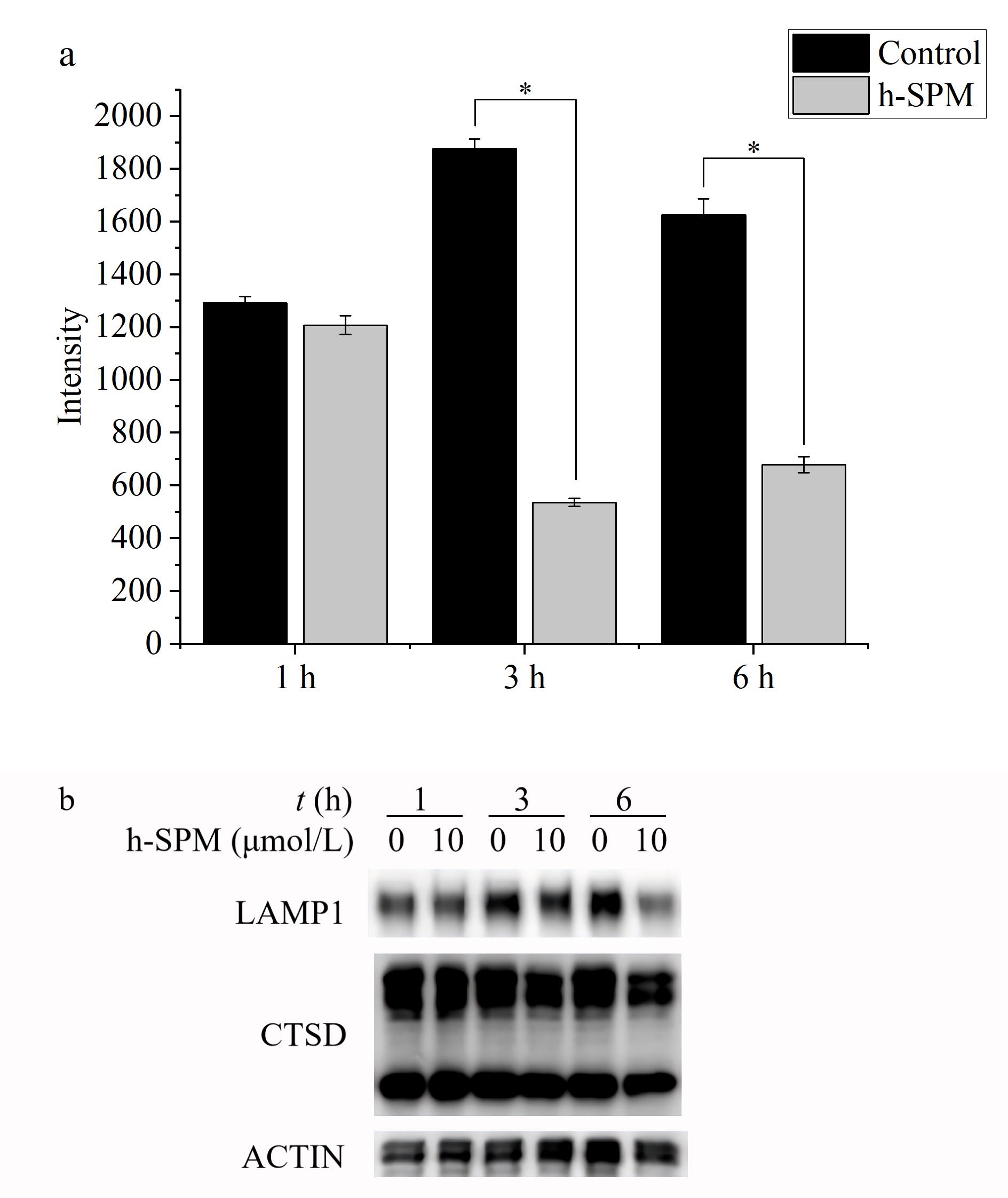

Fig. 6 Influence of drugs on cellular lysosomesa. Lysosome staining intensity. Added the lysosome fuels to the cells with and without drug addition, and cultured for different periods of time. After performing confocal imaging, quantify the photos using software to obtain the staining intensity histogram; b. Western Blotting detection of the changes of lysosome proteins lysosomal-associated membrane protein 1 (LAMP1) and cathepsin D (CTSD) after drug addition. Cultivate the cells under drug-added and non-drug-added conditions at different time points, extract the proteins from these cells for Western Blotting experiments, and obtain the results of protein changes after drug addition. ACTIN is served as a reference protein. * p<0.05.
|
