Chinese Journal of Chromatography ›› 2026, Vol. 44 ›› Issue (4): 413-421.DOI: 10.3724/SP.J.1123.2025.08001
• Articles • Previous Articles Next Articles
SUN Huijing1,*(
), ZHANG Beibei1,*(
), HUANG Mengqiao2, WANG Hui1, HU Guanjiu1, CHEN Huimin3
Received:2025-09-14
Online:2026-04-08
Published:2026-04-13
Supported by:CLC Number:
SUN Huijing, ZHANG Beibei, HUANG Mengqiao, WANG Hui, HU Guanjiu, CHEN Huimin. Determination of eight ultraviolet absorbers in surface water and wastewater by ultra performance liquid chromatography-triple quadrupole mass spectrometry[J]. Chinese Journal of Chromatography, 2026, 44(4): 413-421.
Add to citation manager EndNote|Ris|BibTeX
URL: https://www.chrom-china.com/EN/10.3724/SP.J.1123.2025.08001
| Compound | Name | Parent ion (m/z) | Daughter ion (m/z) | Declustering potential/V | Collison energy/eV | IS |
|---|---|---|---|---|---|---|
| 2-(Benzotriazol-2-yl)-4,6-ditert-butylphenol | UV-320 | 324.2 | 268.3* | 130 | 32 | UV320-d4 |
| 324.2 | 212.3 | 130 | 39 | |||
| 2,4-Ditert-butyl-6-(5-chlorobenzo-triazol-2-yl)phenol | UV-327 | 358.2 | 302.2* | 120 | 31 | UV327-d20 |
| 360.2 | 304.0 | 120 | 31 | |||
| 2-(Benzotriazol-2-yl)-4-methylphenol | UV-P | 226.0 | 120.0* | 75 | 25 | UV-P-d3 |
| 226.0 | 107.0 | 75 | 28 | |||
| 2-(5-tert-Butyl-2-hydroxyphenyl)-benzotriazole | UV-PS | 268.0 | 212.1* | 120 | 29 | UV-PS-d9 |
| 268.0 | 166.0 | 120 | 40 | |||
| 2-tert-Butyl-6-(5-chlorobenzotriazol-2-yl)-4-methylphenol | UV-326 | 316.2 | 260.1* | 137 | 28 | UV326-d3 |
| 316.2 | 154.2 | 137 | 33 | |||
| 2-(2H-Benzotriazol-2-yl)-4,6-di-tert-pentylphenol | UV-328 | 352.2 | 282.2* | 100 | 32 | UV328-d12 |
| 352.2 | 212.3 | 100 | 39 | |||
| 2-(2H-Benzotriazole-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol | UV-329 | 324.2 | 212.0* | 80 | 37 | UV329-13C6 |
| 324.2 | 57.0 | 80 | 60 | |||
| 2-(3-sec-Butyl-5-tert-butyl-2-hydroxy-phenyl)benzotriazole | UV-350 | 324.2 | 268.1* | 80 | 30 | UV350-d4 |
| 324.2 | 212.2 | 80 | 39 | |||
| UV-P-d3 | 229.2 | 121.3 | 75 | 25 | ||
| UV-327-d20 | 378.3 | 314.2 | 120 | 31 | ||
| UV-328-d12 | 364.3 | 289.3 | 100 | 32 | ||
| UV-329-13C6 | 330.2 | 218.0 | 80 | 37 | ||
| UV-326-d3 | 319.2 | 263.0 | 137 | 33 | ||
| UV-320-d4 | 328.2 | 272.3 | 130 | 32 | ||
| UV350-d4 | 328.2 | 272.3 | 80 | 30 | ||
| UV-PS-d9 | 277.0 | 214.0 | 120 | 29 |
Table 1 MS parameters for the eight ultraviolet absorbers (UVs) and internal standards
| Compound | Name | Parent ion (m/z) | Daughter ion (m/z) | Declustering potential/V | Collison energy/eV | IS |
|---|---|---|---|---|---|---|
| 2-(Benzotriazol-2-yl)-4,6-ditert-butylphenol | UV-320 | 324.2 | 268.3* | 130 | 32 | UV320-d4 |
| 324.2 | 212.3 | 130 | 39 | |||
| 2,4-Ditert-butyl-6-(5-chlorobenzo-triazol-2-yl)phenol | UV-327 | 358.2 | 302.2* | 120 | 31 | UV327-d20 |
| 360.2 | 304.0 | 120 | 31 | |||
| 2-(Benzotriazol-2-yl)-4-methylphenol | UV-P | 226.0 | 120.0* | 75 | 25 | UV-P-d3 |
| 226.0 | 107.0 | 75 | 28 | |||
| 2-(5-tert-Butyl-2-hydroxyphenyl)-benzotriazole | UV-PS | 268.0 | 212.1* | 120 | 29 | UV-PS-d9 |
| 268.0 | 166.0 | 120 | 40 | |||
| 2-tert-Butyl-6-(5-chlorobenzotriazol-2-yl)-4-methylphenol | UV-326 | 316.2 | 260.1* | 137 | 28 | UV326-d3 |
| 316.2 | 154.2 | 137 | 33 | |||
| 2-(2H-Benzotriazol-2-yl)-4,6-di-tert-pentylphenol | UV-328 | 352.2 | 282.2* | 100 | 32 | UV328-d12 |
| 352.2 | 212.3 | 100 | 39 | |||
| 2-(2H-Benzotriazole-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol | UV-329 | 324.2 | 212.0* | 80 | 37 | UV329-13C6 |
| 324.2 | 57.0 | 80 | 60 | |||
| 2-(3-sec-Butyl-5-tert-butyl-2-hydroxy-phenyl)benzotriazole | UV-350 | 324.2 | 268.1* | 80 | 30 | UV350-d4 |
| 324.2 | 212.2 | 80 | 39 | |||
| UV-P-d3 | 229.2 | 121.3 | 75 | 25 | ||
| UV-327-d20 | 378.3 | 314.2 | 120 | 31 | ||
| UV-328-d12 | 364.3 | 289.3 | 100 | 32 | ||
| UV-329-13C6 | 330.2 | 218.0 | 80 | 37 | ||
| UV-326-d3 | 319.2 | 263.0 | 137 | 33 | ||
| UV-320-d4 | 328.2 | 272.3 | 130 | 32 | ||
| UV350-d4 | 328.2 | 272.3 | 80 | 30 | ||
| UV-PS-d9 | 277.0 | 214.0 | 120 | 29 |

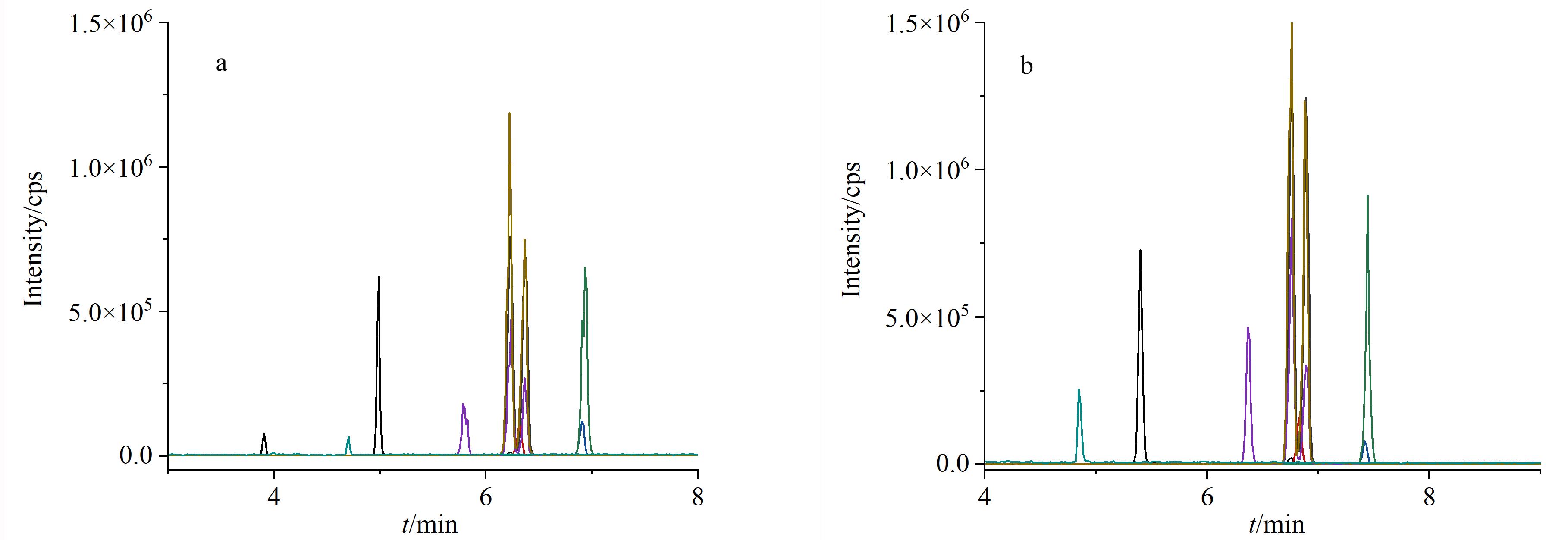

Fig. 1 Chromatograms of the eight UVs under different mobile phase conditionsa. 5 mmol/L ammonium formate in 0.1% formic acid aqueous solution-acetonitrile; b. 0.2% formic acid aqueous solution-acetonitrile.
| Compound | Regression equation | r | MDL/(ng/L) | MQL/(ng/L) | Recovery/% | RSD/% |
|---|---|---|---|---|---|---|
| UV-320 | Y=5.07×10-1X+2.55×10-2 | 0.995 | 2.8 | 11.2 | 85.5-92.0 | 4.7-7.3 |
| UV-327 | Y=3.68×10-2X+7.21×10-3 | 0.996 | 2.8 | 11.2 | 87.5-92.8 | 1.4-6.2 |
| UV-P | Y=3.72×10-2X+2.45×10-2 | 0.998 | 2.5 | 10.0 | 81.4-87.3 | 2.1-8.5 |
| UV-326 | Y=9.00×10-2X+8.86×10-3 | 0.996 | 2.2 | 8.8 | 92.4-104.0 | 6.3-9.3 |
| UV-328 | Y=3.52×10-1X-2.80×10-2 | 0.996 | 2.5 | 10.0 | 90.8-117.8 | 2.5-5.5 |
| UV-329 | Y=2.31×10-1X-7.82×10-2 | 0.997 | 1.6 | 6.4 | 82.3-98.4 | 3.1-10.5 |
| UV-PS | Y=1.52×10-1X-1.00×10-3 | 0.999 | 1.3 | 5.2 | 80.3-89.6 | 3.7-7.7 |
| UV-350 | Y=6.54×10-1X-7.856×10-2 | 0.999 | 2.5 | 10.0 | 84.4-90.8 | 4.8-5.6 |
Table 2 Regression equations, linear ranges, correlation coefficients (r), method detection limits (MDLs), method quantification limits (MQLs), recoveries and RSDs of the eight UVs (n=6)
| Compound | Regression equation | r | MDL/(ng/L) | MQL/(ng/L) | Recovery/% | RSD/% |
|---|---|---|---|---|---|---|
| UV-320 | Y=5.07×10-1X+2.55×10-2 | 0.995 | 2.8 | 11.2 | 85.5-92.0 | 4.7-7.3 |
| UV-327 | Y=3.68×10-2X+7.21×10-3 | 0.996 | 2.8 | 11.2 | 87.5-92.8 | 1.4-6.2 |
| UV-P | Y=3.72×10-2X+2.45×10-2 | 0.998 | 2.5 | 10.0 | 81.4-87.3 | 2.1-8.5 |
| UV-326 | Y=9.00×10-2X+8.86×10-3 | 0.996 | 2.2 | 8.8 | 92.4-104.0 | 6.3-9.3 |
| UV-328 | Y=3.52×10-1X-2.80×10-2 | 0.996 | 2.5 | 10.0 | 90.8-117.8 | 2.5-5.5 |
| UV-329 | Y=2.31×10-1X-7.82×10-2 | 0.997 | 1.6 | 6.4 | 82.3-98.4 | 3.1-10.5 |
| UV-PS | Y=1.52×10-1X-1.00×10-3 | 0.999 | 1.3 | 5.2 | 80.3-89.6 | 3.7-7.7 |
| UV-350 | Y=6.54×10-1X-7.856×10-2 | 0.999 | 2.5 | 10.0 | 84.4-90.8 | 4.8-5.6 |
| Compound | Matrix effects/% | |
|---|---|---|
| Surface water | Waste water | |
| UV-320 | 94.4 | 83.8 |
| UV-327 | 94.4 | 100.3 |
| UV-P | 97.8 | 106.2 |
| UV-326 | 95.7 | 107.3 |
| UV-328 | 97.6 | 99.1 |
| UV-329 | 93.7 | 90.7 |
| UV-PS | 103.4 | 95.3 |
| UV-350 | 97.5 | 88.8 |
Table 3 Matrix effects of the eight UVs (n=6)
| Compound | Matrix effects/% | |
|---|---|---|
| Surface water | Waste water | |
| UV-320 | 94.4 | 83.8 |
| UV-327 | 94.4 | 100.3 |
| UV-P | 97.8 | 106.2 |
| UV-326 | 95.7 | 107.3 |
| UV-328 | 97.6 | 99.1 |
| UV-329 | 93.7 | 90.7 |
| UV-PS | 103.4 | 95.3 |
| UV-350 | 97.5 | 88.8 |

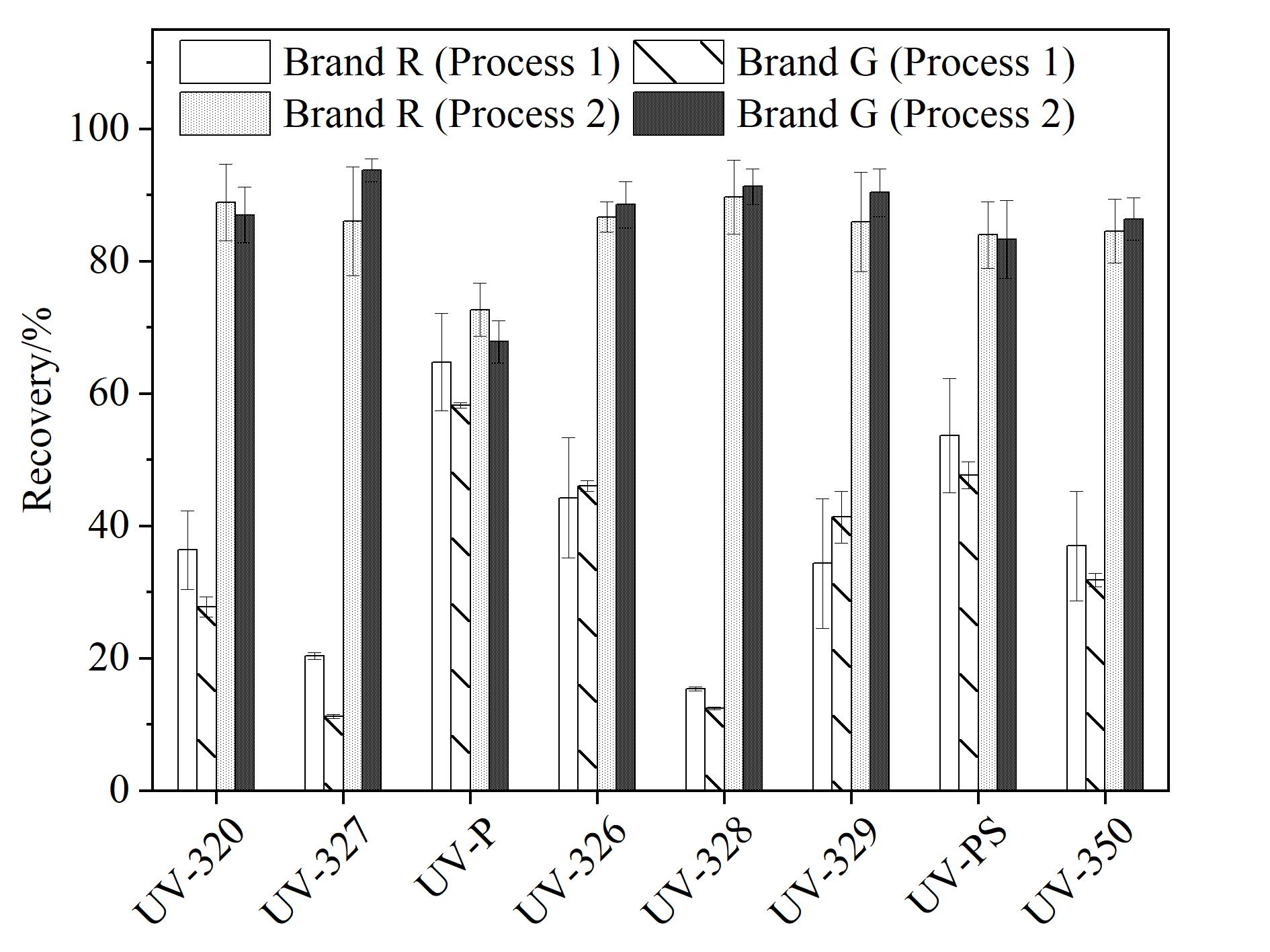

Fig. 7 Comparison of spiked recoveries under different loading processes for two SPE apparatus (n=3)Brand R (Process 1) represents recoveries obtained using Brand R manifold under Process 1; Brand G (Process 1) represents recoveries obtained using Brand G manifold under Process 1; Brand R (Process 2)represents recoveries obtained using Brand R manifold under Process 2; Brand G (Process 2) represents recoveries obtained using Brand G manifold under Process 2).
| No. | UV-320 | UV-327 | UV-P | UV-326 | UV-328 | UV-329 | UV-PS | UV-350 |
|---|---|---|---|---|---|---|---|---|
| S01 | - | - | - | - | - | - | - | - |
| S02 | - | - | - | - | - | 14.2 | - | - |
| S03 | - | - | - | 196 | - | 163 | - | - |
| S04 | - | - | - | - | 21.6 | 397 | - | - |
| S05 | - | - | - | - | - | 109 | - | - |
| S06 | - | - | - | - | - | 90.2 | - | - |
| S07 | - | - | - | - | 5.2 | 6.3 | - | - |
| S08 | - | - | - | - | - | 36.5 | - | 27 |
| S09 | - | - | - | - | 29.3 | 360 | - | - |
| S10 | - | - | - | - | - | 2190 | - | 11 |
Table 4 Contents of UV absorbers in dyeing wastewater ng/L
| No. | UV-320 | UV-327 | UV-P | UV-326 | UV-328 | UV-329 | UV-PS | UV-350 |
|---|---|---|---|---|---|---|---|---|
| S01 | - | - | - | - | - | - | - | - |
| S02 | - | - | - | - | - | 14.2 | - | - |
| S03 | - | - | - | 196 | - | 163 | - | - |
| S04 | - | - | - | - | 21.6 | 397 | - | - |
| S05 | - | - | - | - | - | 109 | - | - |
| S06 | - | - | - | - | - | 90.2 | - | - |
| S07 | - | - | - | - | 5.2 | 6.3 | - | - |
| S08 | - | - | - | - | - | 36.5 | - | 27 |
| S09 | - | - | - | - | 29.3 | 360 | - | - |
| S10 | - | - | - | - | - | 2190 | - | 11 |
|
